ENGLISH
8

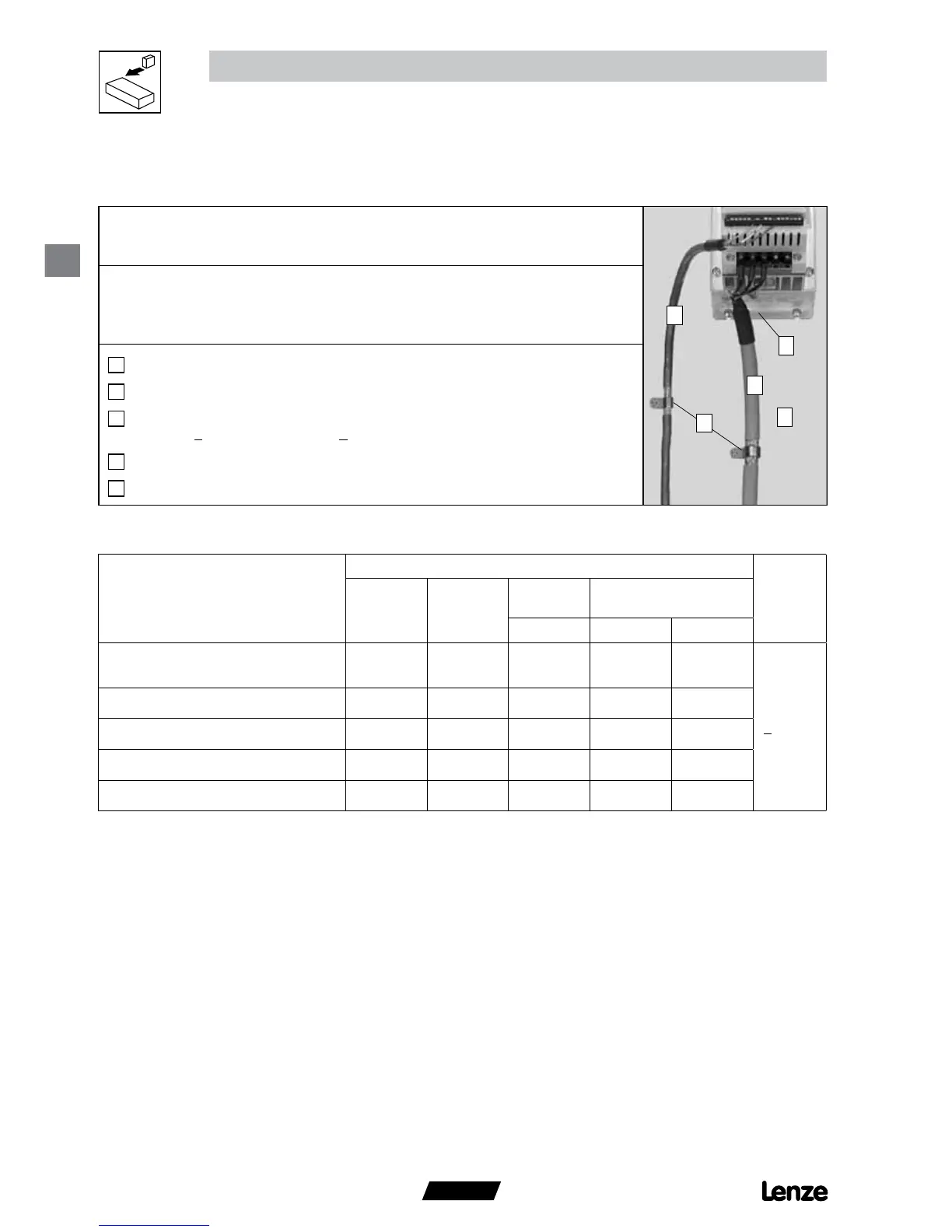

Installation
3.2 Electrical installation
3.2.1 Installation according to EMC requirements
EMC
Compliance with EN 61800-3/A11
Noise emission
Compliance with limit value class A according to EN 55011 if installed in a control
cabinet with the appropriate footprint filter and the motor cable length does not
exceed 10m
A
Screen clamps
B
Control cable
C
Low-capacitance motor cable
(core/core < 75 pF/m, core/screen < 150 pF/m)
D
Electrically conductive mounting plate
E
Filter (if required)
3.2.2 Fuses/cable cross-sections
Type
Recommendations E.l.c.b.
(2)
Fuse Miniature
circuit
breaker
(5)
Fuse
(3)
or
Breaker
(6)
Input Power Wiring
(L1, L2/N, L3, PE)
(N. America)
[mm²] [AWG]
ESMD251X2SFA … ESMD551X2SFA
ESMD371X2TXA … ESMD112X2TXA
M10 A C10 A 10 A 2.5 14
> 30 mA
ESMD152X2TXA M16 A C16 A 12 A 2.5 14
ESMD751X2SFA, ESMD222X2TXA M16 A C16 A 15 A 2.5 14
ESMD152X2SFA, ESMD302X2TXA M20 A C20 A 20 A 4
(4)
12
ESMD222X2SFA, ESMD402X2TXA M25 A C25 A 25 A 6
(4)
10
(1) Observe the applicable local regulations.
(2) Pulse-current or universal-current sensitive earth leakage circuit breaker.
(3) UL Class CC or T fast-acting current-limiting type fuses, 200,000 AIC, required. Bussman KTK-R, JJN, JJS or equivalent.
(4) Connection without end ferrules or with attached pin end connectors.
(5) Installations with high fault current due to large supply mains may require a type D circuit breaker.
(6) Thermomagnetic type breakers preferred.
Observe the following when using E.l.c.b:
• Installation of E.l.c.b only between supplying mains and controller.
• The E.l.c.b can be activated by:
- capacitive leakage currents between the cable screens during operation (especially with long,
screened motor cables)
- connecting several controllers to the mains at the same time
- RFI lters
Tmd005
B
C
D
A
E
(1)
