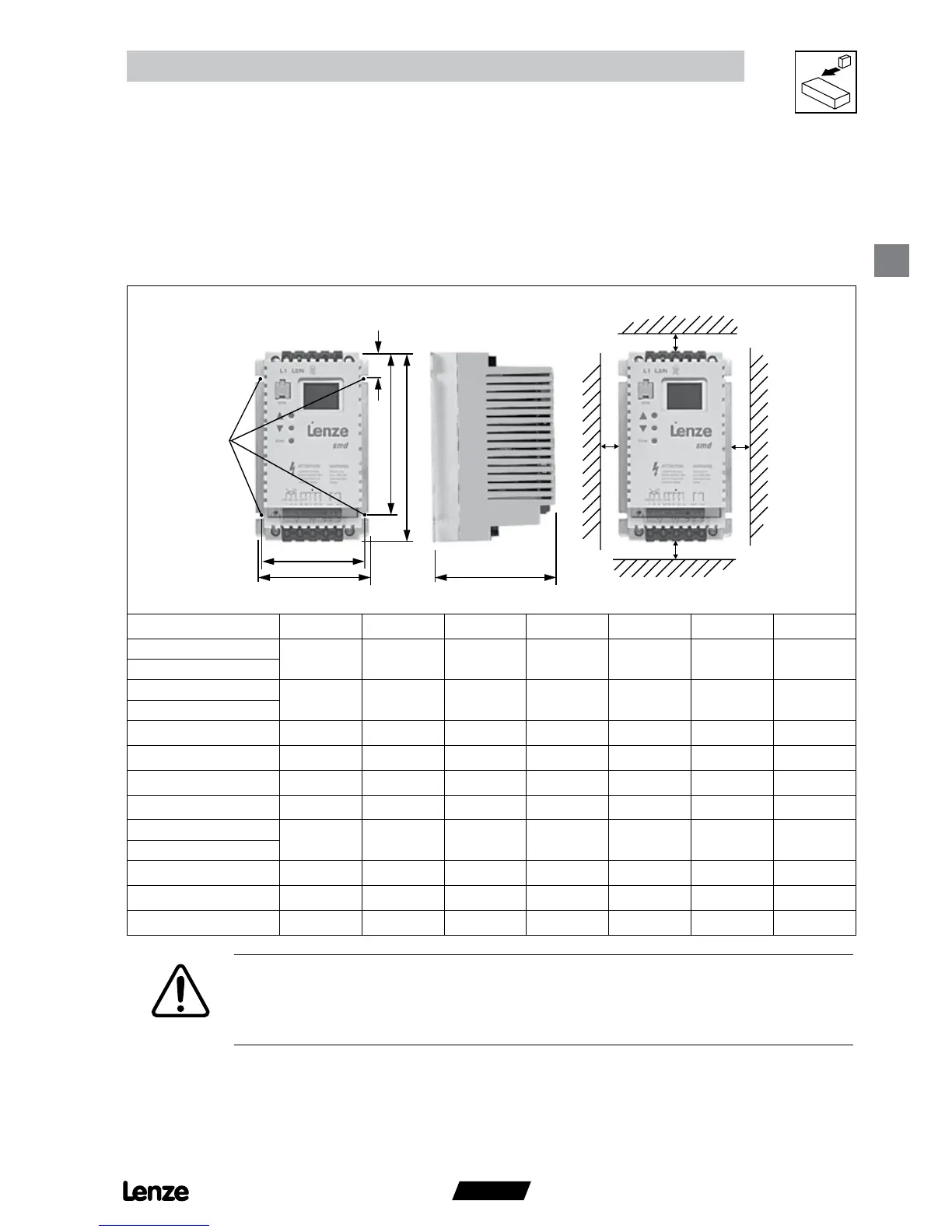

3 Installation
3.1 Mechanical installation
3.1.1 Dimensions and mounting
Type a [mm] a1 [mm] b [mm] b1 [mm] b2 [mm] c [mm] m [kg]
ESMD251X2SFA
93 84 146 128 17 83 0.5
ESMD371X2SFA
ESMD551X2SFA
93 84 146 128 17 92 0.6
ESMD751X2SFA
ESMD152X2SFA 114 105 146 128 17 124 1.2
ESMD222X2SFA 114 105 146 128 17 140 1.4
ESMD371X2TXA 93 84 146 128 17 83 0.5
ESMD751X2TXA 93 84 146 128 17 92 0.6
ESMD112X2TXA
93 84 146 128 17 141 1.2
ESMD152X2TXA
ESMD222X2TXA 114 105 146 128 17 140 1.4
ESMD302X2TXA 114 105 146 128 17 171 1.9
ESMD402X2TXA 114 105 146 100 17 171 1.7
WARNING!
Drives must not be installed where subjected to adverse environmental conditions
such as: combustible, oily, or hazardous vapors or dust; excessive moisture; excessive
vibration or excessive temperatures. Contact Lenze for more information.
