Mechanical installation
Mounting
Direction of rotation
5
23
Lenze • BA 12.0032 • 4.0
5.1.1 Direction of rotation
R
L

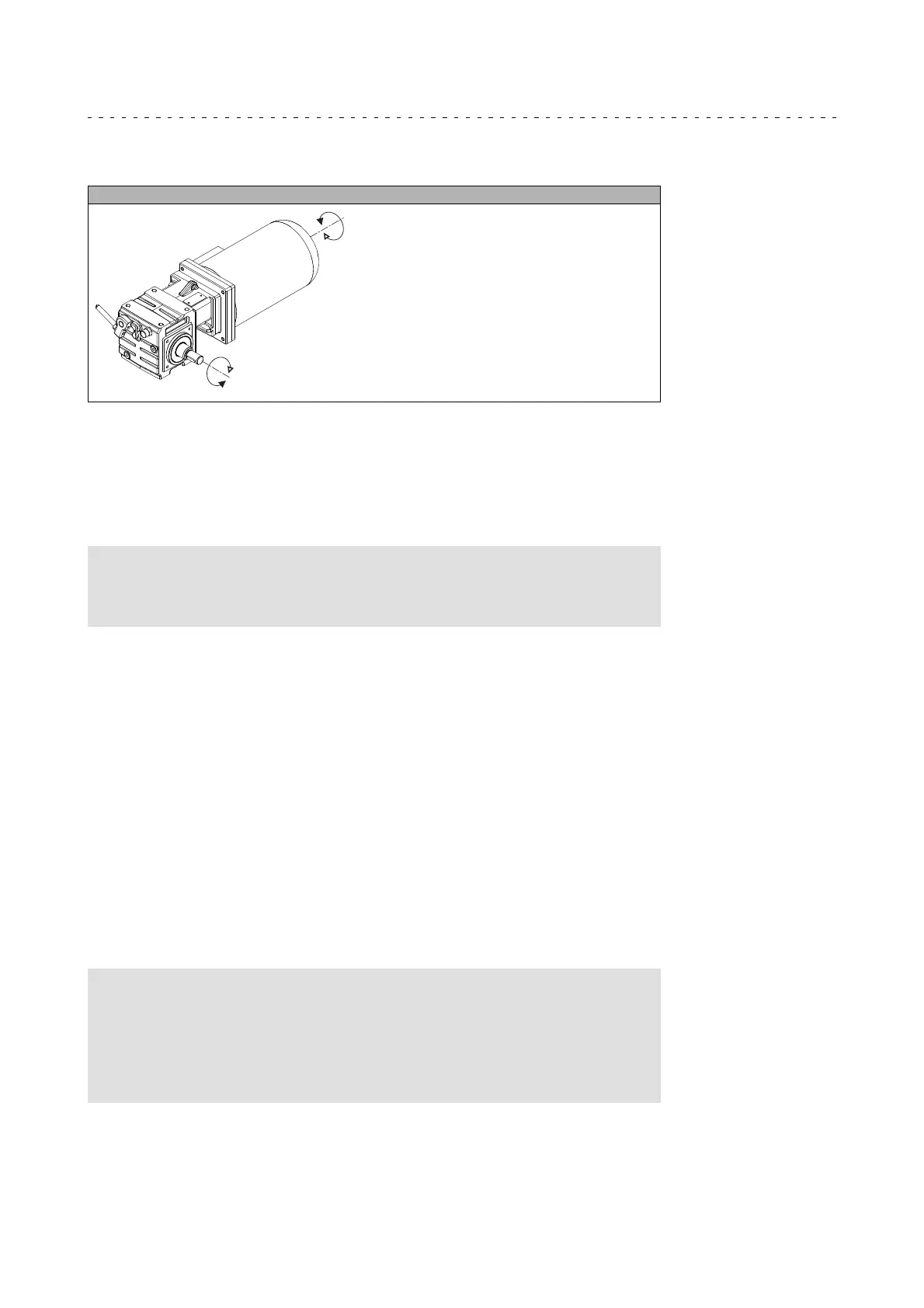

Fig. 1 Direction of rotation of the drive
5.2 Mounting
5.2.1 Preparation
Note!
Thoroughly remove anticorrosion agents from output shafts and flange
faces.
Correcting the oil quantity
If the amount of oil in the gearbox has been increased for the purpose of longtime
storage (see chapter 5.1), the oil must be drained completely and then refilled for the
mounting position provided. The following steps have to be observed:
1. Place receptacle under oil drain plug.
2. Remove breathing / oil filler plug.
3. Completely drain lubricant.
4. Screw in oil drain plug.
5. Fill in amount of oil for the mounting position provided (according to nameplate).
6. Screw in breathing / oil filler plug.
Condensation drain hole
Note!
Lenze delivers motors with condensation drain holes with sealed
condensation drain holes. The holes are sealed with a plastic plug or a
locking screw. This does not affect the type of protection and the motor is
protected against the ingress of foreign substances during transport and
operation. Further information, ( 31).
