8.2.5 Lubricant quantity
 Stop!
At drive speeds below 200 rpm the amount of lubricant may need to be
increased. Consultation with Lenze is required.

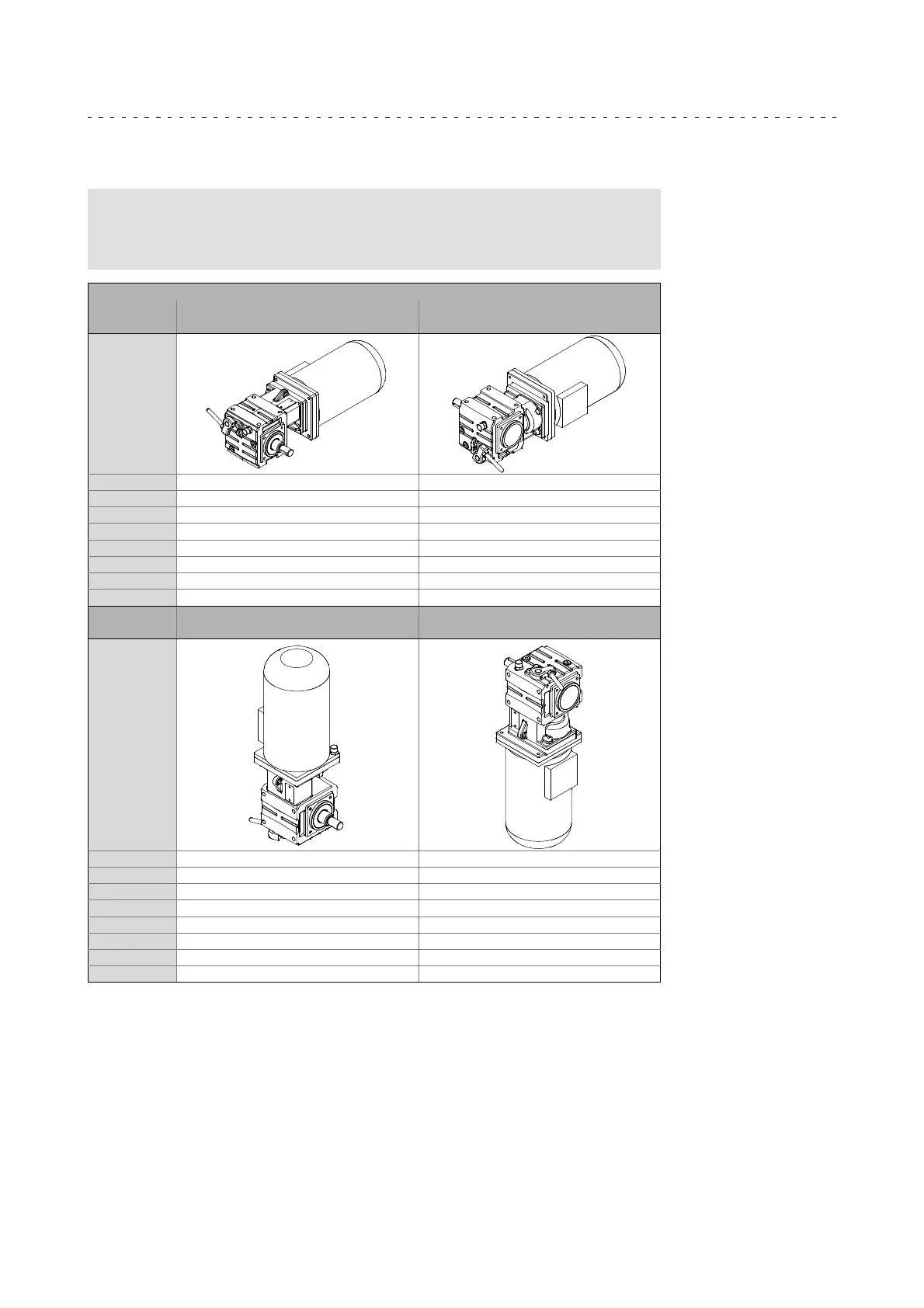

Lubricant quantities bevel gearbox GKK
Mounting
position
A B
GKK04 V_R 0.8 0.9
GKK05 V_R 1.1 1.3
GKK06 V_R 2.4 3.7
GKK06 V_L 2.5 3.9
GKK06 V_N 2.7 4.2
GKK07 V_R 3.1 5.8
GKK07 V_L 3.2 6.0
GKK07 V_N 3.4 6.3
Mounting
position
C D
GKK04 V_R 1.2 0.8
GKK05 V_R 1.8 1.2
GKK06 V_R 5.0 3.1
GKK06 V_L 5.2 3.3
GKK06 V_N 5.5 3.7
GKK07 V_R 6.2 5.0
GKK07 V_L 6.4 5.1
GKK07 V_N 6.7 5.2
Tab. 3 Lubricant quantities in litres; the
table values may differ depending on the ratio and drive design.
8.3 Repair
• We recommend having all repairs carried out by the Lenze customer service.
