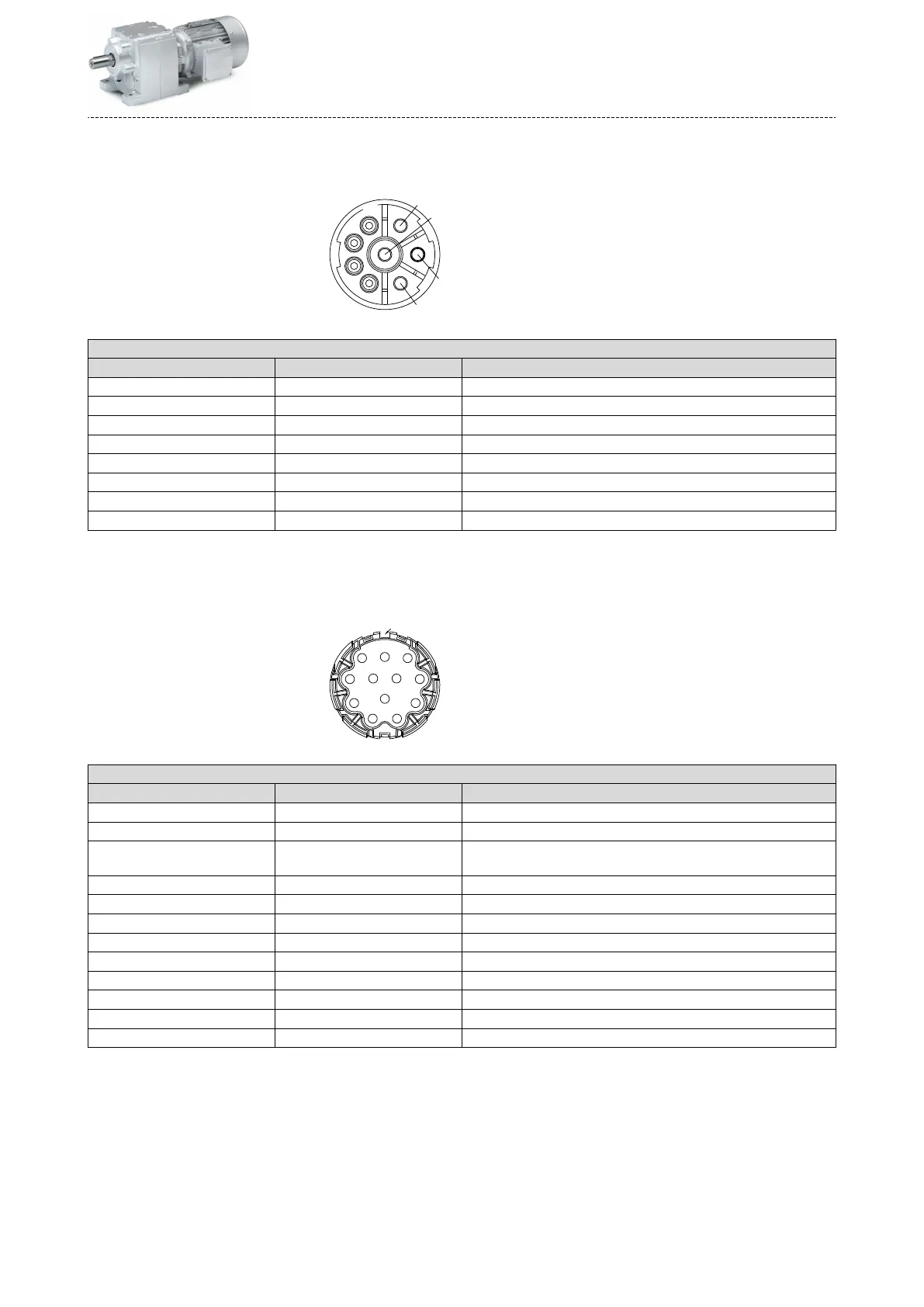

ICN-M23 connector assignment
8-pole
4
1
3
A
B
C
D
+
ICN M23 8-pole
Contact Name Meaning
1 U Power phase U
PE PE PE conductor
3 W Power phase W
4 V Power phase V
A TB1 Temperature monitoring: TCO
B TB2 Temperature monitoring: TCO
C BD1 / BA1 Brake DC +/AC ≤ 230 V
D BD2 / BA2 Brake DC-/AC ≤ 230V
Feedback and temperature monitoring connecon
ICN-M23 connector assignment
Resolver
1
2
3
4
5
6
7
8
9
10
11
12
P
Code 0°
ICN M23 for resolvers
Contact Name Meaning
1 +Ref Transformer windings
2 -Ref Transformer windings
3 +VCC ETS
Supply: Electronic nameplate (Only for motors and inverters that support
this funcon)
4 +COS Cosine stator windings
5 -COS Cosine stator windings
6 +SIN Sine stator windings
7 -SIN Sine stator windings
8 Not assigned
9 Not assigned
10 Not assigned
11 + Temperature monitoring: PT1000
12 - Temperature monitoring: PT1000
Product extensions
Motor connecon
Connecon via ICN connector
