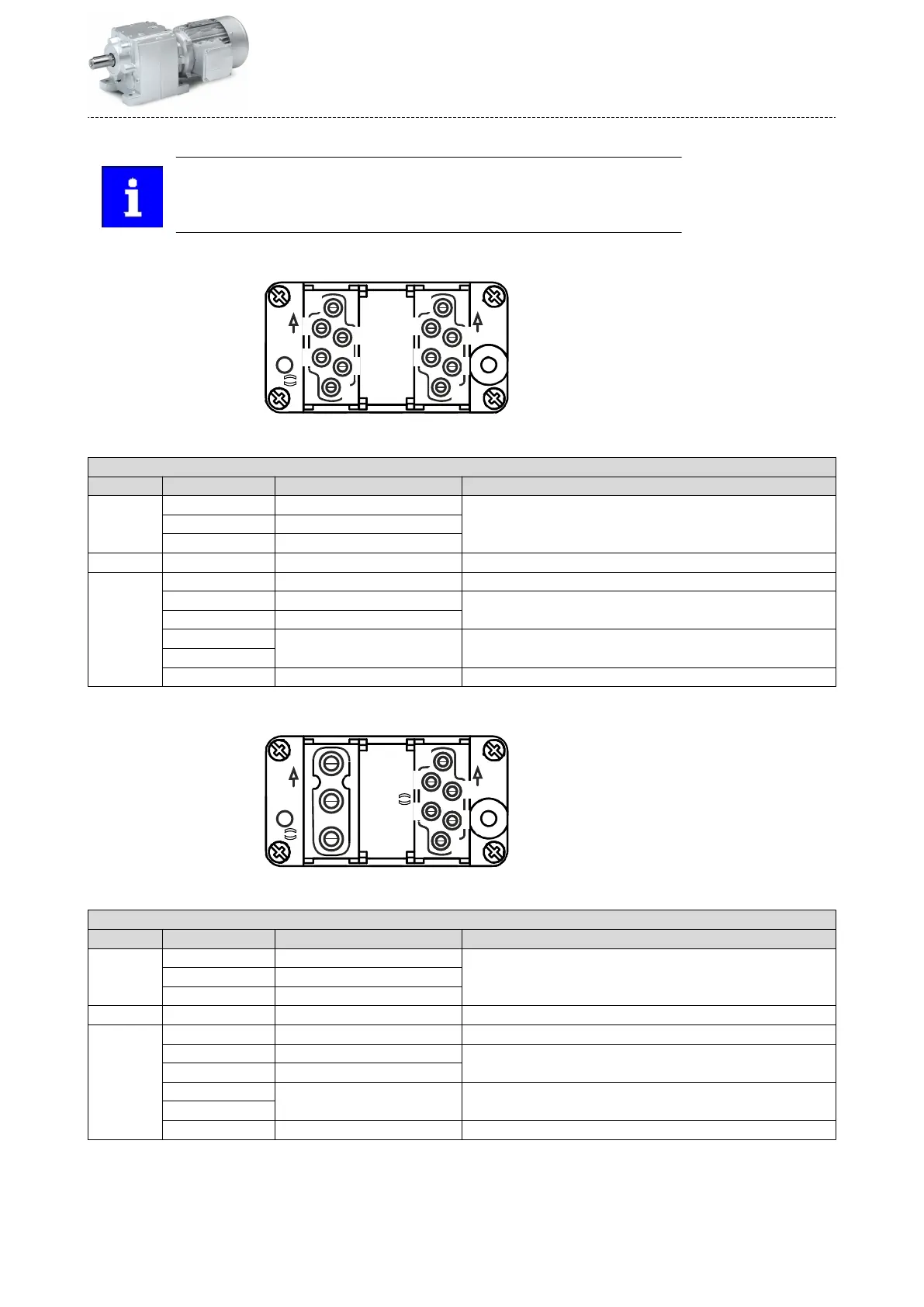

Lenze IE2 g500-H User Manual

HAN modular connector
The motor connecon is specied in the terminal box.
HAN modular 16 A pin assignment
4
5
6
3
2
1
a
c
a
b
c
4
5
6
3
2
1
HAN modular 16 A
Module Contact Name Meaning
a
1 U1
Motor winding phase2 V1
3 W1
b Blank module
c
1 TKO+PT1000 Temperature monitoring
2 +/AC
Brake
3 -/AC
4
Schaltkontakt Recer
5
6 TKO-PT1000 Temperature monitoring
HAN modular 40 A pin assignment
4
5
6
3
2
1
1
2
3
4
5
6
3
2
1
a
c
a
b
c
HAN modular 40 A
Module Contact Name Meaning
a
1 U1
Motor winding phase2 V1
3 W1
b Blank module
c
1 TKO+PT1000 Temperature monitoring
2 +/AC
Brake
3 -/AC
4
Schaltkontakt Recer
5
6 TKO-PT1000 Temperature monitoring
Product extensions
Motor connecon
Connecon via HAN connector
139
