Elektrische Installation
Steueranschlüsse
4
l
29
EDKLCMZ3024−SPS DE/EN 4.0

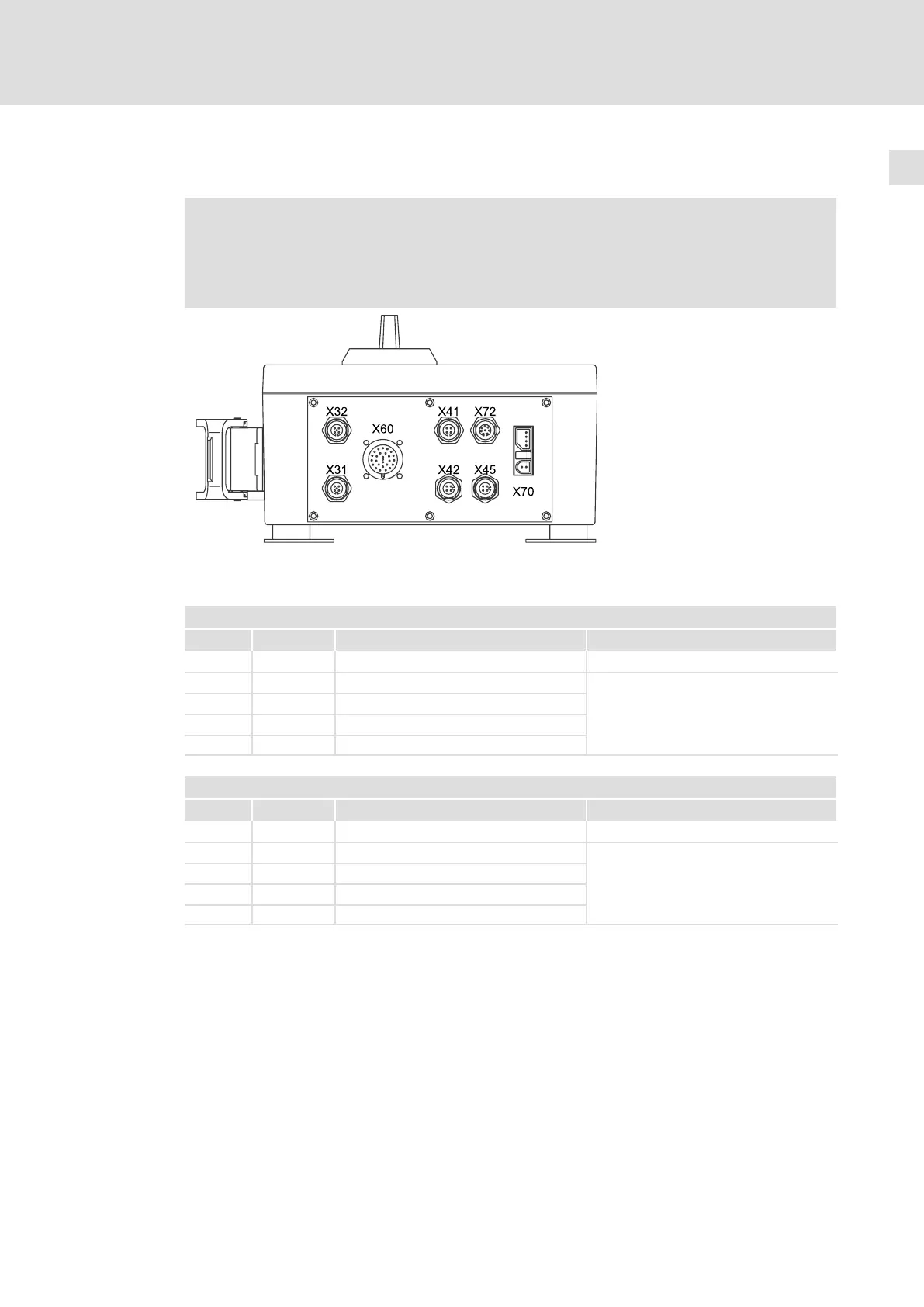

4.6 Steueranschlüsse
) Hinweis!
Die Summe aller Eingangsströme und Ausgangsströme an X41, X42, X45, X60
und X72 darf max. 1,3 A betragen.
Fließt ein höherer Summenstrom, schaltet das Gerät ab!
lcu12x_000e
Digitaleingänge
X41 − Digitale Eingänge E1, E2
Pin Signal Beschreibung Daten
Steckverbinder: Buchse, 4−polig, M12
1 +24V Versorgung
2 Signal 2 E2 HIGH +13 .... 26,5 V DC
3 Gnd Bezugspotenzial LOW 0 ... +4 V
4
Signal 1 E1 8 mA bei 24 V DC
X42 − Digitale Eingänge E3, E4
Pin Signal Beschreibung Daten
Steckverbinder: Buchse, 4−polig, M12
1 +24V Versorgung
2 Signal 2 E4 HIGH +13 .... 26,5 V DC
3 Gnd Bezugspotenzial LOW 0 ... +4 V
4 Signal 1 E3 8 mA bei 24 V DC
