SMVector I/O Module ALSV01 v1.0 13376253 7
Introduction
2 Introduction
This manual provides installation and operational data specifi c to the Additional I/O Module for the SMVector
series inverters. This manual is a supplement (not a substitution for) the standard SMVector - Frequency
Inverter Operating Instructions (document number SV01).
This document assumes that the reader has a working knowledge of the standard SMVector Frequency
Inverter and has familiarity with the programming and operation of the SMVector Frequency Inverter. Please
consult the SMVector - Frequency Inverter Operating Instructions (SV01) for more details.
2.1 Module Overview
The Additional I/O Module is available in two confi gurations (ESVZAL0, ESVZAL1) for use with the SMVector
Frequency Inverter. The modules are intended to supplement the standard I/O functions available in the
SMVector inverter.
The I/O module fi ts into the SMVector inverter terminal cover. This allows for easy fi eld installation and
does not add to the overall size of the SMVector inverter.
SMVector inverters that are fi tted with an additional I/O module option will no longer have the capability of
accommodating an optional communication module.
2.2 Module Specifi cation
• P/N ESVZAL0: 1 programmable form C relay output.
• P/N ESVZAL1: 1 programmable form C relay output and 2 programmable digital inputs.
2.3 Module Identifi cation Label

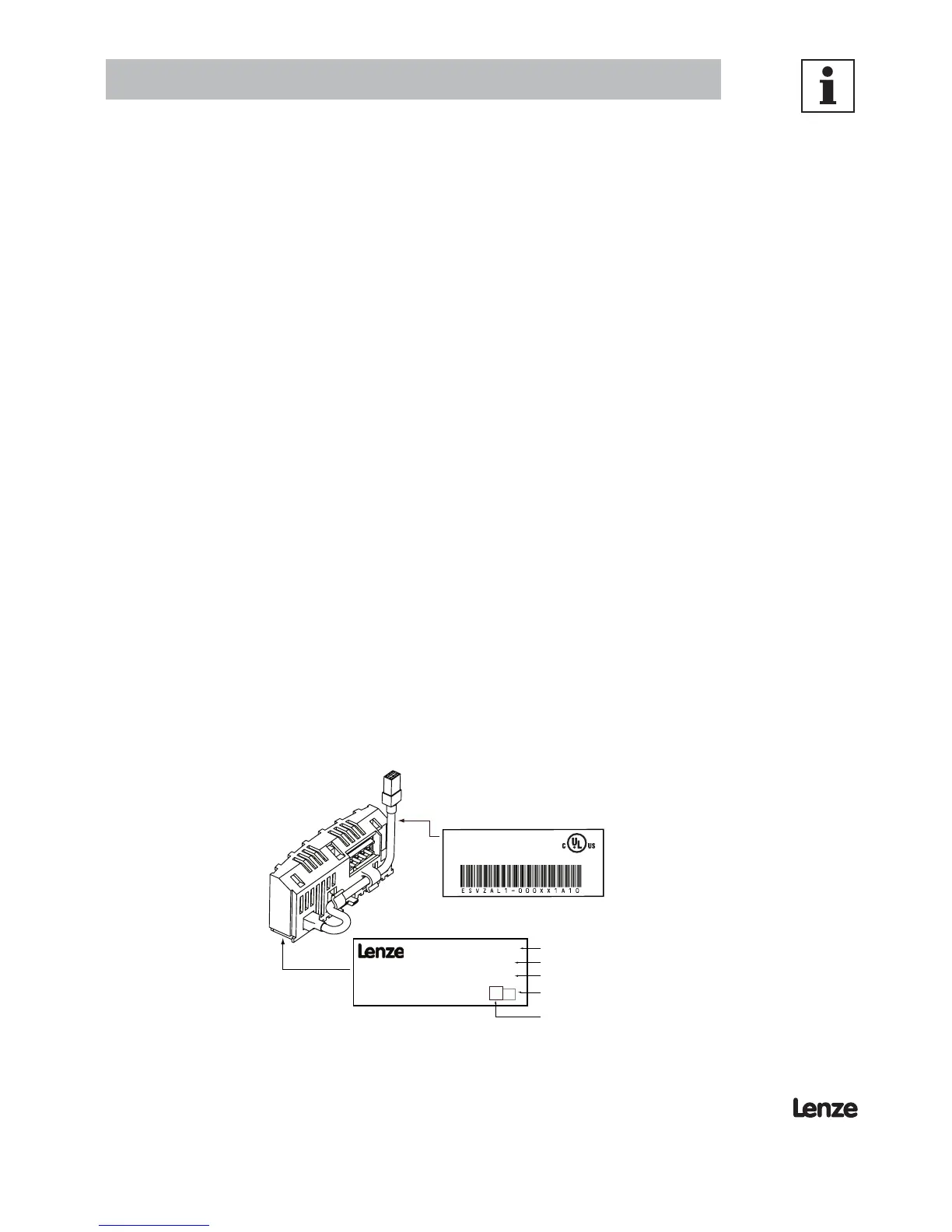

Figure 1 illustrates the labels on the SMV Additional I/O Module. The SMVector Additional I/O Module is
identifi able by:
• Label affi xed to side of the module.
• Part Number ESVZALx on module label.
A: Module Type
B: Model Number
C: Lenze Order Number
D: Firmware Revision
E: Hardware Revision
SMV I/O
TYPE: ESVZAL1
ID-NO: 12345678
ESVZAL1-000XX1A10
A
B
C
D
E
Left-hand Label:
Module Data
Right-hand Label:
Ratings & Certifications
LISTED
Additional I/O ONLY
S/N: 123456789
Figure 1: Additional I/O Module Label
