SMVector I/O Module ALSV01 v1.0 13376253 9
Installation

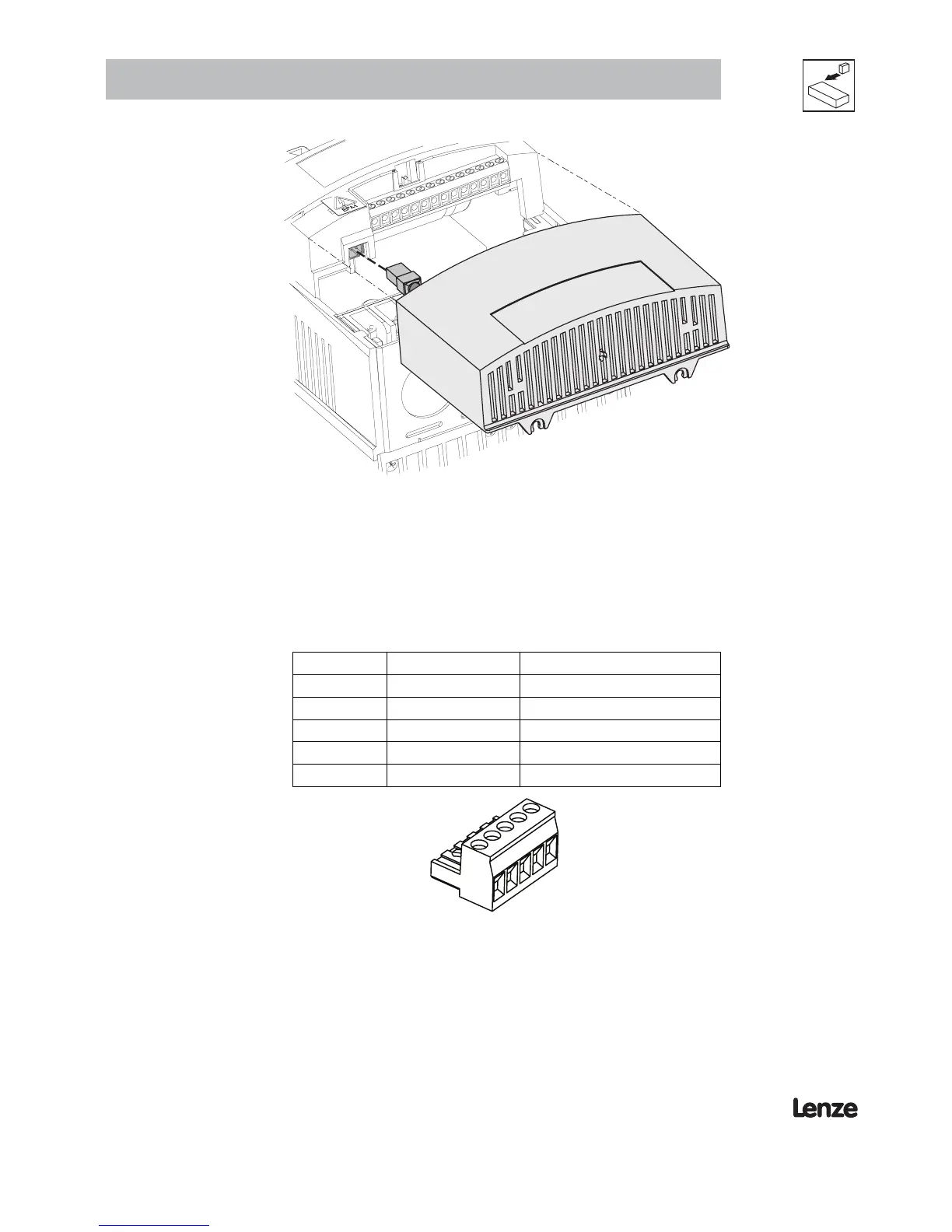

Figure 3: Re-Installing the Terminal Cover
3.2 Module Terminal Block
Table 2 identifi es the terminals and describes the function of each. Figure 4 illustrates the Additional I/O 5
pole 5mm pluggable connector.
Table 2: Additional I/O Terminals
Terminal Function Description
19 Relay N.O.
20 Relay Common
21 Relay N.C.
13F Digital Input Available only on ESVZAL1
13G Digital Input Available only on ESVZAL1
13G
13F
21
20
19
Figure 4: Additional I/O Connector
