Lenze SX-1 User Manual

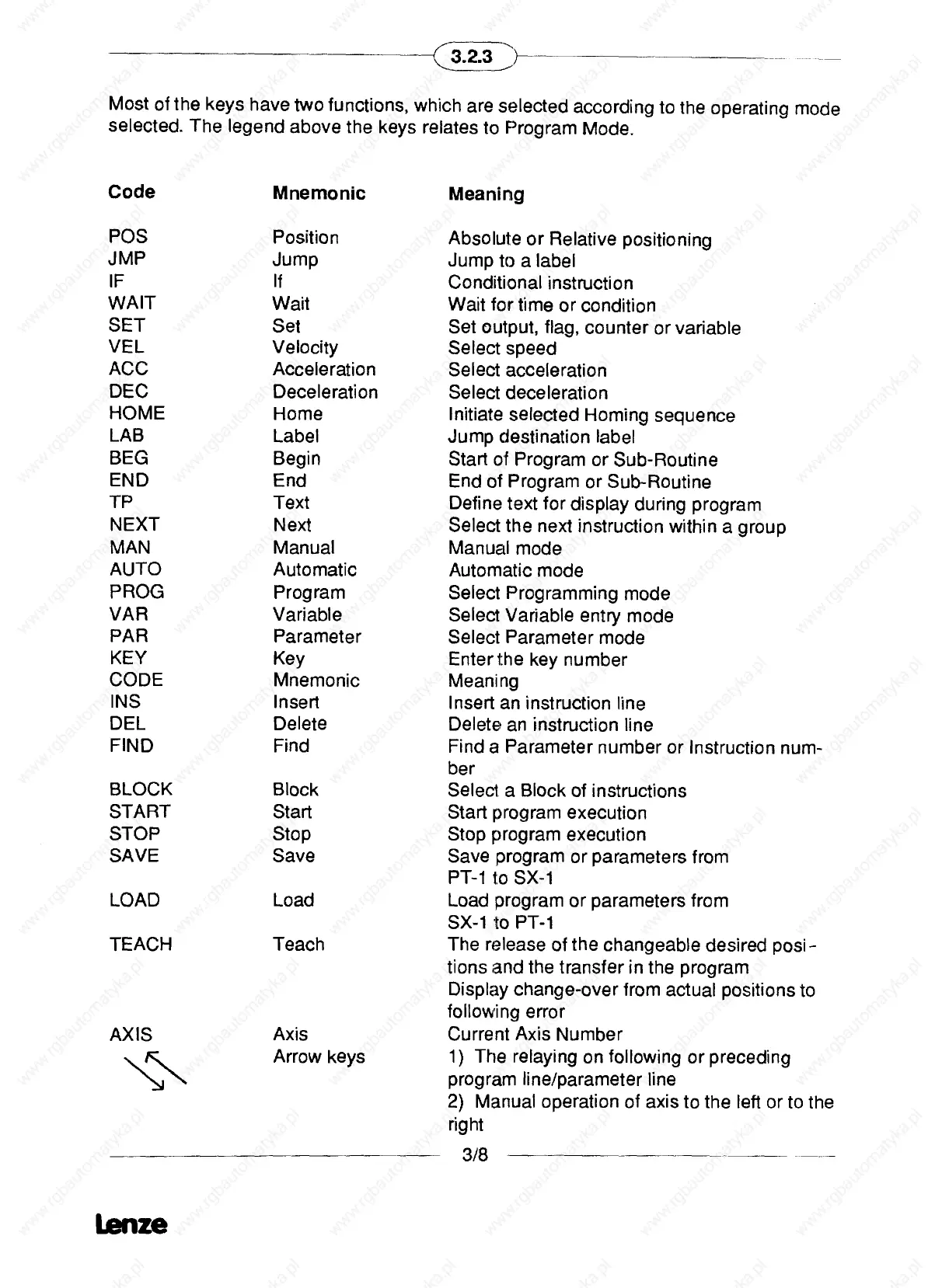

3.2.3
Most of the keys have two functions, which are selected according to the operating mode
selected. The legend above the keys relates to Program Mode.
Code
Mnemonic
Meani ng
Position
Jump
If
Wait
Set
Velocity
Acceleration
Deceleration
Home
Label
Begin
End
Text
N ext
Manual
Auto matic
Program
Variable
Parameter
Key
Mnemonic
Insert
Delete
Find
Block
Start
Sto p
Save
Load
Teach
Axis
Arrow keys
Absolute or Relative positioning
Jump to a label
Conditional instruction
Wait for time or condition
Set output, flag, counter or variable
Select speed
Select acceleration
Select deceleration
Initiate selected Homing sequence
Jump destination label
Start of Program or Sub-Routine
End of Program or Sub-Routine
Define text for display during program
Select the next instruction within a group
Manual mode
Automatic mode
Select Programming mode
Select Variable entry mode
Select Parameter mode
Enterthe key number
Meani ng
Insert an instruction line
Delete an instruction line
Find a Parameter number or lnstruction num -
ber
Selecl a Block of instructions
Start program execution
Stop program execution
Save program or parameters from
PT-1 to SX-1
Load program or parameters from
SX-1 to PT-1
The release of the changeable desired posi -
tions and the transfer in the program
Display change-over from actual positions to
following error
Gurrent Axis Number
1) The relaying on following or preceding
program line/parameter line
2) Manual operation of axis to the left or to the
rig ht
3/8 ___ ______
POS
JMP
IF
WAIT
SET
VEL
ACC
DEC
HOME
LAB
BEG
END
TP
NEXT
MAN
AUTO
PROG
VAR
PAR
KEY
CODE
INS
DEL
FIND
BLOCK
START
STOP
SAVE
LOAD
TEACH
AXIS
Lanze
