6.1

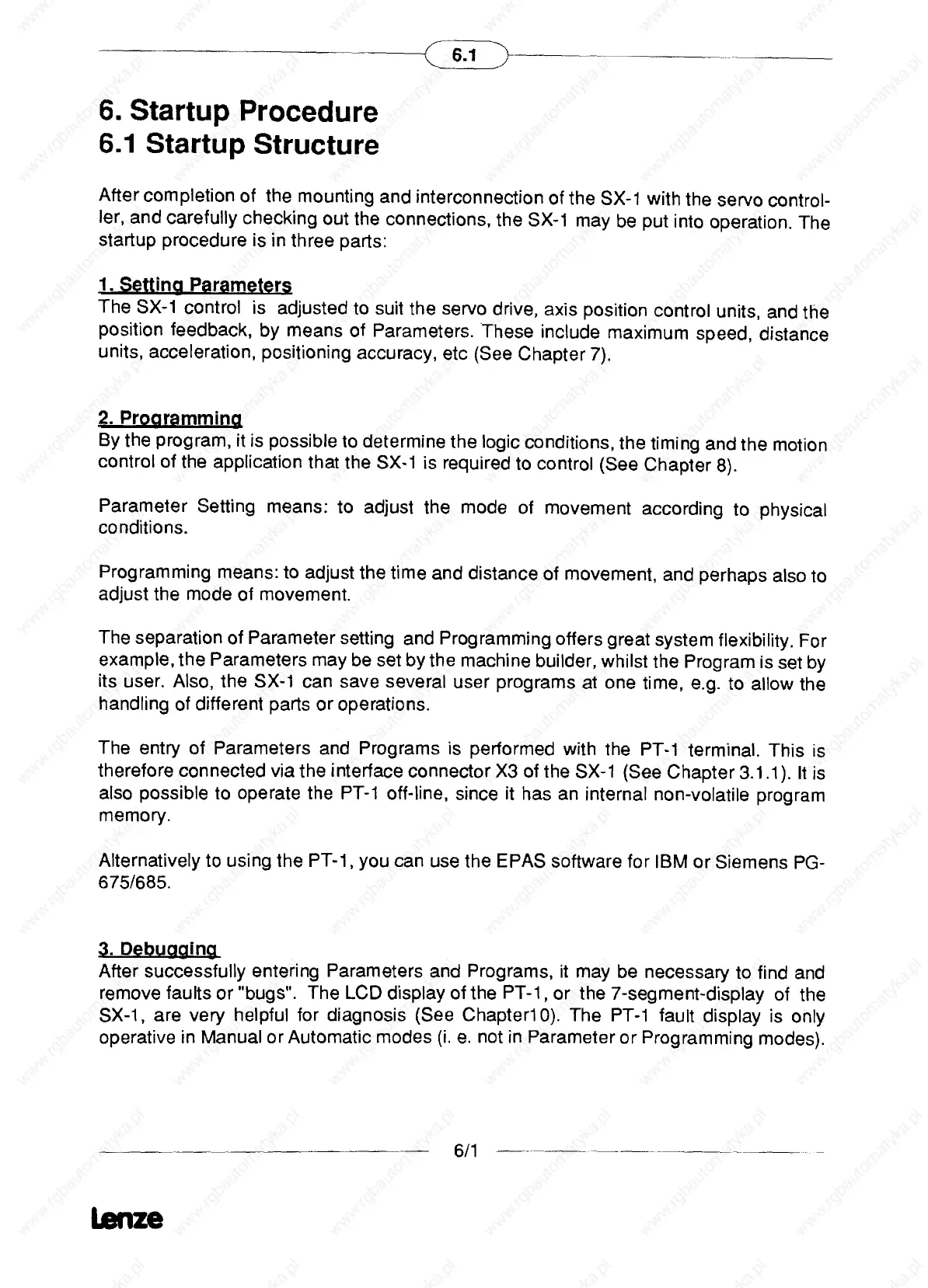

6. Startup Procedure
6.1 Startup Structure
After completion of the mounting and interconnection ofthe SX-1 with the servo control-
1er, and carefully checking out the connections, the SX-1 may be put into operation. The
startup procedure is in three parts:
1. Setting Parameters
The SX-1 control is adjusted to suit the servo drive, axis position control units, and the
position teedback, by means of Parameters. These include maximum speed, distance
units, acceleration, positioning accuracy, etc (See Chapter 7).
2. Programmin~
By the program, it is possible to determine the logic conditions, the timing and the motion
control ot the application that the SX-1 is required to control (See Chapter 8).
Parameter Setting means: to adjust the mode of movement according to physical
co nditions.
Programming means: to adjust the time and distance ot movement, and perhaps also to
adlust the mode ot movement.
The separation ot Parameter setting and Programming offers great system flexibility. For
example, the Parameters may be set by the machine builder, whilst the Program is set by
its user. Also, the SX-1 can save several user programs at one time, e.g. to allow the
handling of difterent parts or operations.
The entry ot Parameters and Programs is performed with the PT-1 terminal. This is
theretore connected via the interface connector X3 ot the SX-1 (See Chapter 3.1.1). lt is
also possible to operate the PT-1 oft-line, since it has an internal non-volatile program
memory.
Alternatively to using the PT-1, you can use the EPAS software tor IBM or Siemens PG -
675/685.
3. Debugging
After successfully entering Parameters and Programs, it may be necessary to tind and
remove taults or „bugs“. The LCD display ot the PT-1, or the 7-segment-display ot the
SX-1, are very helptul tor diagnosis (See Chapterl 0). The PT-1 tault display is only
operative in Manual or Automatic modes (i. e. not in Parameter or Programming modes).
________________ — 6/1 —____ -__ ___ ____
