7.1.1 2

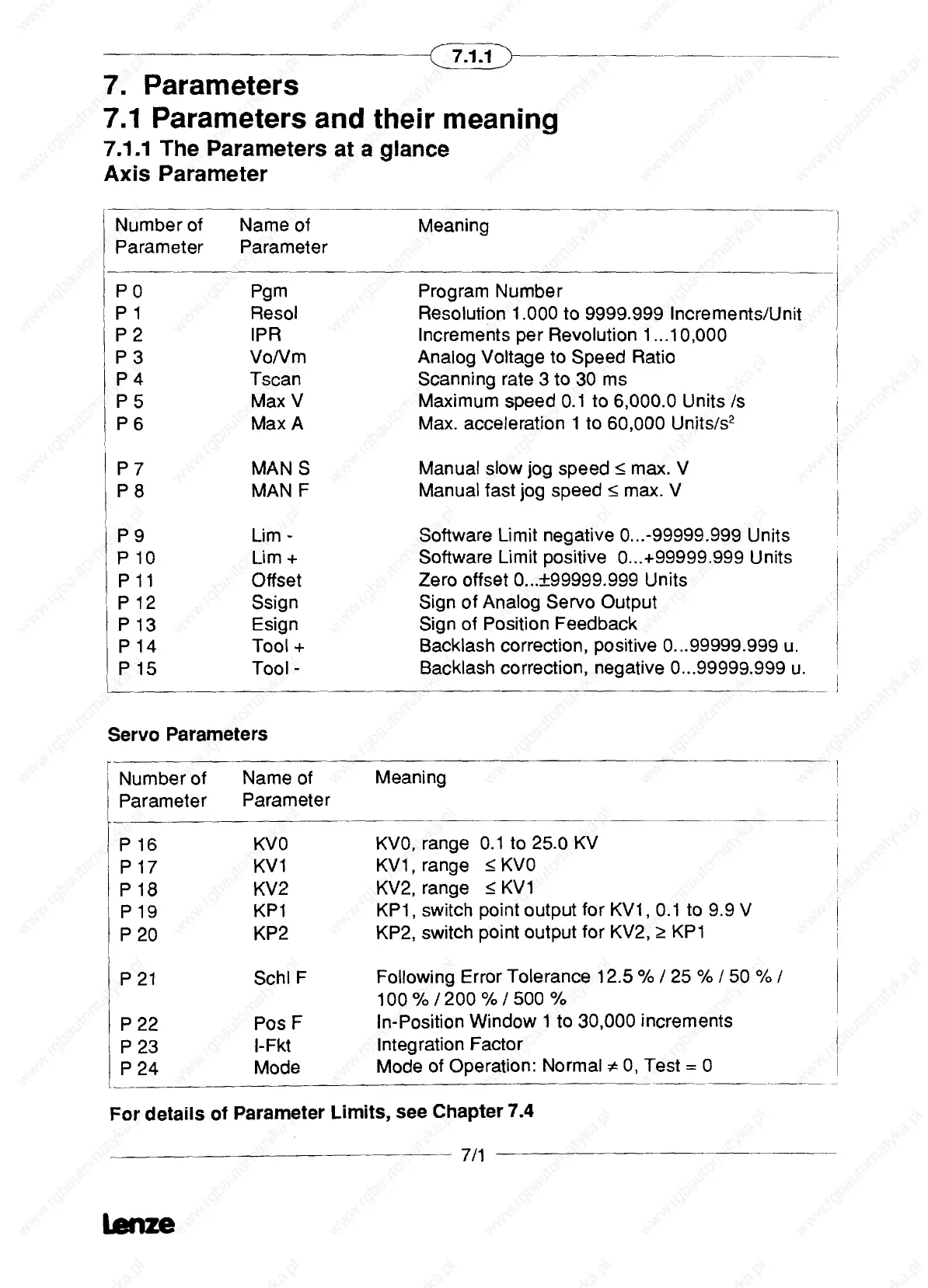

7. Parameters
7.1 Parameters and their meaning
7.1.1 The Parameters
Axis Parameter
at a glance
Number of Name of
Parameter Parameter
Meaning
P 0 Pgm Program Number
P 1 Resol Resolution 1.000 to 9999.999 lncrements/Unit
P 2 IPR lncrements per Revolution 1 .. .10,000
P 3 VoNm Analog Voltage to Speed Ratio
P 4 Tscan Scanning rate 3 to 30 ms
P 5 Max V Maximum speed 0.1 to 6,000.0 Units /s
P 6 Max A Max. acceleration 1 to 60,000 Units/s
2
P 7 MAN 5 Manual slow jog speed = max. V
P 8 MAN F Manual fast jog speed = max. V
P 9 Lim - Software Limit negative 0. ..-99999.999 Units
P 10 Lim + Software Limit positive 0.. .+99999.999 Units
P 11 Offset Zero oftset 0. ..±99999.999 Units
P12 Ssign Sign of Analog Servo Output
P13 Esign Sign of Position Feedback
P 14 TooI + Backlash correction, positive 0. ..99999.999 u.
P iS Tool - Backlash correction, negative 0...99999.999 u.
Servo Parameters
Number of Name of Meaning
Parameter Parameter
KVO KVO,range 0.1to25.OKV
P17 KV1 KV1,range =KVO
P18 KV2 KV2,range =KV1
P 19 KP1 KP1, switch pointoutputfor KV1, 0.1 to 9.9V
P 20 KP2 KP2, switch point output tor KV2 > KP1
P 21 SchI F Following Error Tolerance 12.5 % 1 25 % / 50 % /
100 %/200 %/500 %
P 22 Pos F In-Position Window 1 to 30,000 increments
P 23 I-Fkt Integration Factor
P 24 Mode Mode of Operation: Normal != 0, Test = 0
For details ot Parameter Limits, see Chapter 7.4
7/1
