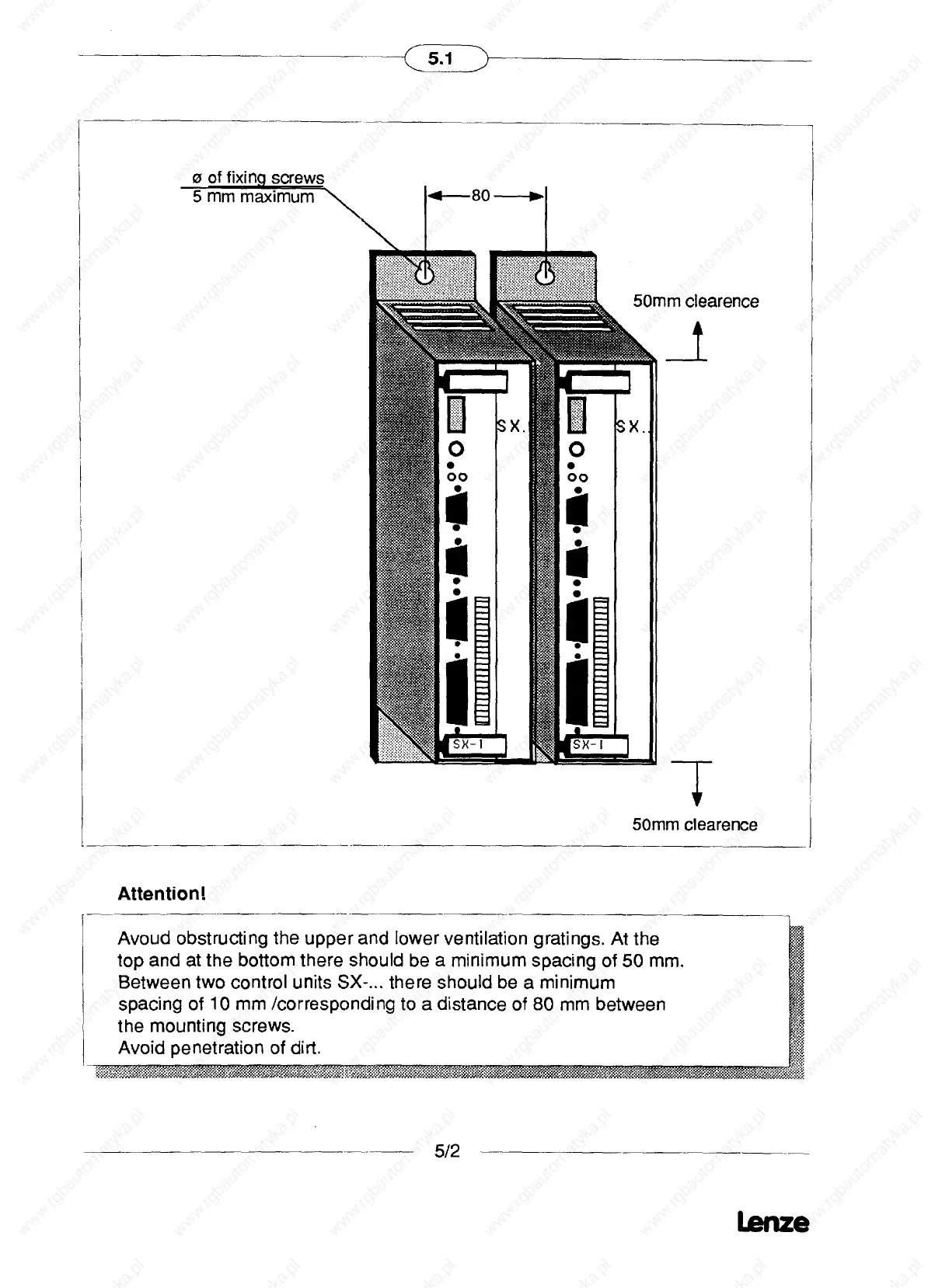

Lenze SX-1 User Manual

- 5.1
of fixing screws
5 mm maximum
<—80 —*
5Omm clearence
~1
T
5Omm clearence
Attention!
Avoud obstructing the upper and lower ventilation gratings. At the
top and at the bottom there should be a minimum spacing of 50 mm.
Between two control uflits SX-... there should be a minimum
spacing of 10 mm /corresponding to adistance of 80 mm between
the mounting screws.
Avoid penetration of dirt.
5/2
lanze
