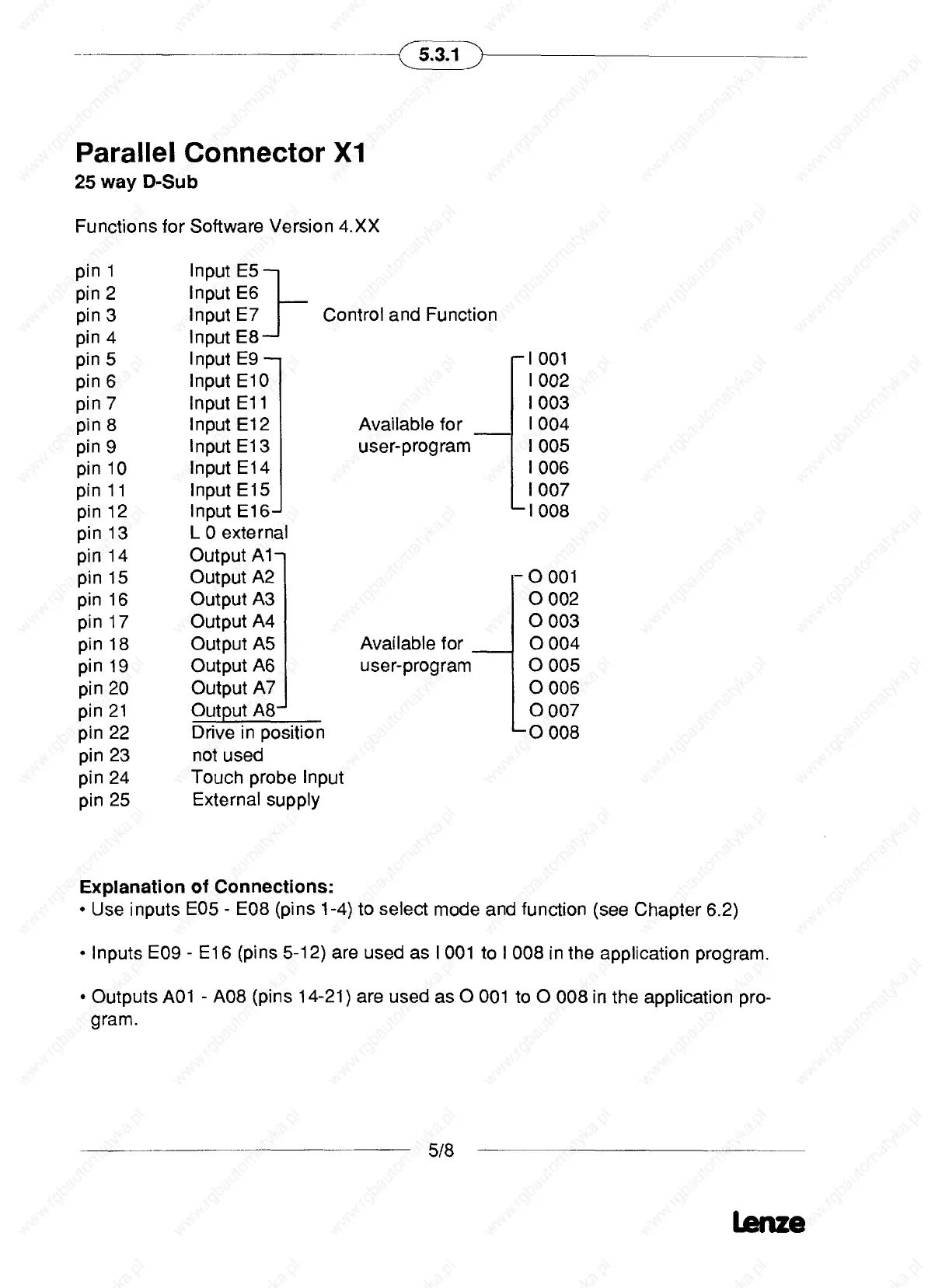

Parallel Connector Xl
25 way D-Sub
Functions tor Software Version 4.XX
Input ES
Input E6
Input E7
Input E8
Input E9
Input E1O
Input Eh
Input E12
Input E13
Input E14
Input EiS
Input E16
L 0 external
Output Al
Output A2
Output A3
Output A4
Output AS
Output A6
Output A7
Output A8
Drive in position
not used
Touch probe Input
External supply
Control and Function
Available tor
user-program
Available tor
user-program
—1001
1 002
1 003
1 004
1 005
1 006
1 007
—1 008
— 0 001
o 002
o 003
0004
0 005
0 006
0007
—0 008
Expianation of Connections:
• Use inputs E05 - E08 (pins 1-4) to seleot mode and funotion (see Chapter 6.2)
• lnputs E09 - El 6 (pins 5-1 2) are used as 1 001 to 1 008 in the application program.
• Outputs AOl - A08 (pins 14-21) are used as 0 001 to 0 008 in the application pro -
9 ram.
