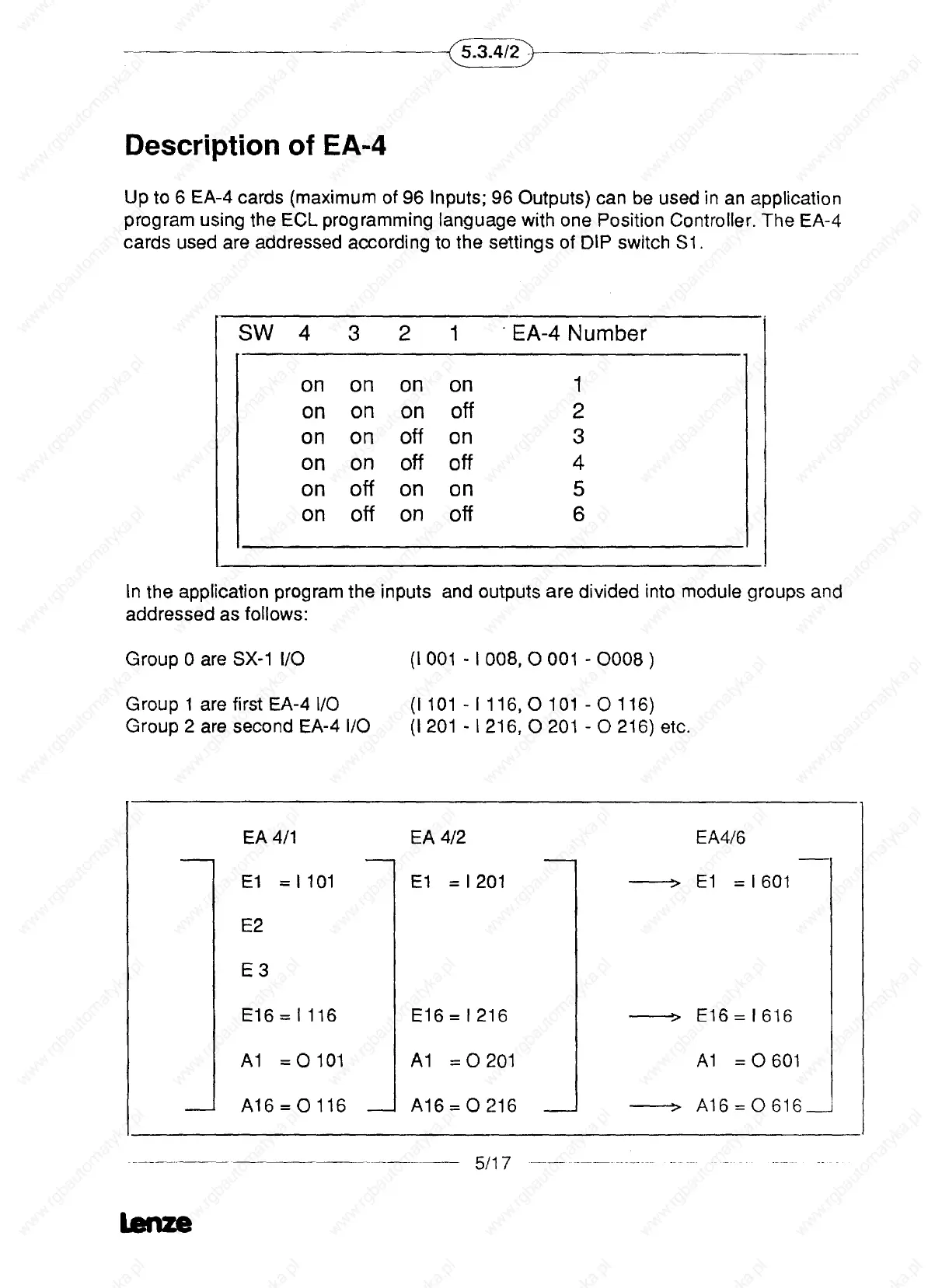

Description of EA-4
Up to 6 EA-4 cards (maximum of 96 Inputs; 96 Outputs) can be used in an application
program using the ECL programming language with one Position Controller. The EA-4
cards used are addressed aCcording to the settings of DIP switch S1.
In the appliCation program the inputs
addressed as follows:
Group 0 are SX-1 I/O
and outputs are divided into module groups and
(1 001 - 1 008, 0 001 - 0008)
Group 1 are first EA-4 I/O
Group 2 are second EA-4 I/O
EA 4/1
El =1101
E2
E3
E16=I 116
Al =0101
A16 =0116
(1101 — 1116,0101
(1201 - 1216,0201
FA 4/2
El =1201
E16 = 1216
Al =0201
A16 = 0216
- 0 116)
-0216) etc.
EA4/6
—> El =1601
—~. E16= 1616
Al =0601
—> A16=0616
5/17
SW 4 3 2 1 EA-4Number
an an an an 1
on an an oft 2
an on oft on 3
an an oft oft 4
an oft an on 5
an oft an oft 6
