‚~.3.5 )

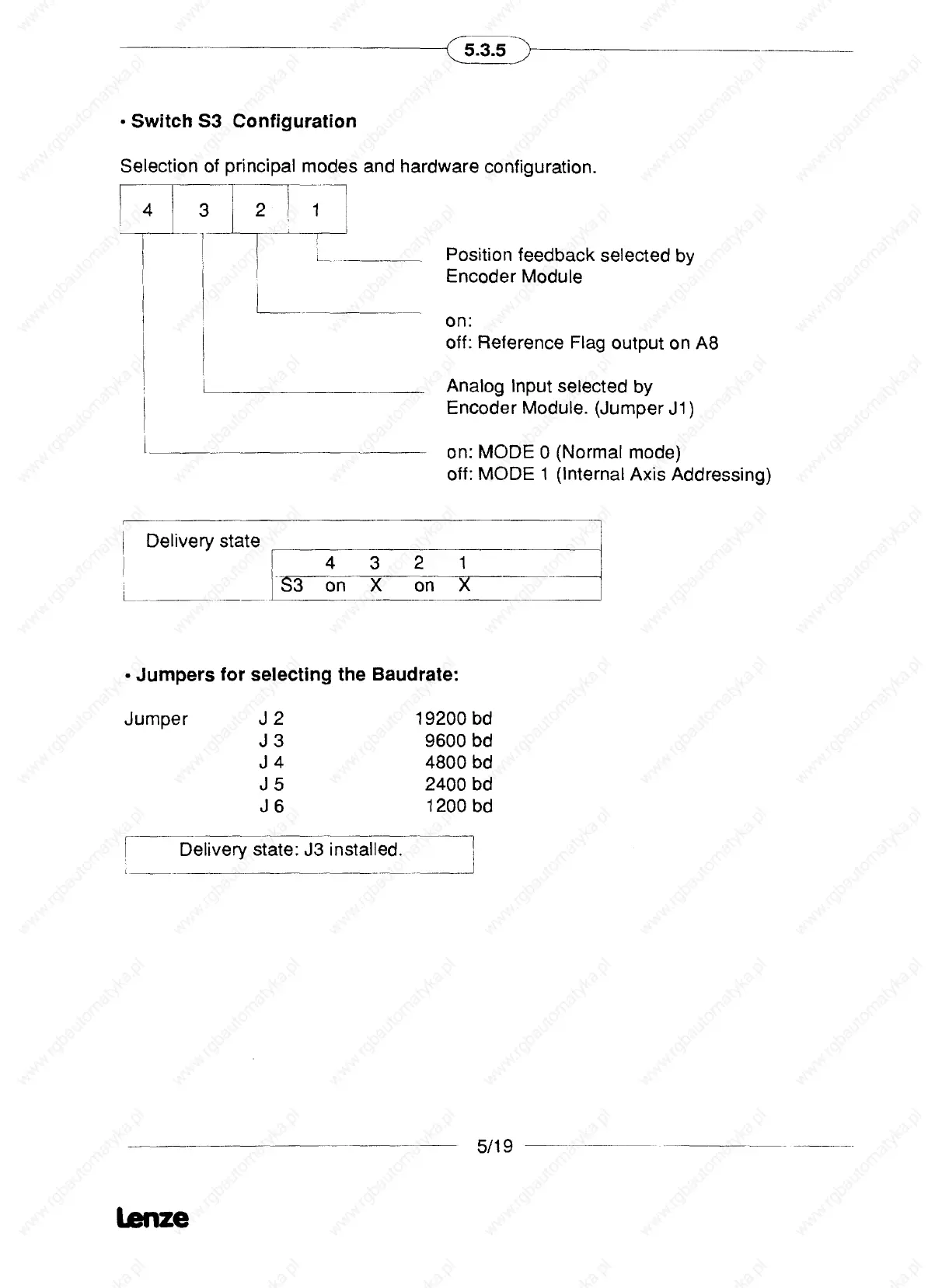

Switch S3 Configuration
Selection of principal modes and hardware configuration.
Position feedback selected by
Encoder Module
on:
0ff: Rel erence Flag output on A8
Analog Input selected by
Encoder Module. (Jumper J1)
on: MODE 0 (Normal mode)
off: MODE 1 (Internal Axis Addressing)
Delivery state
4
SW~&V
3 21
on W~ X
Jumpers tor seleoting the Baudrate:
Jumper J2
J3
J4
J5
J6
19200 bd
9600 bd
4800 bd
2400 bd
1200 bd
Delivery state: J3 installed.
5/19
