12. FLIP CHIPS
The geometry of the Levo can be modified by adjusting the Horst flip chips and adjustable
headset cups. The flip chips are located on both sides of the chainstay near the Horst pivot
and the headset cup is located in the upper head tube bearing bore.
The Horst pivot flip chips adjust the chainstay length and bottom bracket height. The headset
cups slackens or steepens the headtube angle.
The adjustable headset cup is found in the small parts box supplied with the bicycle.
WARNING! Changing the frame configuration (Flip Chip position, tire size,
fork length) can alter the BB height and/or the head tube angle, which can
have negative effects on the bicycle’s handling characteristics and ride
quality. Please refer to your Authorized Specialized Retailer before making any
modifications.
INFO: For information on the geometry when adjusting the flip chips visit
www.specialized.com for more information
1
3
4
1
2
6
7
5

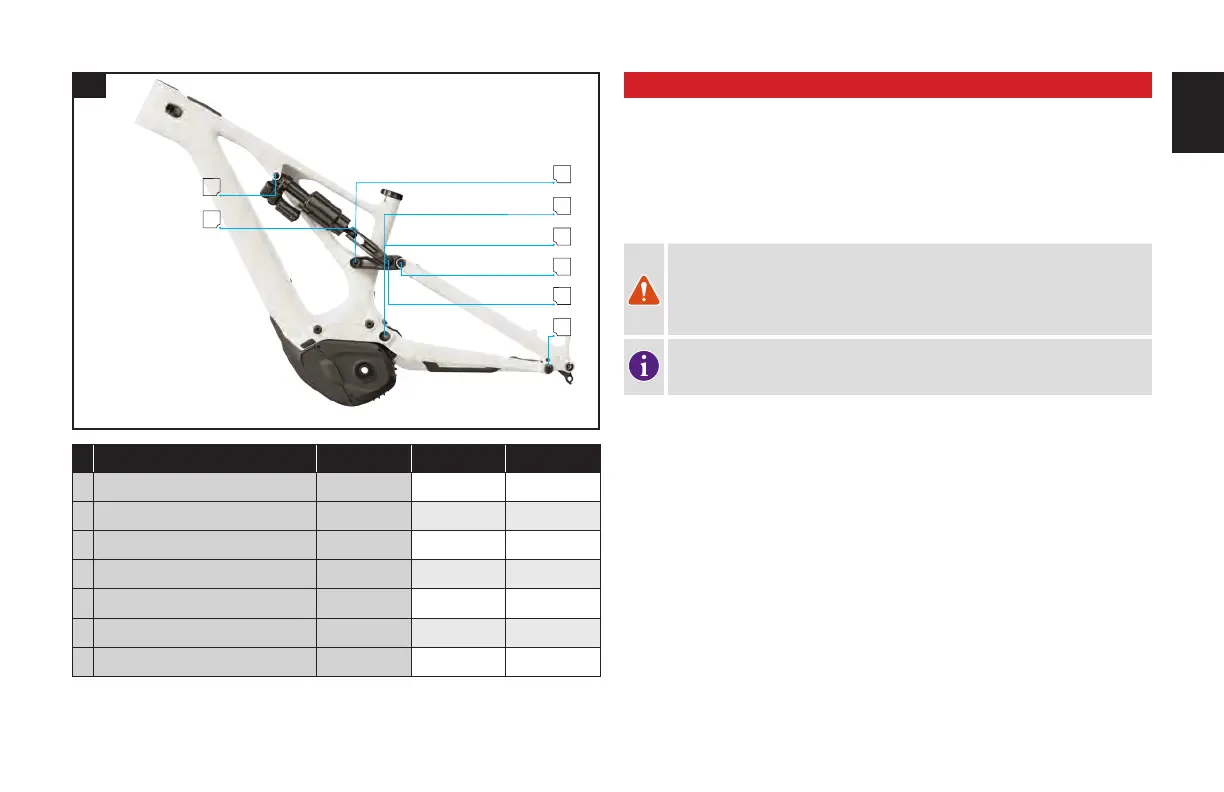

NON DRIVE SIDE
DRIVE SIDE
11.3
# PIVOT LOCATION TOOL in-lbf Nm
1
MAIN PIVOT (DS - LEFT HAND THREAD)
6 mm
210 24
2
LINK @ SEAT-TUBE
6 mm
185 21
3
LINK @ SEAT-STAY
4/6 mm
70 8
4
LINK @ EXTENSION
4/5 mm
70 8
5
DROPOUT (HORST LINK)
5 mm
90 10
6
FORWARD SHOCK EYE
6 mm
90 10
7
REAR SHOCK EYE
5 mm
185 21
Torque each pivot bolt according to the torque specification listed above.

Levo COMP ALLOY Specifications

General

Battery	Levo 700Wh
Fork	RockShox 35 Gold RL, 150mm
Drivetrain	SRAM
Tires	Butcher, 29x2.6"
Display	TCU
Charger	Specialized 4A
Shifters	SRAM SX Eagle, 12-speed
Rear Derailleur	SRAM SX Eagle, 12-speed
Cassette	SRAM PG-1210, 11-50t
Chain	SRAM SX Eagle, 12-speed
Chainrings	32t
Handlebars	Specialized Trail, 780mm
Stem	Specialized Trail, 50mm
Seatpost	Specialized, 30.9mm
Rims	Specialized 29, 30mm inner width
Front Hub	Specialized, sealed cartridge bearings
Rear Hub	Specialized, sealed cartridge bearings
Front Tire	Butcher, 29x2.6"
Rotors	200mm
Hubs	Specialized, sealed cartridge bearings
Bottom Bracket	SRAM DUB
Grips	Specialized Sip Grip
Headset	1-1/8" upper, 1.5" lower
Rear Tire	29x2.6"
