Operation
2.1 Installation
The standard pump is not suited for
installation in explosion hazard areas.
When planning such an application please
contact us first.
The TRIVAC B pump can be set up on a flat, horizontal
surface. Rubber feet under the coupling housing ensure
that the pump can not slip.
If you wish firmly install the pump in place,
insert bolts or similar through the bore holes
in the rubber feet.
The rubber feet act as vibration absorbers.
They must therefore not be compressed by
screws.
When installing the TRIVAC B pump, make
sure that the connections and controls are
readily accessible.
Max. tilt for the pump (without further
attachment) with possibly fitted standard
accessories is 10° from the vertical.
The site chosen should allow adequate air
circulation to cool the pump (keep front and
rear unobstructed). The ambient
temperature should not exceed +40 °C
(104 °F) and not drop below +12 °C (55 °F)
(see Section 2.5.3).
The max. amount of heat given off
approximately corresponds to the rated
motor power.
9
2 Operation

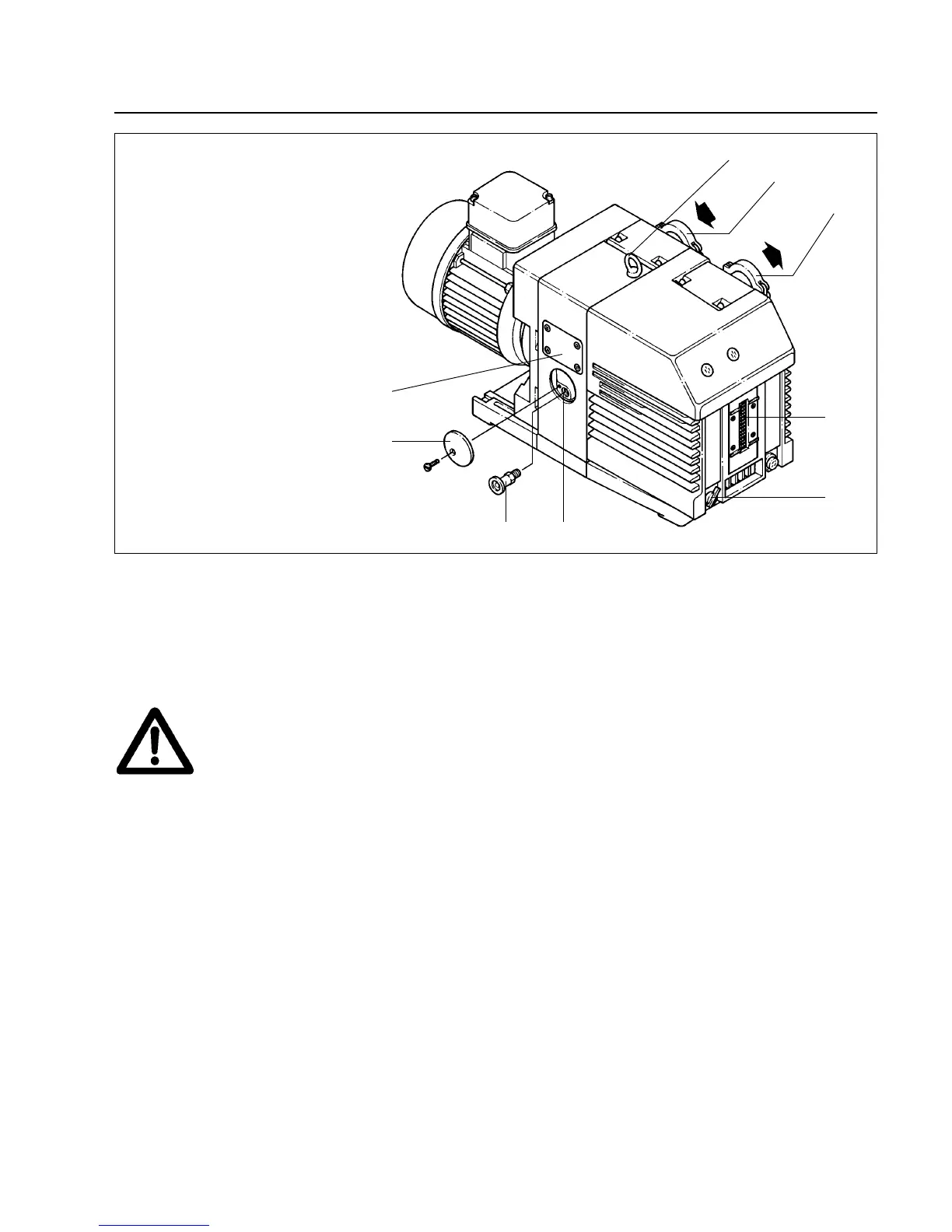

Fig. 7 Connections and controls
Key to Fig. 7
1 Eye for moving the pump
2 Intake port
3 Exhaust port
4 Oil-level glass
5 Gas ballast knob
6 Threaded connection M 16 x 1.5
(for inert gas ballast)
7 Adapter
8 Cover plate
9 Cover plate; connection for oil filter
Caution
1
2
3
4
5
67
8
9
Warning
