13
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
■
To avoid damaging any equipment, never plug in any power cords until you have finished connecting all equipment.
■
Image shown may differ from your TV.
1 2
HD RECEIVER SETUP

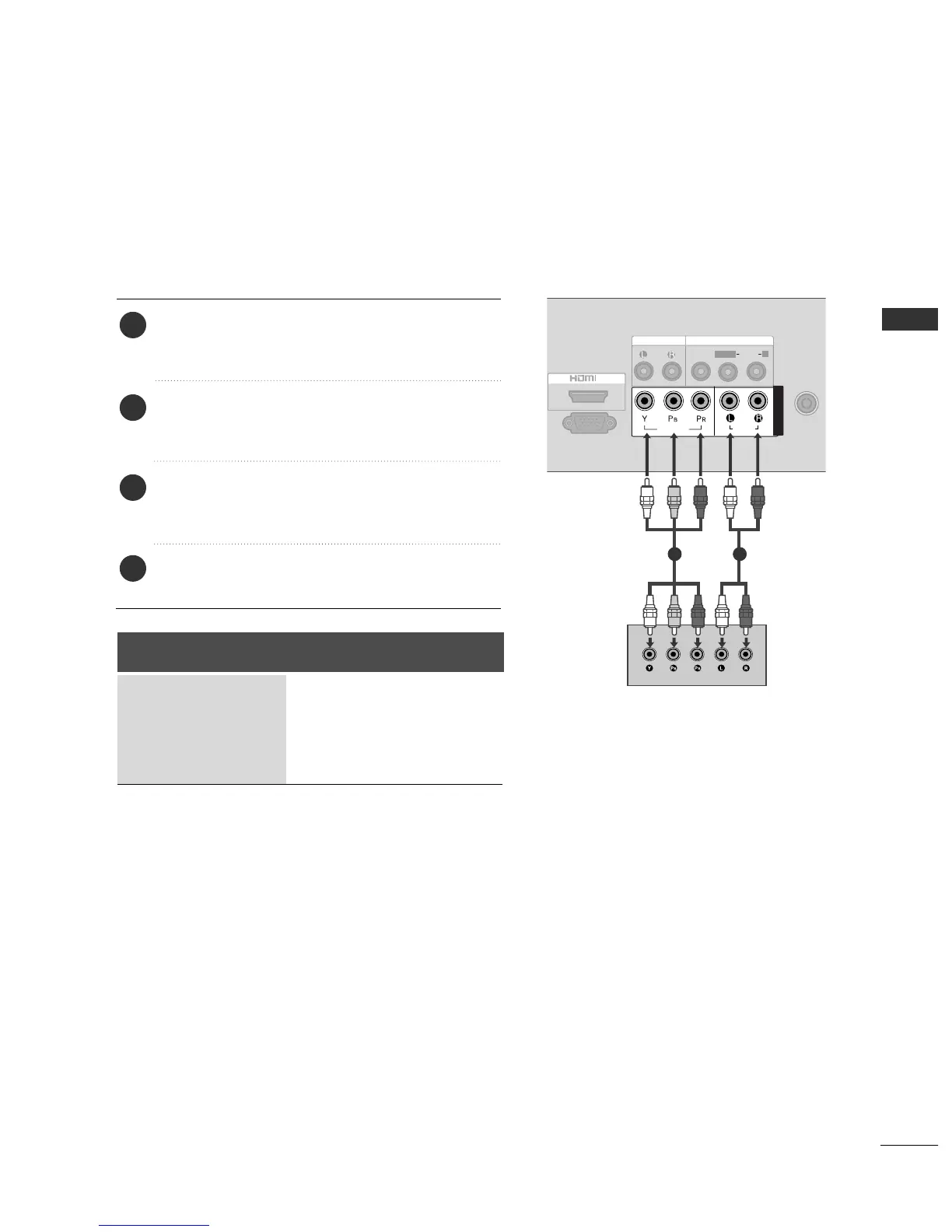

Connecting with a component cable
Connect the video outputs
(
Y, P
B, PR
)
of the digi-
tal set-top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on the TV.
Connect the audio output of the digital set-top
box to the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on
the TV.
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top
box.
)
Select
CCoommppoonneenntt
input source using the
IINNPPUUTT
button on the remote control.
2
3
4
1
Signal
480i/576i
480p/576p
720p
1080i/ 1080p
Component
O
O
O
X
To Next Page
