VCR SETUP
EXTERNAL EQUIPMENT SETUP
■
To avoid picture noise (interference), allow adequate distance between the VCR and TV.
Connect the
AANNTT OOUUTT
socket of the
VCR to the
AANNTTEENNNNAA IINN
socket on the
TV.
Connect the antenna cable to the
AANNTT IINN
socket of the VCR.
Press the
PPLLAAYY
button on the VCR and
match the appropriate programme
between the TV and VCR for viewing.
2
3
1

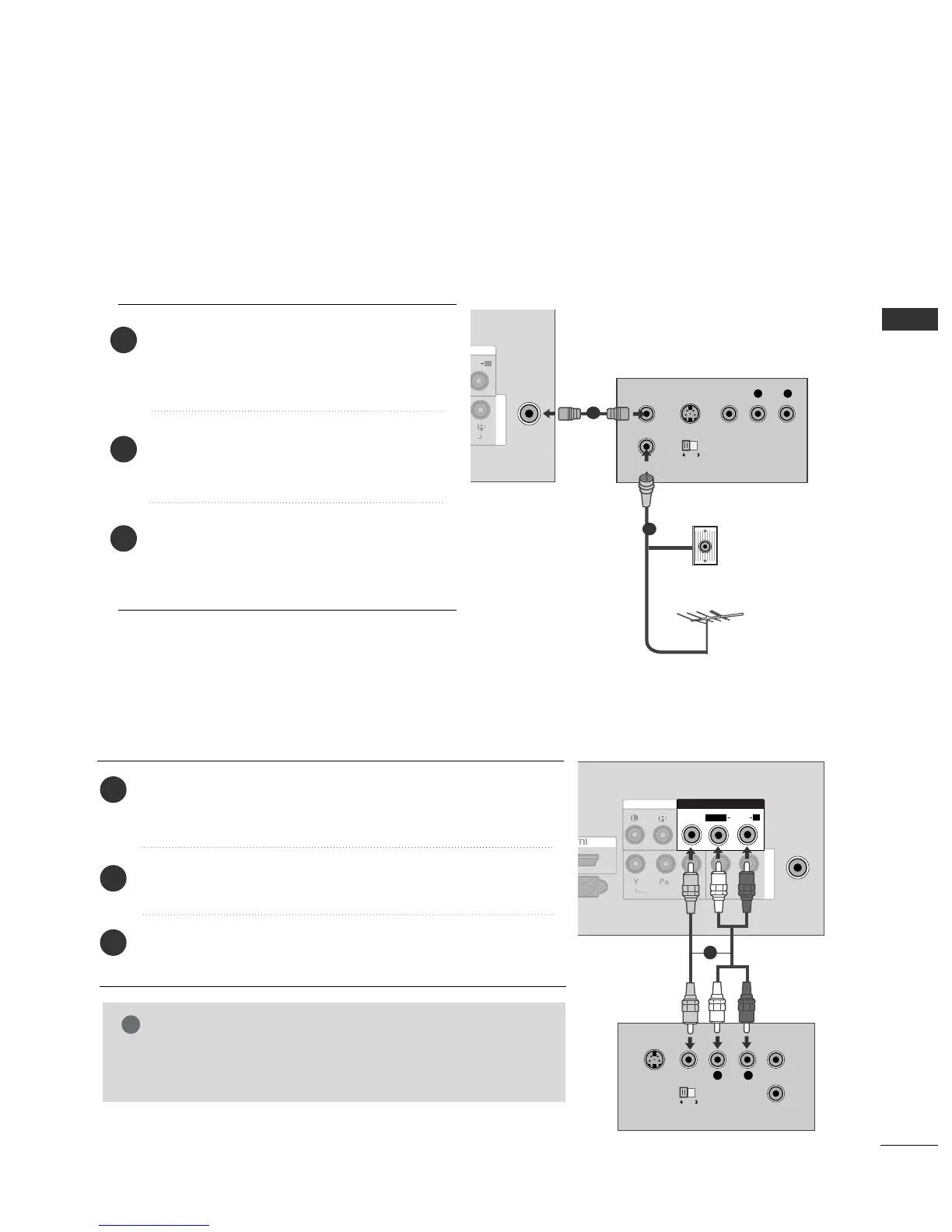

Connecting with a RF cable
ANTENNA
IN
DIO
R
IO
COMPONENT IN
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT
L
AV IN 2
Wall Jack
Antenna
1
2
Connecting with a RCA cable
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks between TV and VCR.
Match the jack colours (Video = yellow, Audio Left = white, and
Audio Right = red)
Insert a video tape into the VCR and press PLAY on the VCR.
(
Refer to the VCR owner’s manual.
)
Select
AA VV
input source using the
IINNPPUUTT
button on the
remote control.
1
2
3
GG
If you have a mono VCR, connect the audio cable from the VCR
to the
AAUUDDIIOO LL//MMOONNOO
jack of the TV.
NOTE
!
AV IN 2
IN
CE ONLY
ANTENNA
IN
AUDIO OUT
AUDIO
VIDEO
COMPONENT IN
AV IN
L
R
S-VIDEO
VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
VIDEO
AUDIO
L(MONO)
R
1
