ENGLISH
21
MAKING CONNECTIONS
AV IN
COMPONENT IN
VIDEO
VIDEO
RL
AUDIO
AUDIO
(MONO)
P
B
P
R
Y
L R
PB PR
Y RL
VIDEO AUDIO
GREEN
RED
BLUE
RED
WHITE
GREEN
RED
BLUE
RED
WHITE

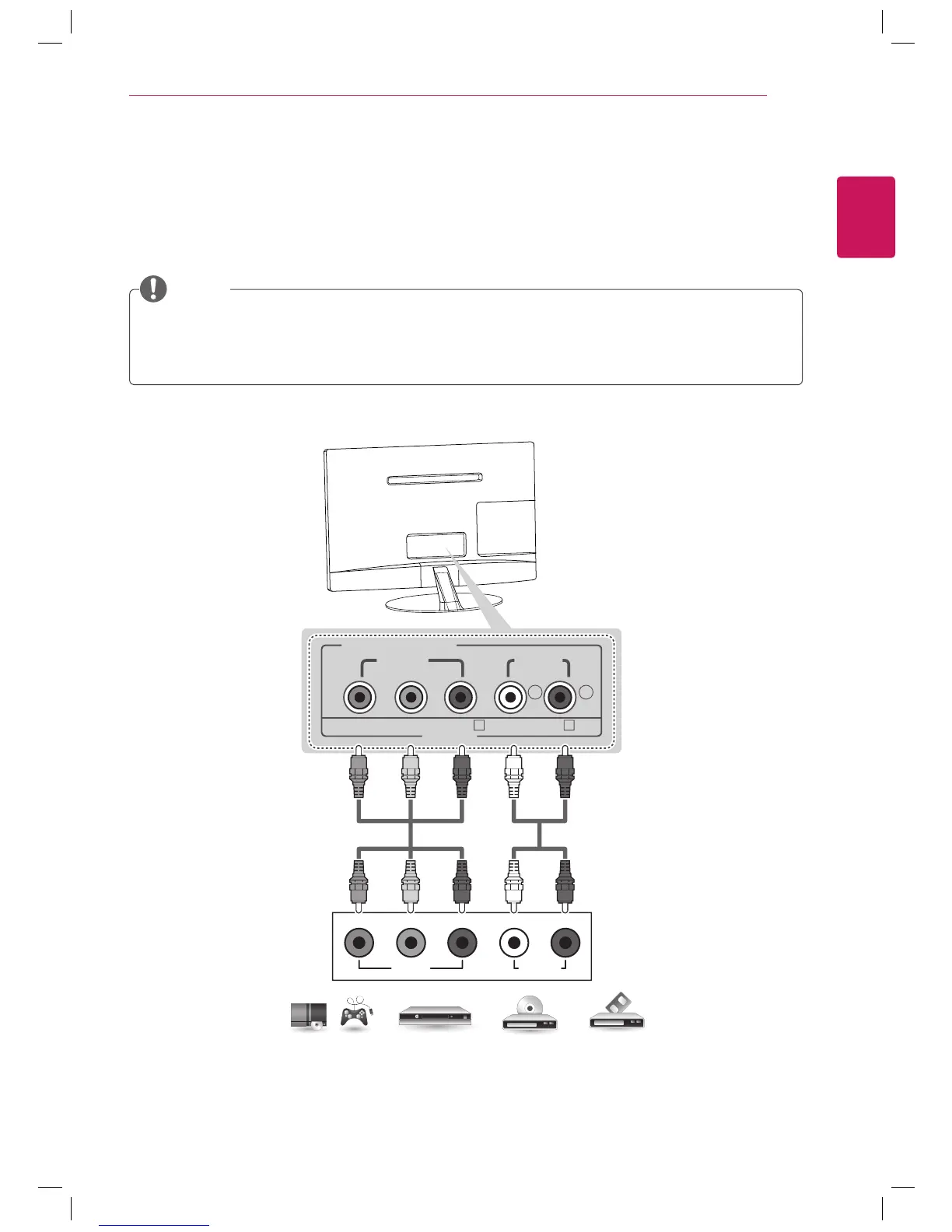

Component connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external device
and the TV with the component cable as shown on the following illustration. Component connections
support HD, but some devices will not output HD on Component (due to copyright issues).
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
(Not Provided)
(Not Provided)
If cables are installed incorrectly, it could case the image to display in black and white or with distorted
color.
Check to ensure each cable is matched with the corresponding color connection.
NOTE
To Next Page
