EXTERNAL EQUIPMENT SETUP
VCR SETUP
V To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
V If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.
This phenomenon is common to all TVs and is not covered by warranty.

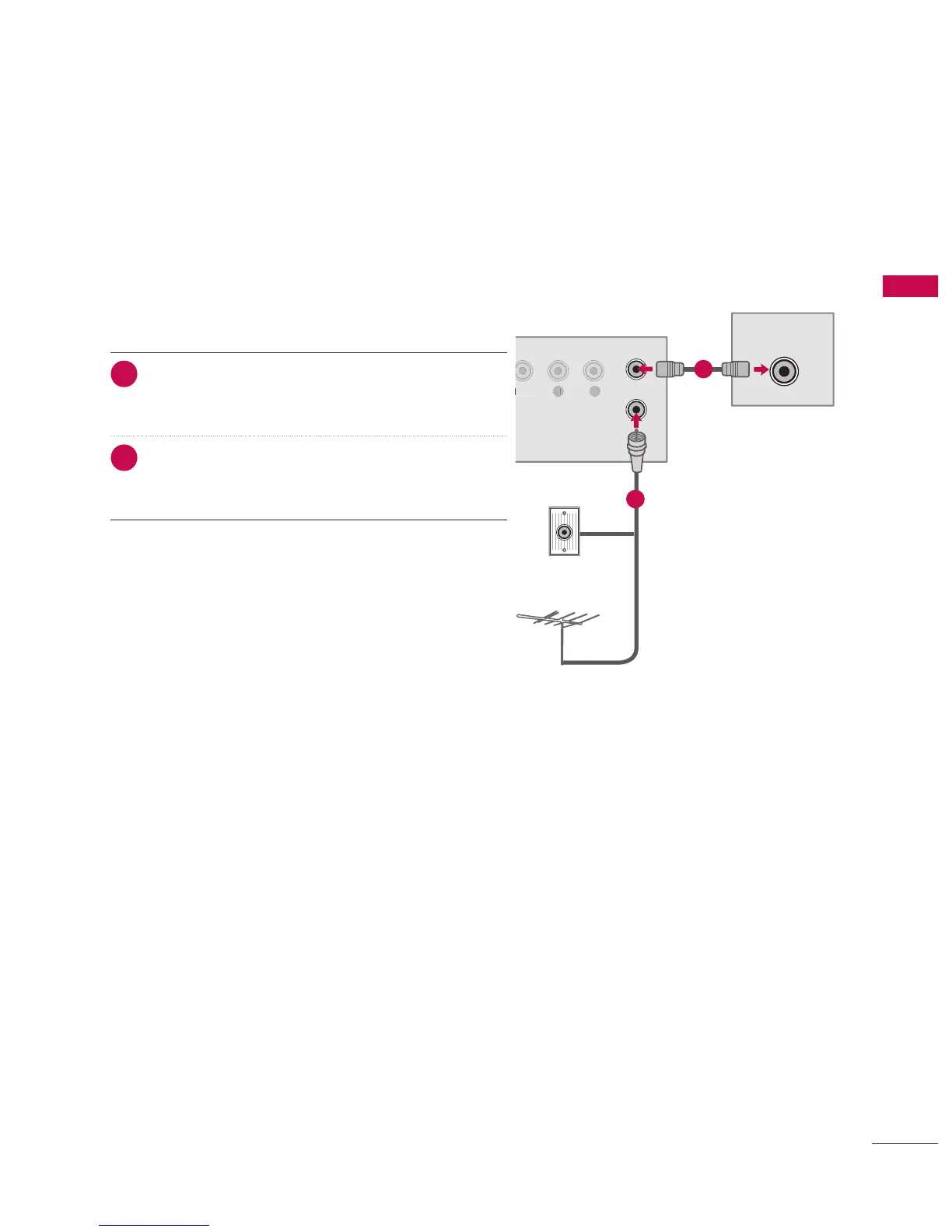

Antenna Connection
1. How to connect
1
Connect the RF antenna out socket of the VCR to the
ANTENNA IN socket on the TV.
2
Connect the antenna cable to the RF antenna in
socket of the VCR.
2. How to use
V Set VCR output switch to 3 or 4 and then tune TV to the
same channel number.
V Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
L
R
S
-VIDE
O
VIDE
O
OU
TP
U
T
S
WITC
H
ANT IN
ANT OUT
ANTENNA IN
2
1
Wall Jack
Antenna
