LG 26LQ630H User Manual

27
EXTERNAL EQUIPMENT SETUP
PILLOW SPEAKER
RF IN
TV-LINK
CFG
AUDIO IN
(RGB/DVI)
SPEAKER
OUT(8Ω)
REMOTE
CONTROL
OUT
R
S-232C IN
(SER
VICE ONLY)
GAME CONTROL
/ M.P.I.
/DVI IN IN
1 2
PILL
O
W
S
PEAKE
R
RF
IN
TV
-L
INK
C
F
G
A
U
DI
O
I
N
(
RGB/DVI
)
S
PEAKER
OUT
(
8Ω
)
REM
O
T
E
CO
NTR
O
L
O
UT
R
S
-2
3
2C I
N
(S
ER
VI
C
E
O
NLY
)
G
AME
CO
NTR
O
L
/
M.P.I
.
/DVI
I
N
IN
1
2
RGB IN (PC)
RGB OUTPUT
AUDIO
1 2
PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

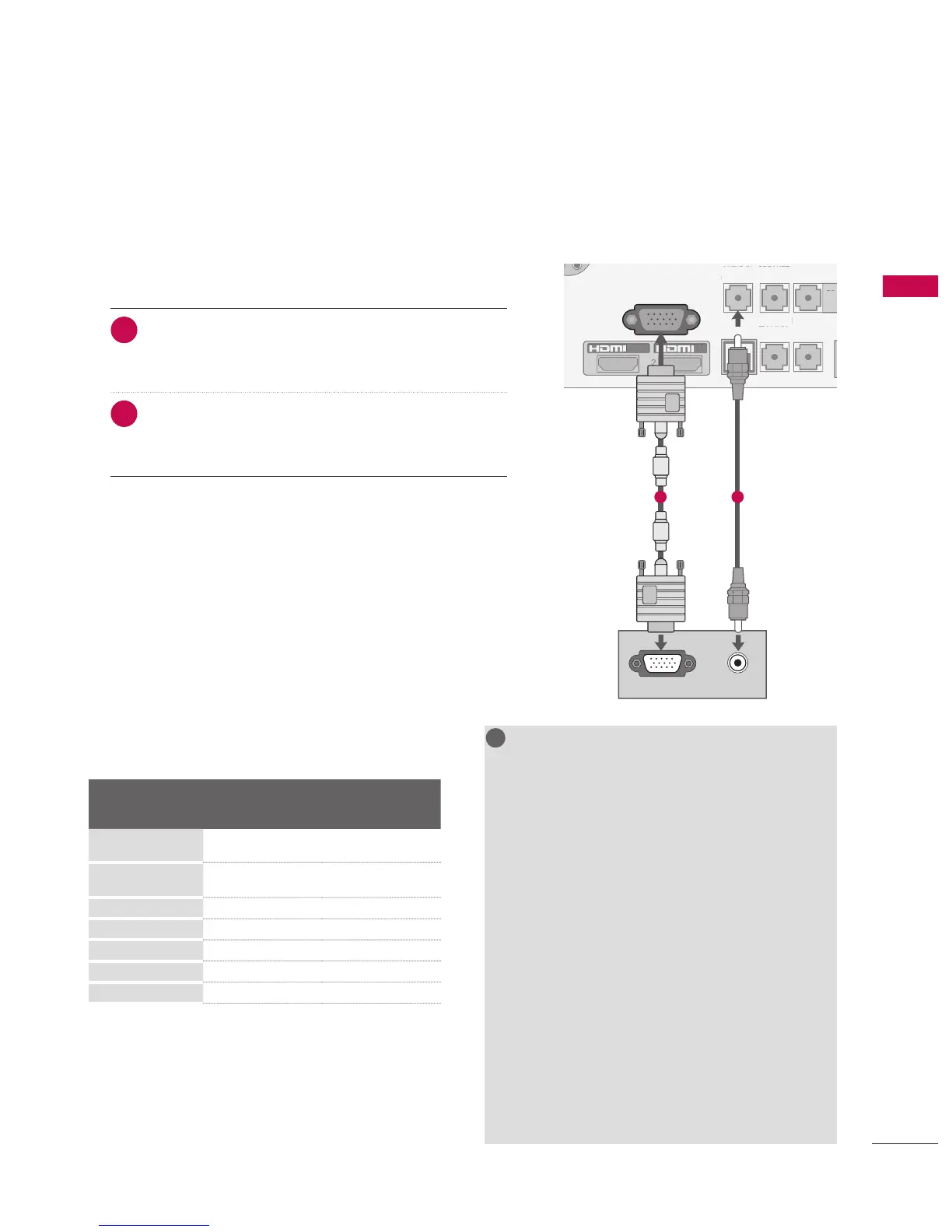

VGA (D-Sub 15-pin) Connection
1. How to connect
1
Connect the VGA output of the PC to the RGB IN
(PC) jack on the TV.
2
Connect the PC audio output to the AUDIO IN
(RGB/DVI) jack on the TV.
2. How to use
V Turn on the PC and the TV.
V Select the RGB-PC input source on the TV using the
INPUT button on the remote control.
NOTE
G To get the the best picture quality, adjust the PC
graphics card to 1360x768.
G Depending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
G In PC mode, there may be noise associated with
the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the PICTURE menu until the picture is
clear.
G Avoid keeping a fixed image on the screen for a
long period of time. The fixed image could become
permanently imprinted on the screen.
G The synchronization input form for Horizontal and
Vertical frequencies is separate.
G Depending on the graphics card, some resolution
settings may not allow the image to be positioned
on the screen properly.
!
?
!
?
! !
Supported Display Specifications
(RGB-PC, HDMI-PC)
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640x350 31.468 70.09
720x400 31.469 70.08
640x480 31.469 59.94
800x600 37.879 60.31
1024x768 48.363 60.00
1280x768 47.776 59.87
1360x768 47.712 60.015

LG 26LQ630H Specifications

General

Response time	6 ms
Display diagonal	26 \
Display brightness	- cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	Edge-Lit LED
Contrast ratio (dynamic)	50000:1
Screen format adjustments	4:3, 16:9
Supported graphics resolutions	1366 x 768
3D	No
Cable lock slot type	Kensington
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
Smart modes	Energy saving
Sound modes	Standard
Audio decoders	Dolby Digital
RMS rated power	5 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Number of OSD languages	4
On Screen Display (OSD) languages	ENG, ESP, FRE, KOR
Audio formats supported	MP3
Image formats supported	JPG
Video formats supported	DIVX, MPEG4
Product color	Black
LED indicators	Power
Panel mounting interface	100 x 100 mm
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (max)	60 W
Power consumption (standby)	1 W
Power consumption (typical)	35 W
Package depth	147 mm
Package width	742 mm
Package height	495 mm
Package weight	7303 g
Certification	UL, cUL, NOM
Sustainability certificates	RoHS, ENERGY STAR

Weight and Dimensions

Depth (without stand)	58 mm
Width (without stand)	658 mm
Height (without stand)	427 mm
Weight (without stand)	5489 g
