18
ENG
ENGLISH

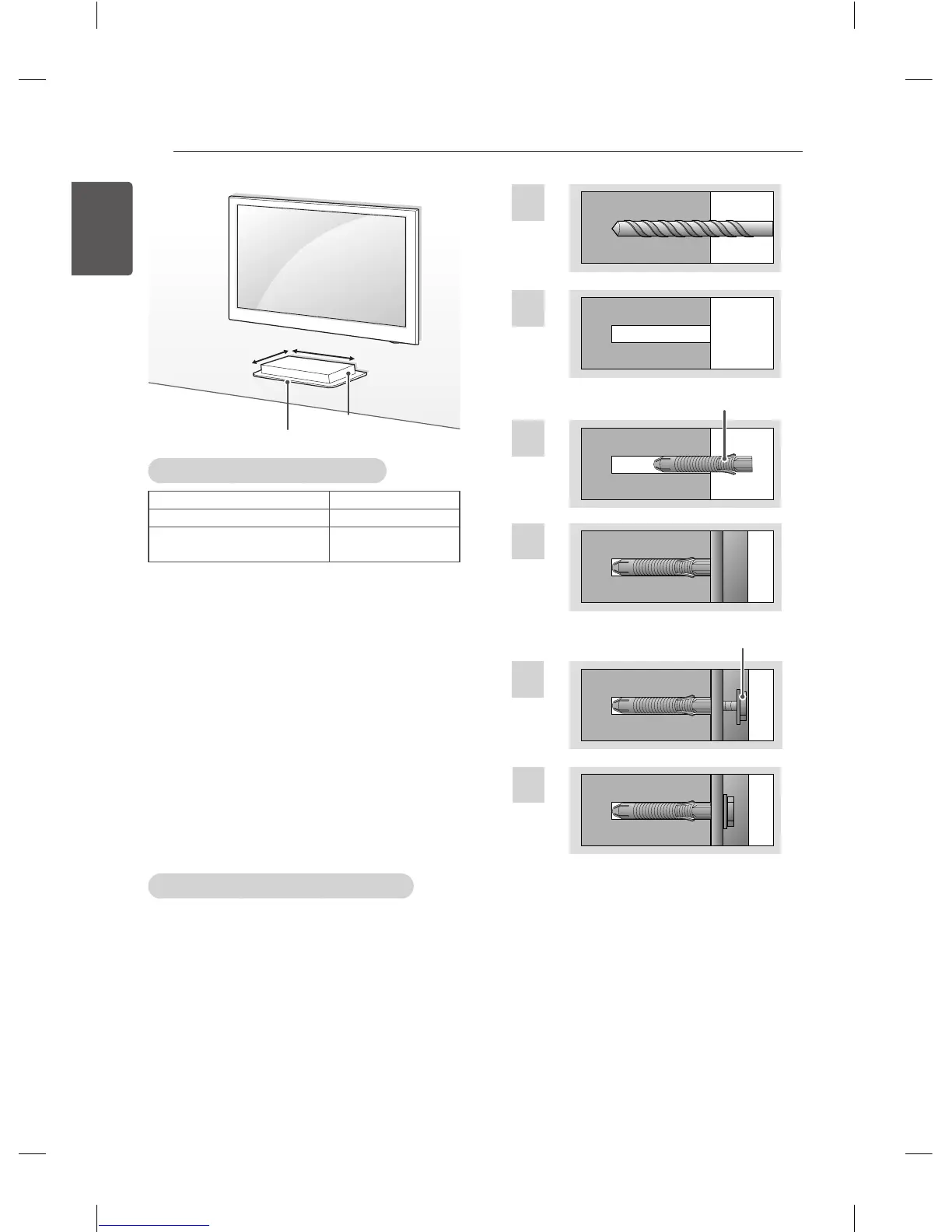

ASSEMBLING AND PREPARING
350mm
150mm
Shelf Stand
STB
(Set top box)
Shelf Stand conditions of use
STB Dimensions (W x D) 350mm x 150mm
STB Weight 2.5kg
Maximum supported
weight
3.5kg
How to attach to masonry
walls
(This feature is not available for all models.)
Use the anchors for wall material of concrete,
light concrete, strong natural stone, soft natural
stone masonry brick and hallow block that do not
crack.
Please follow the below direction
- Check the material of the wall and the thickness
of the finishing.
- When installing the product on wall material
not designated, install the product so that each
fixated location can withstand the pull out load
of 70 kgf (686 N) and shear load of 100 kgf (980
N) or above.
- Use the Ø8 mm drill bit for concrete and
hammer (Impact) drill.
1
2
4
3
Wall mount anchor
6
5
Wall mount screw
1 Use a drill bit Ø8 mm to drill a hole for the
anchor location within a depth of 80 mm -
100 mm.
2 Clean the drilled hole.
3 Insert the sealed anchor to the hole. (When
inserting the anchor, use a hammer.)
4 Set the wall mount on the wall by aligning to
the location of the hole. and, set the angle
adjusting part to face upward.
5 Align the wall mount bolt to the hole and
tighten it. Then, fasten the bolts at torque of
45 kgf/cm - 60 kgf/cm.
To Next Page
