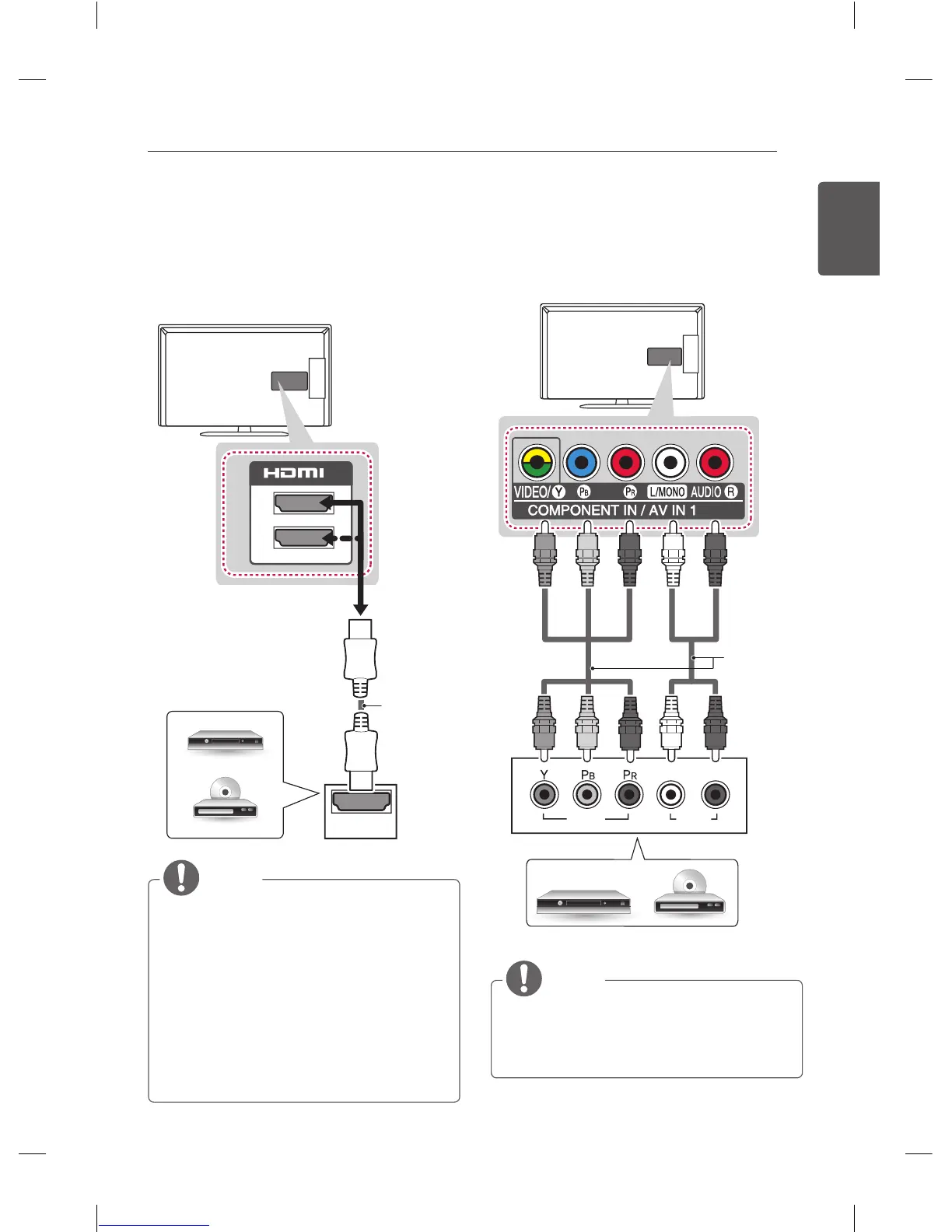

MAKING CONNECTIONS
HDMI connection
Transmits the digital video and audio signals
from an external device to the TV. Connect the
external device and the TV with the HDMI cable
as shown.
Choose any HDMI input port to connect. It does
not matter which port you use.
32LN51**32LN51**32LN51**
HDMI
IN
1
2
(*Not
Provided)
DVD / Blu-Ray / HD
Cable Box / HD STB
NOTE
y
It is recommended to use the TV with
the HDMI connection for the best image
quality.
y
Use the latest High Speed HDMI™
Cable.
y
High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p.
y
Supported HDMI Audio format : Dolby
Digital(32kHz,44.1kHz,48kHz), PCM(32k
Hz,44.1kHz,48kHz,96kHz,192kHz) *DTS
Not Supported.
Component connection
Transmits analogue video and audio signals
from an external device to the TV. Connect the
external device and the TV with a component
cable as shown.
AUDIO
VIDEO
L R
DVD / Blu-Ray / HD Cable Box
GREEN
GREEN
BLUE
BLUE
RED
RED
RED
RED
WHITE
WHITE
(*Not
Provided)
NOTE
y
If cables are not installed correctly, it
could cause this image to display in black
and white or with distorted colours.
