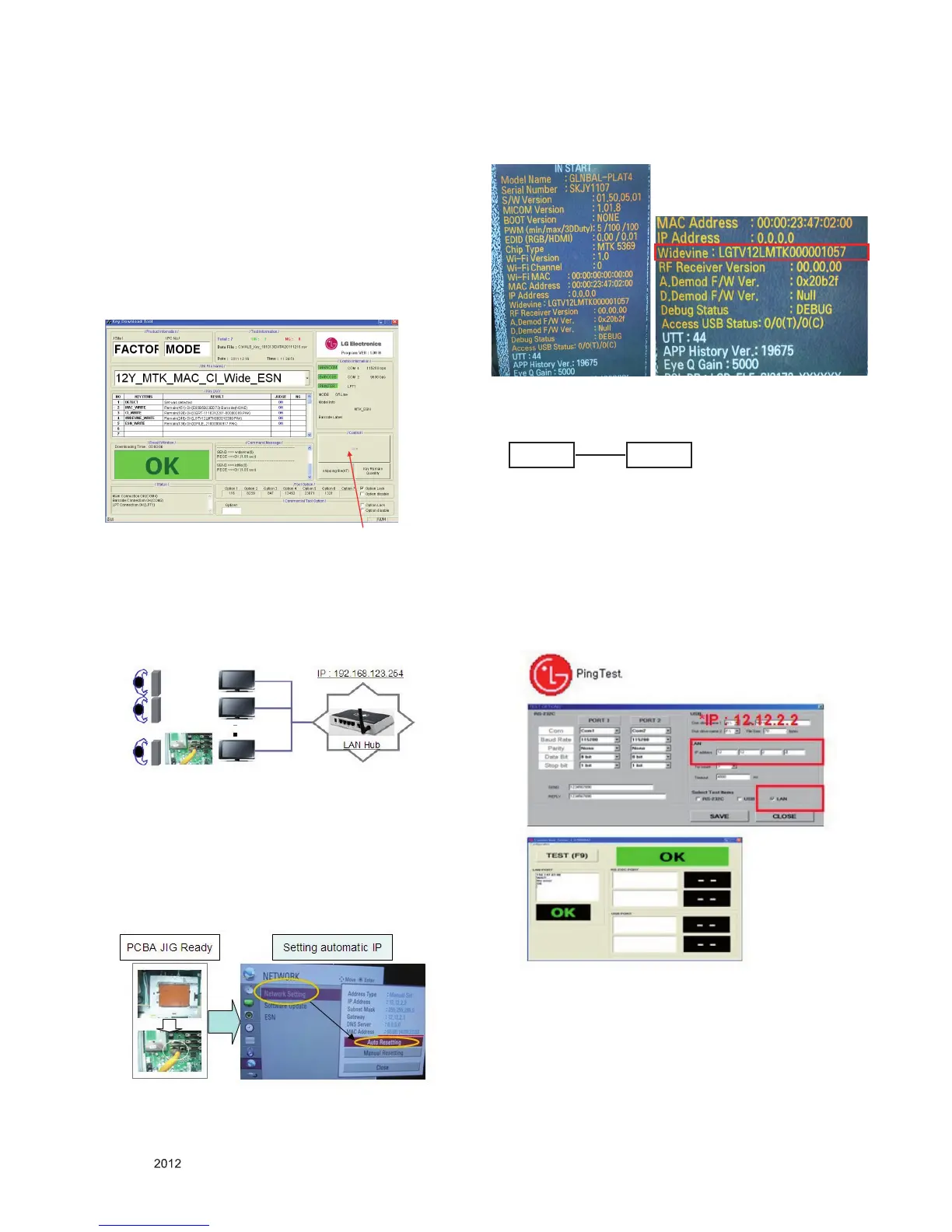

3.2. MAC address D/L, CI+ key D/L, Widevine

key D/L, ESN D/L

Connect: USB port

Communication Prot connection

▪ Com 1,2,3,4 and 115200(Baudrate)

Mode check: Online Only

▪ check the test process: DETECT -> MAC -> CI -> Widevine

-> ESN

▪. Play: START

▪. Result: Ready, Test, OK or NG

▪. Printer Out (MAC Address Label)

3.3. LAN

3.3.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

3.3.2. LAN inspection solution

▪ LAN Port connection with PCB

▪ Network setting at MENU Mode of TV

▪ Setting automatic IP

▪ Setting state confirmation

→ If automatic setting is finished, you confirm IP and MAC

Address.

3.3.3. WIDEVINE key Inspection

- Confirm key input data at the "IN START" MENU Mode.

3.4. LAN PORT INSPECTION(PING TEST)

Connect SET → LAN port == PC → LAN Port

3.4.1. Equipment setting

(1) Play the LAN Port Test PROGRAM.

(2) Input IP set up for an inspection to Test Program.

*IP Number : 12.12.2.2

3.4.2. LAN PORT inspection(PING TEST)

(1) Play the LAN Port Test Program.

(2) Connect each other LAN Port Jack.

(3) Play Test (F9) button and confirm OK Message.

(4) Remove LAN cable.

Play: Start

SET PC
