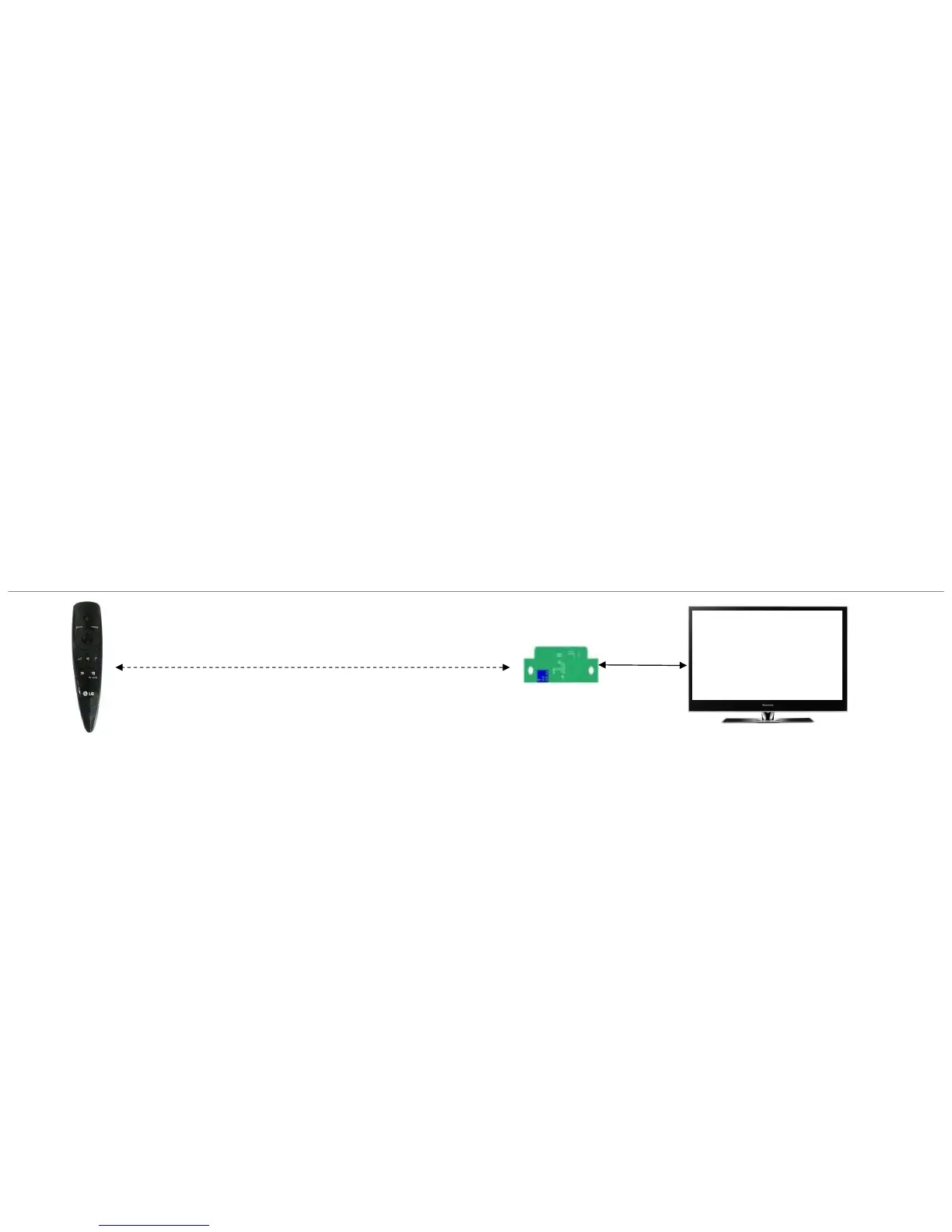

1. System

Remote

RF Receiver

UART

or USB

 Pairing Information Transmission (Send to TV after Paired)

• Static Calibration Data (Bypass only)

• Remote FW ver. (Save also in Receiver)

• BD_ADDR (Save also in Receiver)

• Pairing Information Transmission Sequence

• When it is paired, the remote sends packets(pairing success, F/W version, BD_ADDR) to the receiver.

• The receiver sends the pairing success packet to TV directly.

• F/W version and BD_ADDR packets are just saved on the receiver.

• The receiver sends F/W version or BD_ADDR packet to TV when it is required.

 Motion Data Transmission

• Period : 7.5msec

• Motion Data : gyro, accelerometer

 Voice Data Transmission

• Period : 10msec

• Voice sampling : 16khz 16bit

Æ See “6-2. Packets” on page 8.
