LG 42LS570T Service Manual

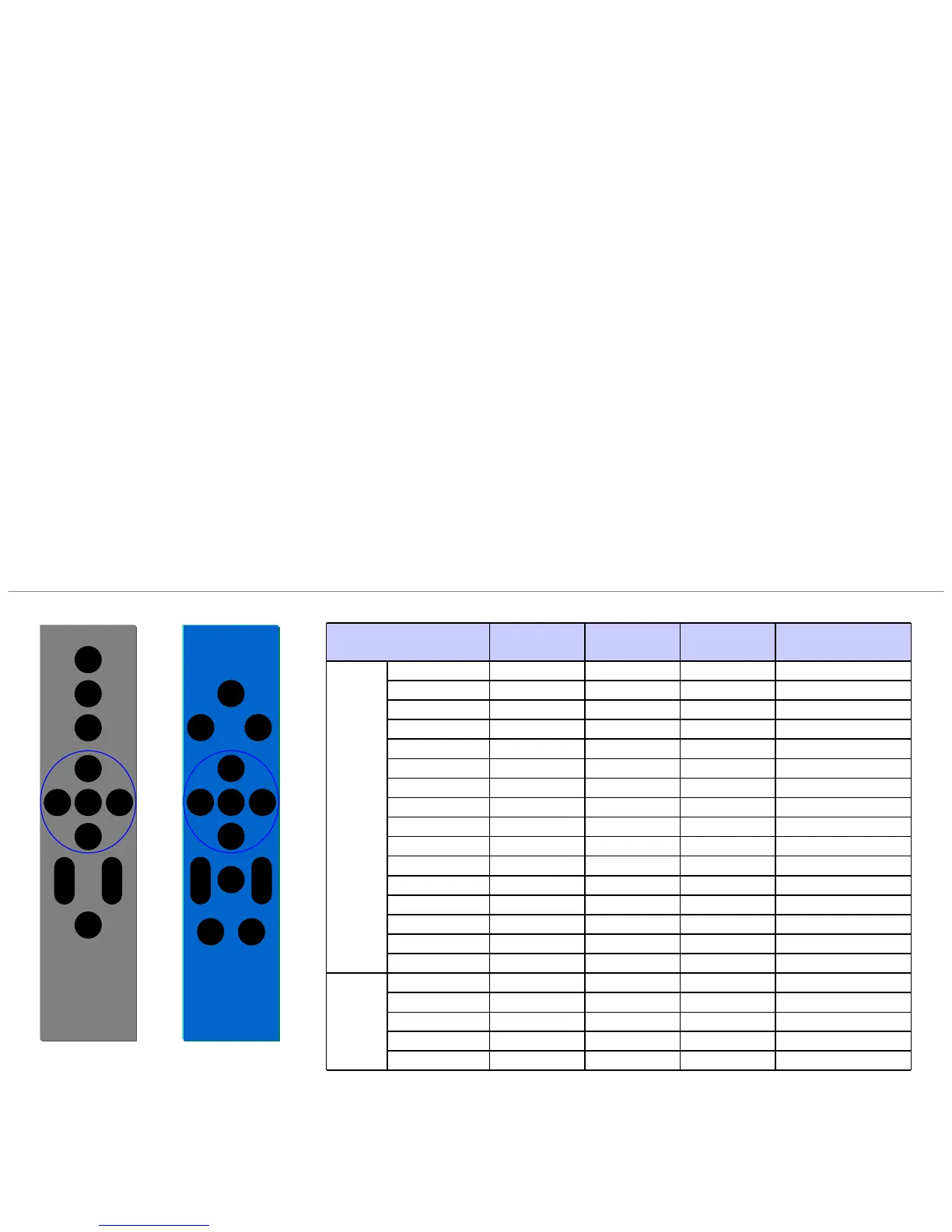

2. Remote Buttons (M3 vs. M4)
BUTTON
RF Unpaired
IR_CODE
RF Paired
RF_CODE
IR continuous
repeat
ETC.
Phsical
Buttons
POWER 0x08 0x08 Y IR only
BACK 0x28 0x8028 Y
HOME 0x7C 0x807C Y
←
0x07 0x8007 Y
→
0x06 0x8006 Y
↑
0x40 0x8040 Y
↓ 0x41 0x8041 Y
OK 0x75 0x8044 Y
CH + 0x00 0x8000 Y
CH - 0x01 0x8001 Y
VOL + 0x02 0x8002 Y
VOL - 0x03 0x8003 Y
MUTE 0x09 0x8009 Y .
3D_Mode 0xDC 0x80DC Y
MyAPPS 0x42 0x8042 Y
VOICE 0x800A Y = VOICE_START
Logical
Buttons
AUTO_WAKEUP X 0x800C
VOICE_START X 0x800A
VOICE_STOP X 0x800D
POINT_START X 0x803E
POINT_STOP X 0x803F
power
mute
home
↑
ok
← →
↓
voice
vol ch
M3 Remote M4 Remote
power
back home
↑
ok
← →
↓
mute
vol ch
3D star
