LG 42LS570T Service Manual

EPI Interface
EPI(Embedded Point-Point Interface)
Features
• Point-Point topology (support 2 Pair option)
• CDR (Clock Data Recovery)
• Bandwidth up to 1.85Gbps/pair
at FHD 120Hz 10 bit application
• Lock signal cascading and feedback to T-Con
• Embedded Control Data
Merits
• Better reliability on common noise
• No data skew and better EMI margin
• Fewer lines than mini-LVDS
• Slim PCB design
TCON
2
LOCK
VCC
1

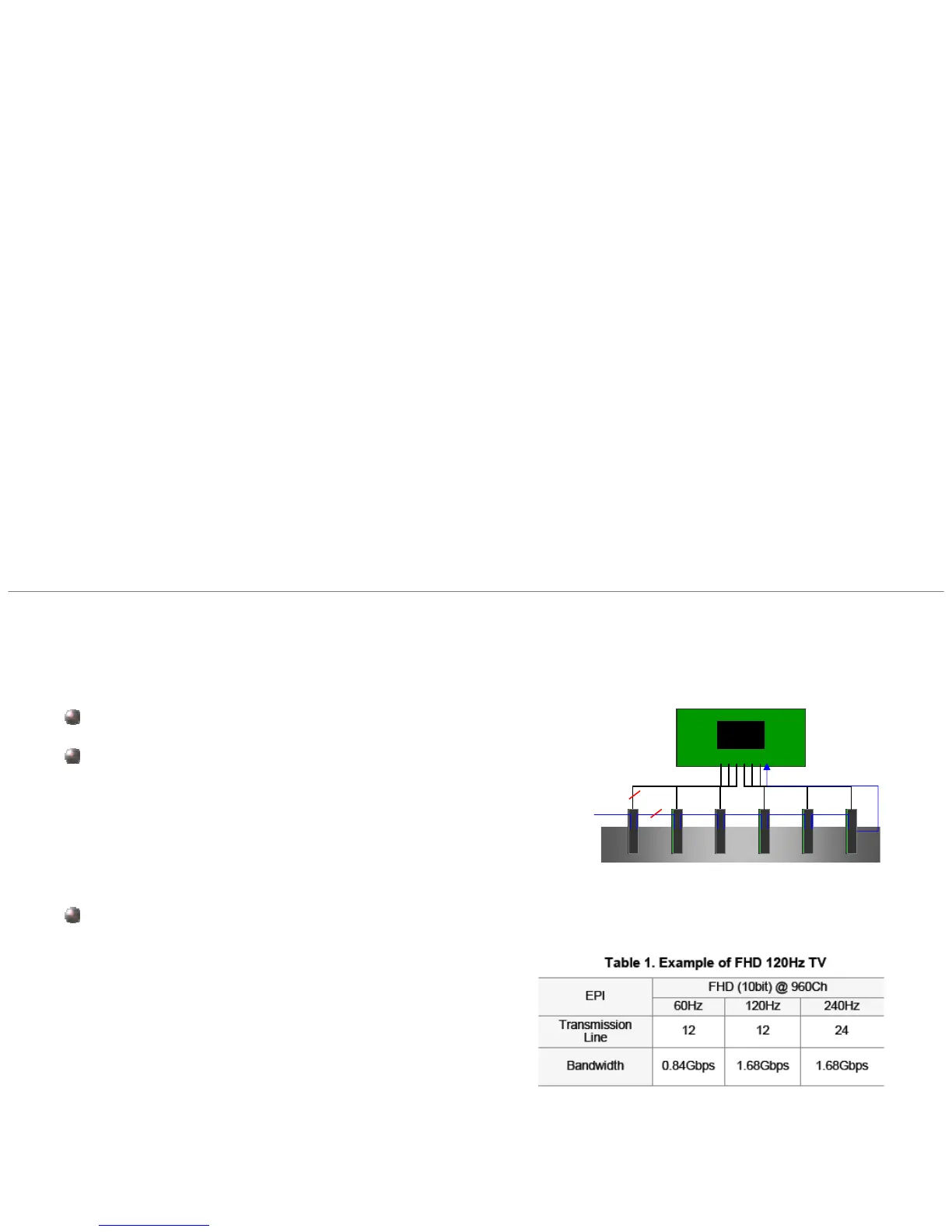

Figure1. Topology
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
