EPI Interface (mini-LVDS vs. EPI)
Comparison
HF mini-LVDS
What to change
EPI (Embedded clock P-to-P Interface)
-Difficult to upgrade bandwidth limit
-Multiple number of wires needed for higher bandwidth
HF mini-
LVDS
FHD (10bit)
60Hz 120Hz 240Hz
No. of Signal 36 36 72
Connector
60pin
(2ea)
60pin
(2ea)
80pin
(2ea)
-Better reliability on common noise
-No data skew. Better EMI margin
-Lower cost ( Cable, Connector )
-Slim S-PCB design (14mm Æ 10mm) helps slimmer TV
EPI
FHD (10bit)
60Hz 120Hz 240Hz
960ch 960ch 720ch
No. of Signal 12 12 32
Connector -
50 pin
(2ea)
70pin
(2ea)

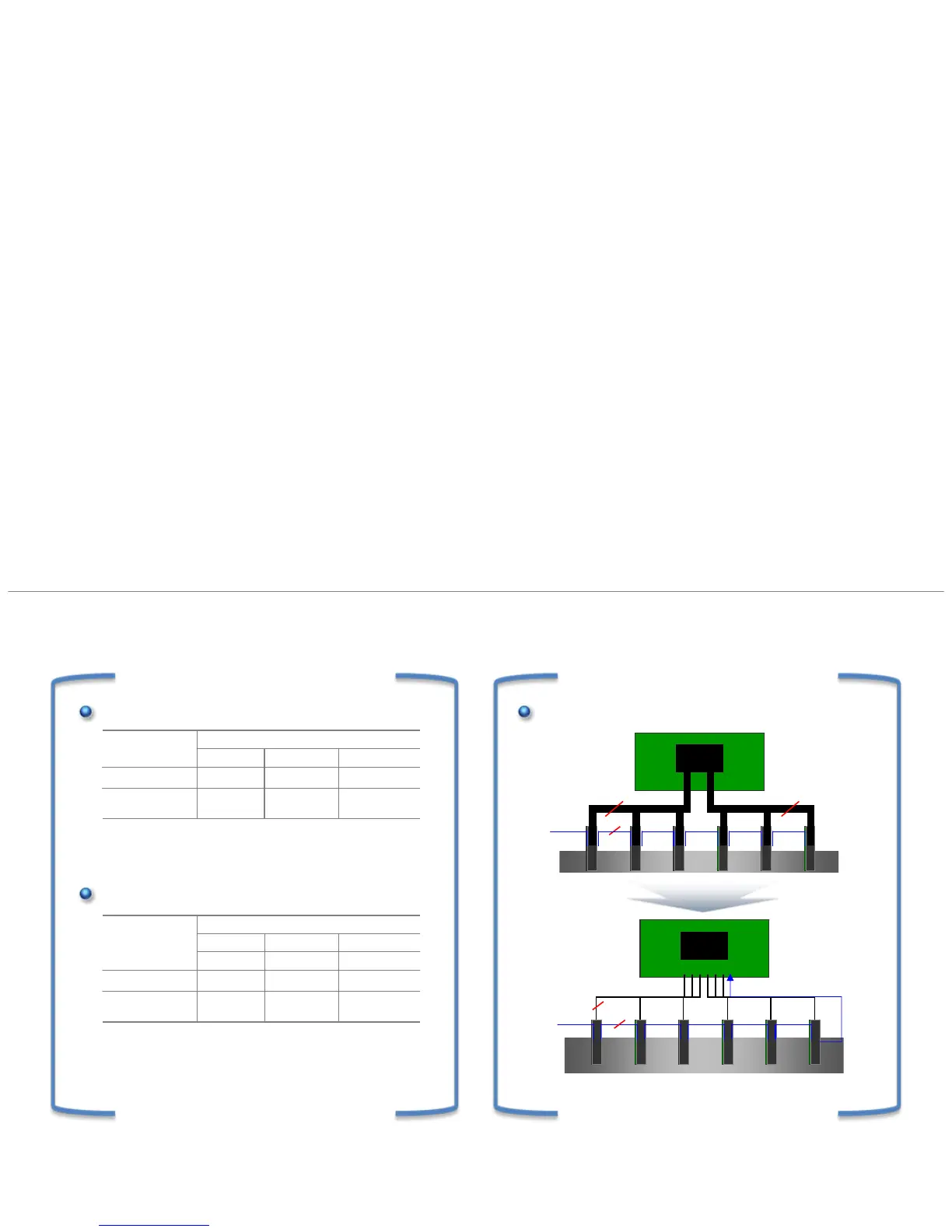

LCM (T-con to S-Driver IC)
TCON
2
LOCK
VCC
1
TCON
18
VCC
1
18
HF mini-LVDS
EPI
* Bandwidth Capability
- FHD 120Hz 10Bit : 594Mbps@36Lines → 1.65Gbps@12Lines
- FHD 240Hz 10Bit : 594Mbps@72Lines → 1.25Gbps@32Lines
(FHD 120Hz)
(FHD 120Hz)
