PICTURE ID Settings
• Only applies to certain models.
[PICTURE ID] is used to change the settings of a
specific set (display) using a single IR receiver for multi-
vision. Communication is possible between a monitor
with an IR receiver and other monitors using RS-232C
cables. Each monitor is identified by a Set ID. If you
assign the [PICTURE ID] using the remote control, only
displays with matching PICTURE ID and Set ID can be
controlled remotely.

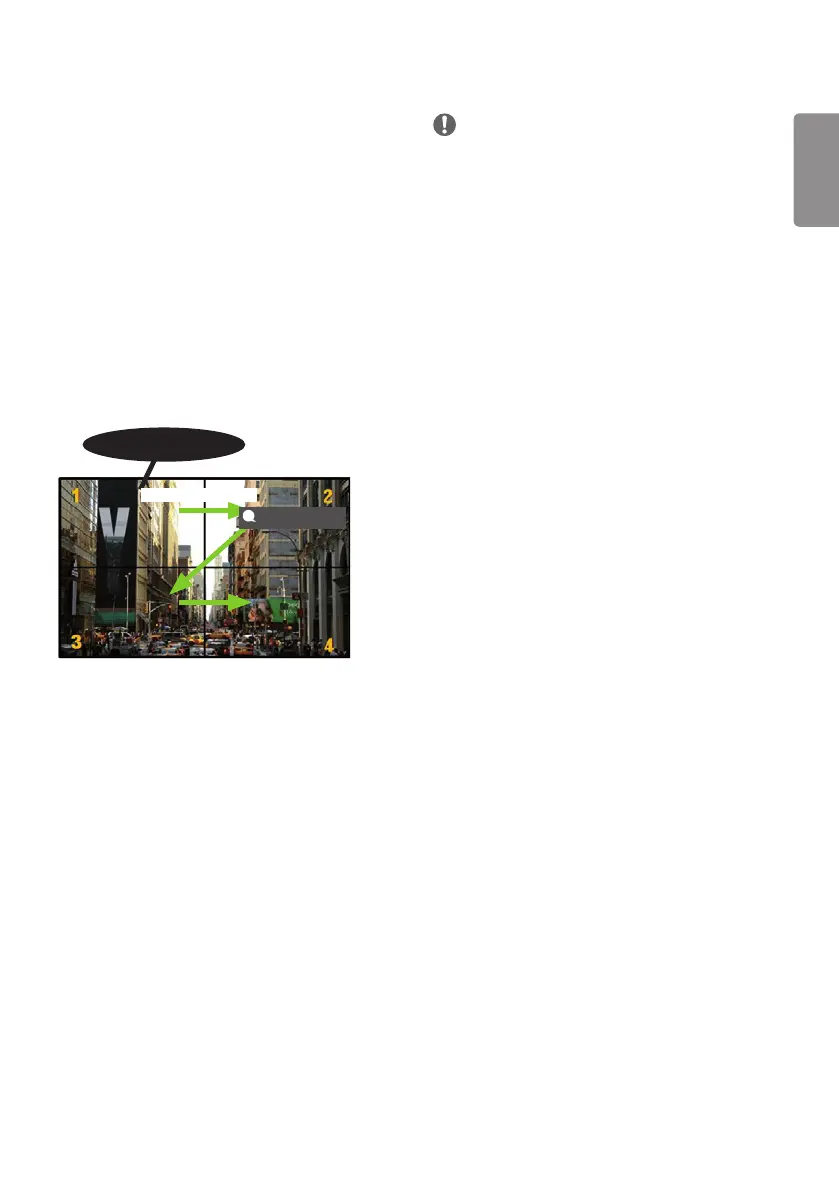

1 Assign the Set ID to the installed monitors as
shown below.
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
IR & Light Sensor
RS-232C cables
PICTURE ID
2 Press the red ON button on the remote control to
assign the PICTURE ID.
3 Assign the Set ID to the selection of your choice.
• A set with a different Set ID from the PICTURE ID
cannot be controlled by IR signals.
NOTE
• If PICTURE ID is set to 2, only the upper right monitor,
which has a Set ID of 2, can be controlled by IR
signals.
• If you press the green OFF button for PICTURE ID, the
PICTURE ID for all monitors are turned off. If you then
press any button on the remote control, all monitors
can be controlled by IR signals regardless of Set ID.
