LG 42LV5500 User Manual

IR CODES
'HSHQGLQJRQPRGHO
How to Connect
&RQQHFW\RXUZLUHGUHPRWHFRQWUROWRWKH5HPRWH&RQWUROSRUWRQWKH79
Remote Control IR Codes

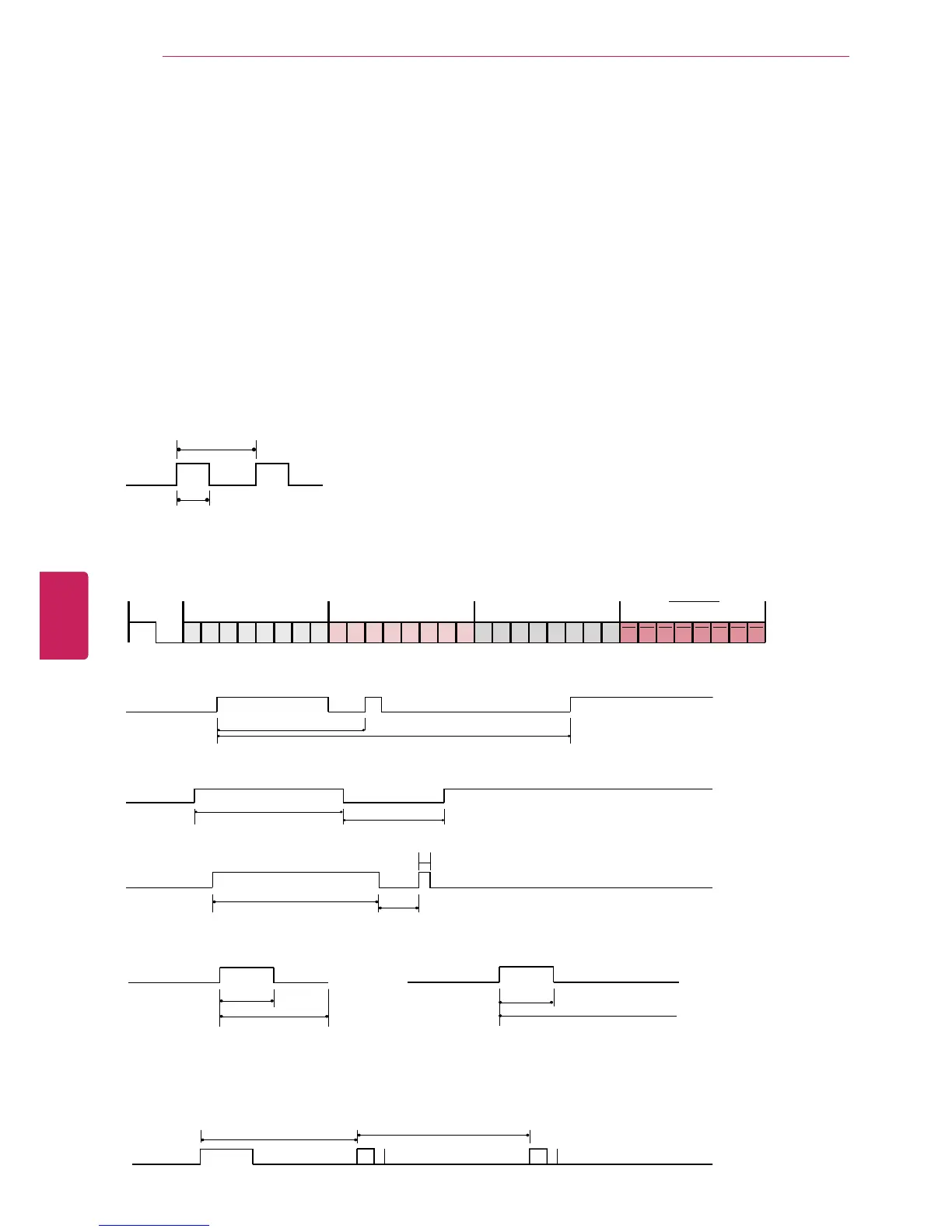

Output waveform
6LQJOHSXOVHPRGXODWHGZLWKN+]VLJQDODWN+]
T1
Tc
Frame configuration
VWIUDPH
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Lead code Low custom code High custom code Data code Data code
5HSHDWIUDPH
Repeat code
Tf
Lead code
4.5 ms
9 ms
Repeat code
2.25 ms
9 ms
0.55 ms
Bit description
0.56 ms
1.12 ms
0.56 ms
2.24 ms
Bit “0” Bit “1”
Frame interval: Tf
7KHZDYHIRUPLVWUDQVPLWWHGDVORQJDVDNH\LVGHSUHVVHG
Tf Tf
Tf=108ms @455KHz
124
ENG
ENGLISH
IR CODES

LG 42LV5500 Specifications

General

Style	Flat
Color	Black
Screen Type	LED
Stand Type	Simple
Wall Mount	VESA 200 x 200 mm
Tilt	Yes
Sound	Dolby Pulse
Features	3D
Connectivity	-
SmartTV	Smart TV webOS 3.0
Interface Connectors	HDMI
Operation Conditions	-
Screen Size	42 in
Aspect Ratio	16:9
Resolution	1920 x 1080
Refresh Rate	-
Viewing Angle	-
Response Time	-
Brightness	-
Contrast Ratio	-
Color Support	-
Battery Type
Power Supply	50/60 Hz
Power Consumption	Standby Mode: 0.3W
Depth with Stand	10.1 in
Height with Stand	26.9 in
Width with Stand	39.3 in
Net Weight with Stand	34.2 lb
Depth without Stand	3.1 in
Height without Stand	24.2 in
Width without Stand	39.3 in
Net Weight without Stand	29.3 lb
