CONNECTIONS & SETUP
22
CONNECTIONS & SETUP
â–
This set can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if
you do receive Digital signals from a digital set-top box or other digital external device, refer to the figure
as shown below.

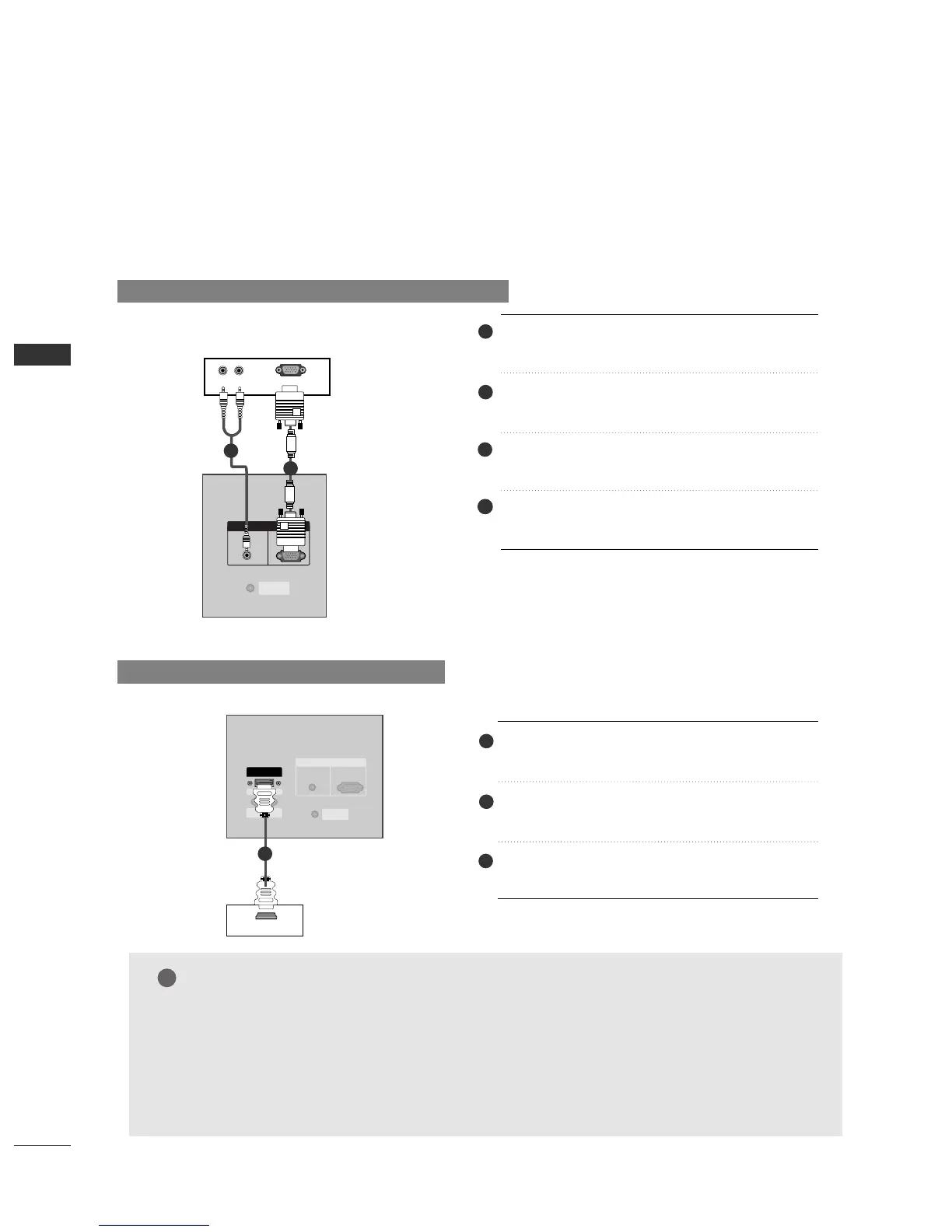

STB(SET-TOP BOX) SETUP
When connecting with a D-sub 15 pin cable
Connect the RGB output of the digital set-top
box to the
RRGGBB IINN ((PPCC//DDTTVV))
jack on the set.
Connect the audio outputs of the set-top box
to the
AAUUDDIIOO ((RRGGBB//DDVVII))
jack on the set.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Select
RRGGBB
input source with using the
IINNPPUUTT
button on the remote control.
DDiiggiittaall
SSeett--ttoopp
BBooxx
When connecting with a HDMI cable
Connect the HDMI output of the digital set-
top box to the
HHDDMMII//DDVVII IINN
jack on the set.
Select
HHDDMMII//DDVVII
input source with using the
IINNPPUUTT
button on the remote control.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
DDiiggiittaall SSeett--ttoopp BBooxx
GG
Set can receive the video and audio signal simultaneously with using a HDMI cable.
GG
If the digital set-top box supports Auto HDMI function, output resolution of the digital set-top
box will be automatically set to 1280x720p.
GG
If the digital set-top box does not support Auto HDMI, you need to set the output resolution
appropriately. To get the best picture quality, adjust the output resolution of the digital set-top
box to 1280x720p.
