LG AN-WL100W User Manual

10
PREPARATION
PREPARATION

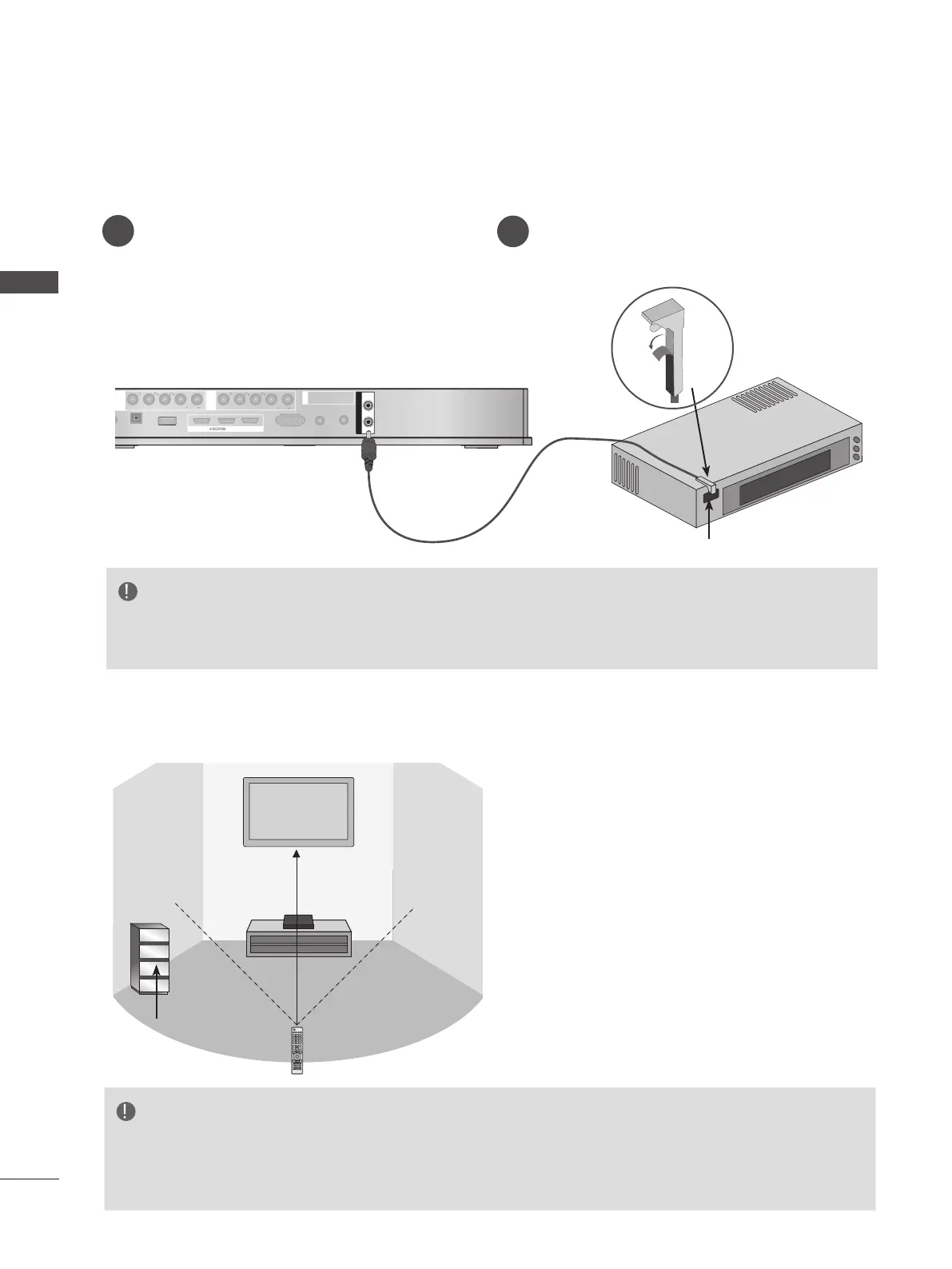

■ The IR blaster allows the LG TV to control external equipment, like a cable box.
Connect the provided IR Blaster cable to the
IR Blaster terminal on the Wireless Media Box.
1
After removing the protection paper from the
IR Blaster cable, adhere it to the external
equipment as shown.
2
1
2
DC IN 12V
OPTICAL DIGITAL
AUDIO OUT
SERVICE ONLY
3
RGB IN(PC)
AUDIO IN
RGB/DVI
SERVICE ONLY
A
B
COMPONENT / AV IN 1
COMPONENT / AV IN 2
A
R
L(MONO)
AUDIO
VIDEO
B
R
L(MONO)
AUDIO
VIDEO
IR BLASTER
L R
L R
/ DVI IN
NOTE
►When you attach the IR Blaster sensor near the remote control sensor of the external device, the
signal can be detected more efficiently.
IR Receiver
1
2
DC IN 12V
OPTICAL DIGITAL
AUDIO OUT
SERVICE ONLY
3
RGB IN(PC)
AUDIO IN
RGB/DVI
SERVICE ONLY
A
B
COMPONENT / AV IN 1
COMPONENT / AV IN 2
A
R
L(MONO)
AUDIO
VIDEO
B
R
L(MONO)
AUDIO
VIDEO
IR BLASTER
L R
L R
/ DVI IN
Install the external device with the IR Blaster
installed at a location it is not affected by the sig-
nal from the remote controller to the TV.
When the external device with the IR Blaster
installed receives the signal from the remote con-
troller simultaneously with the TV, it may not
operate.
Body of external
device with IR
Blaster installed
NOTE
►For some external devices, the IR Blaster may not operate depending on the performance of the
IR receiver.
►The operation may be delayed due to the sensitivity of the wireless signal.
ATTACHING THE IR BLASTER
OPTIMAL LOCATION OF EXTERNAL DEVICE WITH IR
BLASTER INSTALLED

LG AN-WL100W Specifications

General

Compatibility	LG LX9500, LEX9, LE8500, LE7500, LX6500, LE5500, LE5400, LD650, LD550, PK950, PK750
Product color	Black
Number of products included	1 pc(s)
Package dimensions (W x D x H)	14.8 x 3.9 x 10.9 \

Weight and Dimensions

Weight	2926 g
