LG AN-WL100W User Manual

4
PREPARATION
PREPARATION
* ID Label of Wireless Media Box is located at the bottom of Wireless Media Box.
IN 4
AV1 AV2
COM1 COM2 RGB WIRELESS
A
R
L(MONO)
AUDIO
VIDEO
B
1
2
SERVICE ONLY
3
RGB IN (PC)
AUDIO IN
RGB/DVI
SERVICE ONLY
IR BLASTER
A
B
COMPONENT / AV IN 1
COMPONENT / AV IN 2
R
L(MONO)
AUDIO
VIDEO
OPTICAL DIGITAL
AUDIO OUT
DC IN 12V
HDMI1 HDMI2
HDMI3
HDMI4
L
R
L
R
/ DVI IN
1
2 3
4
1
2
3
4

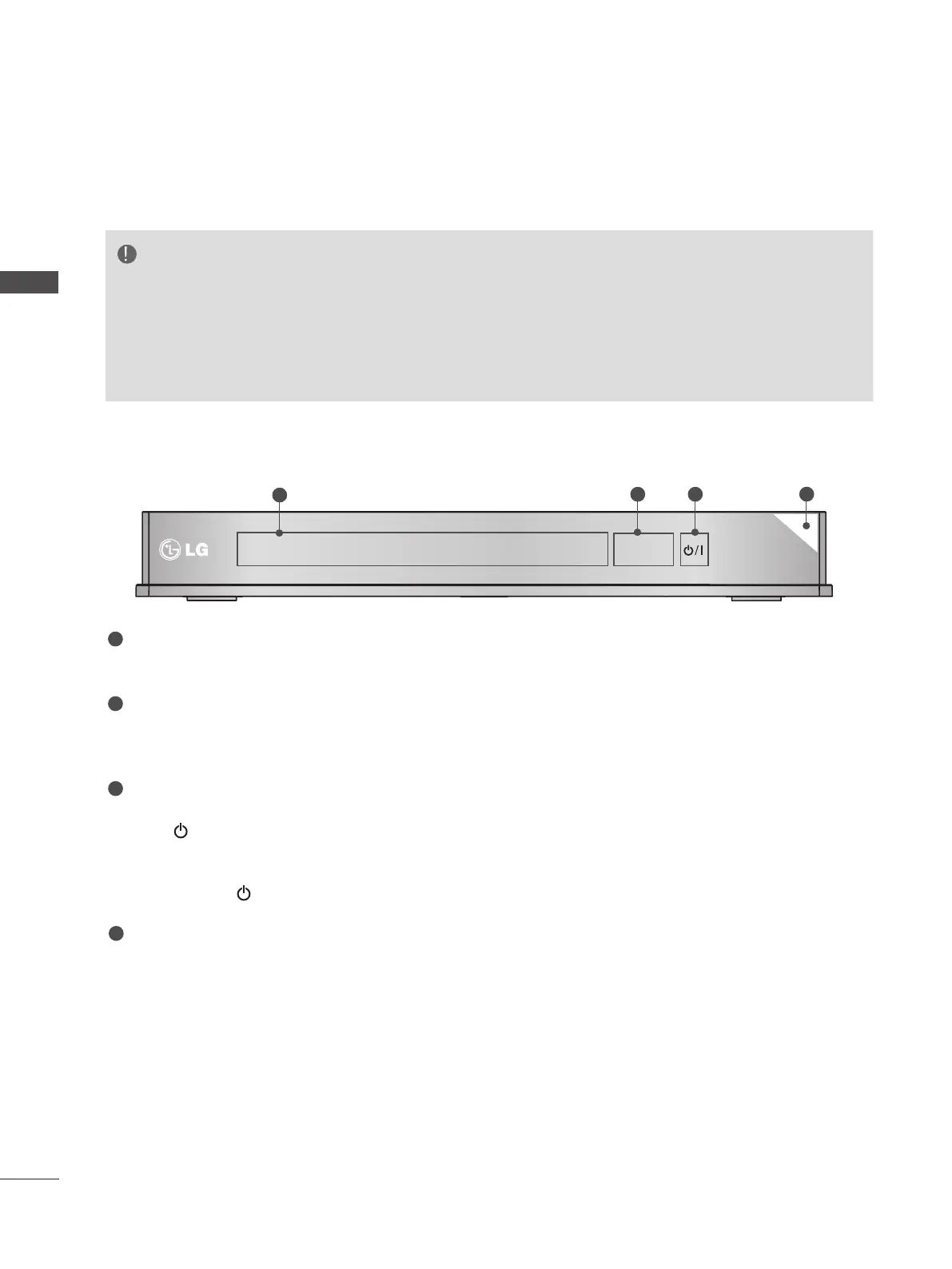

Input Source Indicator & INPUT touch button
Select the input source by touching.
Wireless Connection Indicator
It will flash when trying to connect to a wireless network and be turned on when
connected.
POWER touch button
Turn the Wireless Media Box on or off by touching.
If the
/ I (Power) button of the Wireless Media Box is not turned on, the
Wireless Media Box will not be turned on even when turn on the power of the TV.
If the Wireless Media Box is not turned on even after turning the power of the TV
on, check the
/ I (Power) button of the Wireless Media Box.
Power/Standby Indicator
Illuminates red in standby mode.
Illuminates white when the Wireless Media Box is switched on.
■ Image shown may differ slightly from your device.
NOTE
► This product is only for home use.
► Do not use this product in medical institutions or near medical devices. It may cause some med-
ical devices to malfunction.
► Wireless device used to this instrument could be set up and used only to this instrument.
►When using the external device connected to the Wireless Media Box, some functions of the TV
menu may not work.
FRONT PANEL CONTROLS

LG AN-WL100W Specifications

General

Compatibility	LG LX9500, LEX9, LE8500, LE7500, LX6500, LE5500, LE5400, LD650, LD550, PK950, PK750
Product color	Black
Number of products included	1 pc(s)
Package dimensions (W x D x H)	14.8 x 3.9 x 10.9 \

Weight and Dimensions

Weight	2926 g
