ELECTRICAL TROUBLESHOOTING GUIDE

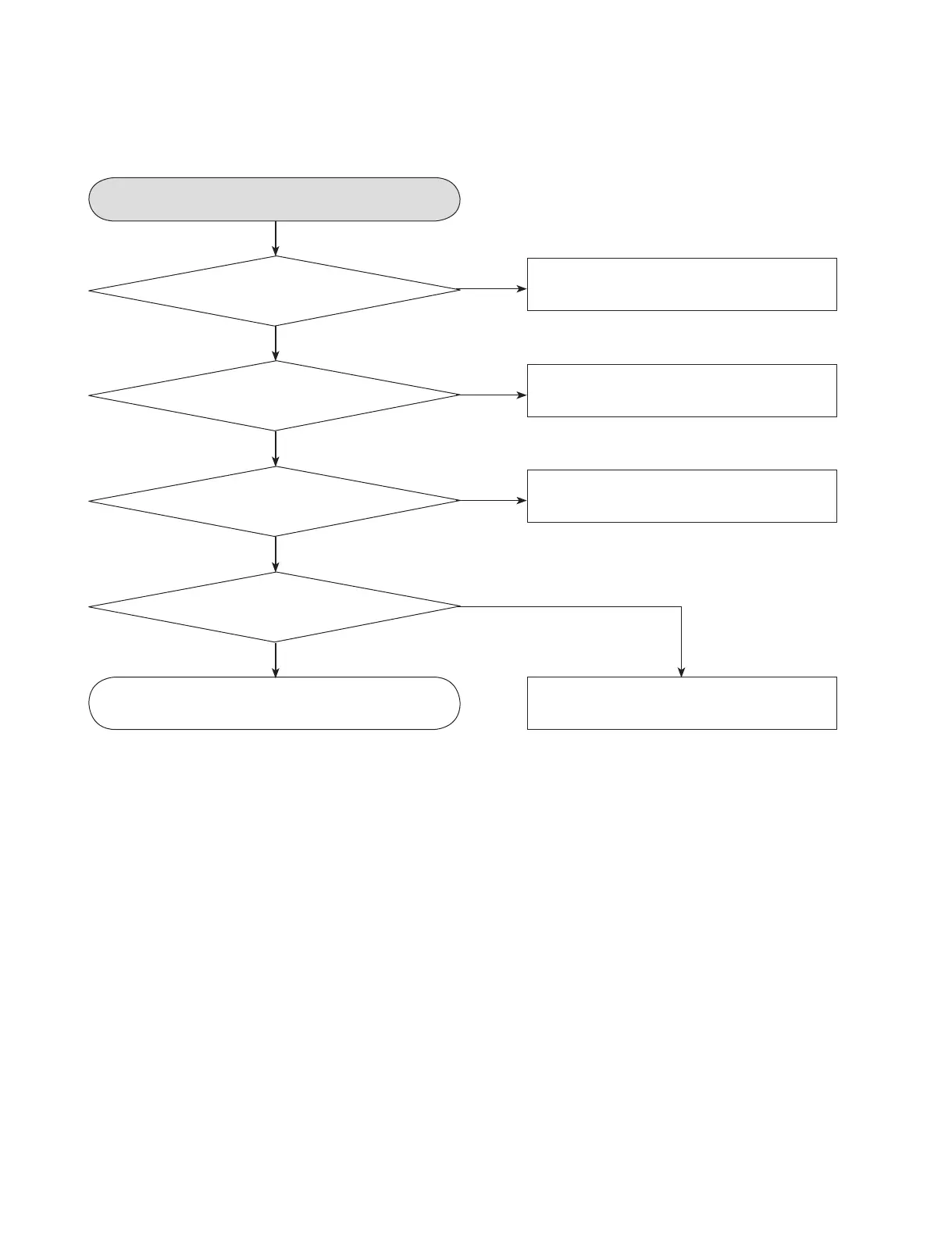

Sled operating is abnormal.

Check the connection LPM302.

Replace the LIC501.

Is there sled

control signal output?

(LIC501 Pin56,57)

Check the PCB pattern and components

between LIC501 and LIC201 sled signals

Is there

sled drive voltage input?

(LIC201 Pin2,3 )

YES

Check the LIC201.

Is there

sled drive voltage output?

(LIC201 Pin6,8,9,10)

YES

Is there

sled drive voltage output?

(LPM302 Pin1,2,3,4)

YES

Replace the sled motor.

YES

4. SLED OPERATING IS ABNORMAL
