ELECTRICAL TROUBLESHOOTING GUIDE

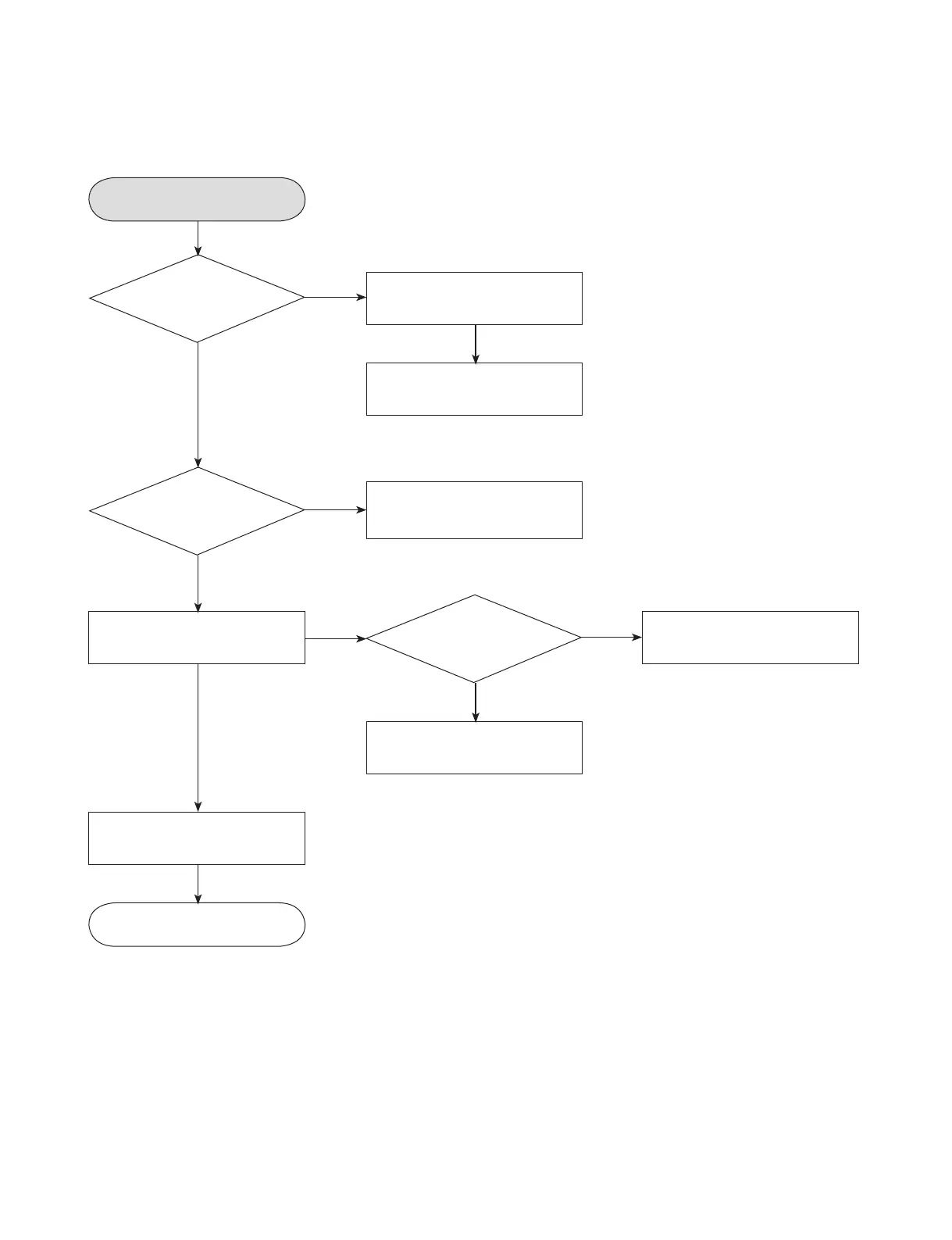

Laser operating is abnormal

Replace the traverse

assembly. (Pick-up)

Is there

LDD data signal

communication? (LIC501

Pin44,45,46,

90)

Does

laser turn on?

YES

Replace the LIC501.

Replace the traverse assembly

and scan the Pick-up barcode.

Is there

LDD vcc voltage input?

(LIC201 Pin32, 33)

Pin32 : Check the 5V path.

Pin33 : Check the 8.1V path

and LIC902 operation

Check the main PCB Pick-up

interface circuit

Check the signal pattern and

application components

Check the LDD data signals.

(LCN700 Pin39,40,41,42)

Check the connector

LCN700 and Pick-up FFC

cable connection

YES

7. LASER OPERATING IS ABNORMAL
