LG CM4330 User Manual

3-7
ONE POINT REPAIR GUIDE
NO OPERATION OF MD
When no sound output in the CD function, you can not listen to music reading data
from a CD disc if the servo motors in MD don’t work. This step is for checking the
SLED MOTOR among them.
4-2. SLED MOTOR
4-2-1. Solution
Please check and replace IC301, IC302 on MAIN board.
4-2-2. How to troubleshoot (Countermeasure)
1) Check the SLDO signal from Pin15 of IC302.
 If no signal, check 3.3 V(RF) and X301.
2) Check the SLED+ & SLED- from IC301 to CN303 for driving SPINDLE motor. It is about 2.9 Vp-p.
 If no signal, check +1.8 V and +5 V for IC301.
3) Check if the FFC cable is solidly connected between CN303 and MD.
4) Check the MD.
 If the sled motor is sort-circuit or has any trouble, it can not move the pickup module.
Please check the function after changing another MD.
4-2-3. Service hint (Any picture / Remark)
zwRGGju[W\
zwT Gju[W\
zsRGGjuZWZ
zsTGjuZWZ
hG
YU`} T
pjZWX
zsT
XYGGjuZWZ
zsGR
XXGGjuZWZ

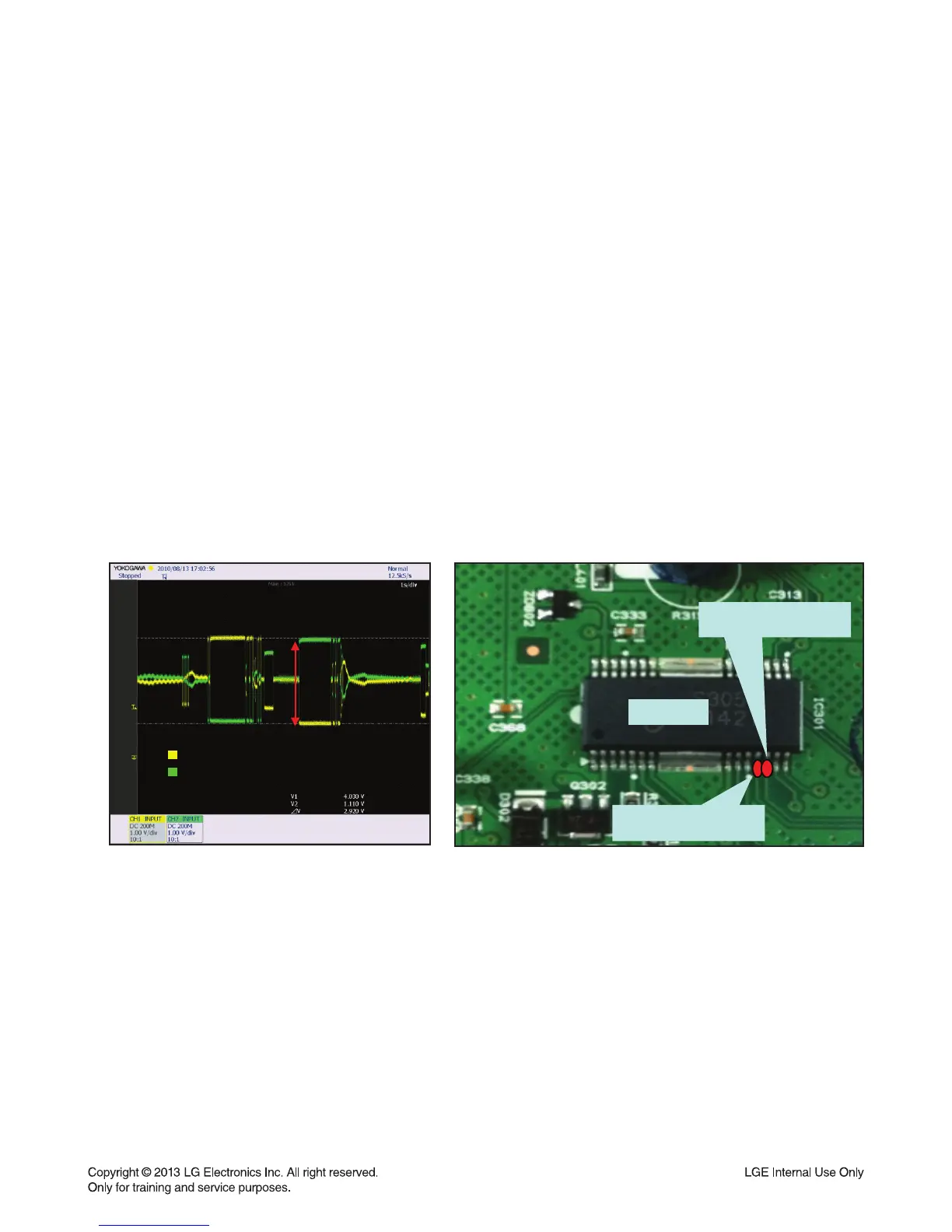

< Waveform of SLED- & SLED+
for driving SLED motor >
< Signal check point >

LG CM4330 Specifications

General

Karaoke	No
Bass reflex	Yes
Speaker type	4-way
RMS rated power	180 W
Number of speakers	2
Type	Home audio mini system
Product color	Black
Disc types supported	CD-R, CD-RW
Playback disc formats	CD audio
Audio formats supported	MP3, WMA
Supported radio bands	AM, FM
Display type	-
Apple docking compatibility	Not supported
USB 2.0 ports quantity	1
Power source	AC
Volume control	Rotary
