ONE POINT REPAIR GUIDE
NO SOUND
There is no sound output by DIGITAL AUDIO AMP DAMAGE, repair the set according
to the following guide.
5-2. BY DIGITAL AUDIO AMP DAMAGE (IN ALL FUNCTIONS)
5-2-1. Solution
Please check and replace IC701, IC702 on MAIN board.
5-2-2. How to troubleshoot (Countermeasure)
1) Check FL±, FR± & SW± signals from IC601 to IC701 & 702 each input function.
If no signal, check if I2S audio signals are entered to IC601.
Refer to “I2S audio signal interface” on Item 5-1.
2) Check PVDD.
If PVDD is abnormal, check the SMPS.
3) Check +12 V for driving the gate of AMP IC.
a. All the powers are normal, but if +12 V is low, there is possible for AMP IC to be damaged.
b. Remove L707, L708, L709 and L712 one by one.
When removed a inductance, if +12 V is recovered, the IC connected to it was damaged.
c. Replace the IC with a new one.
4) Check the impedance between IC701/IC702_OUT-A/OUT-B & GND.
a. If the impedance is 0 Ω, the IC must be damaged.
b. After removing the heat sink, replace it with a new one.
5-2-3. Service hint (Any picture / Remark)
pj^WX
pj^WY
mySGms
z~
jt[\YW

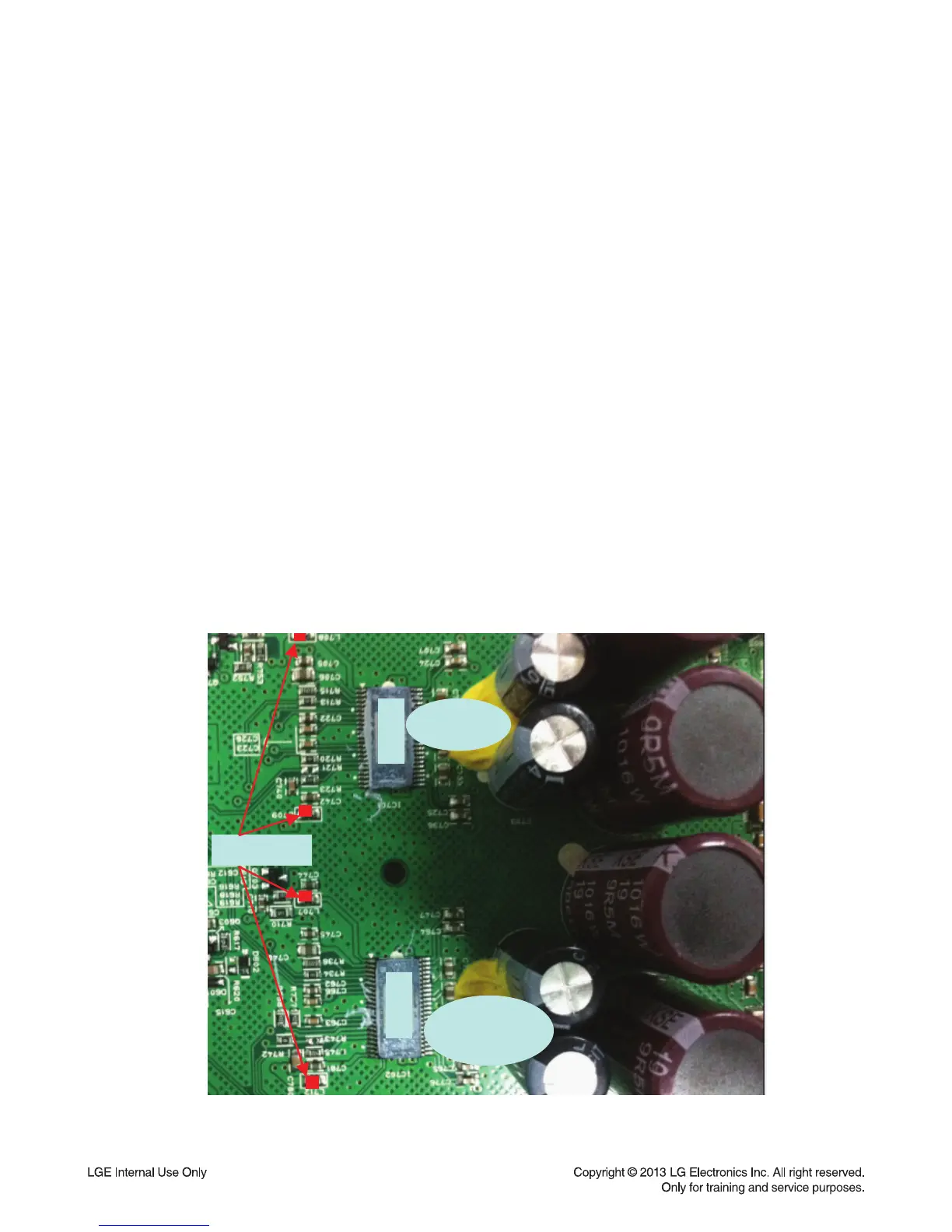

< Signal check point >
To Next Page
