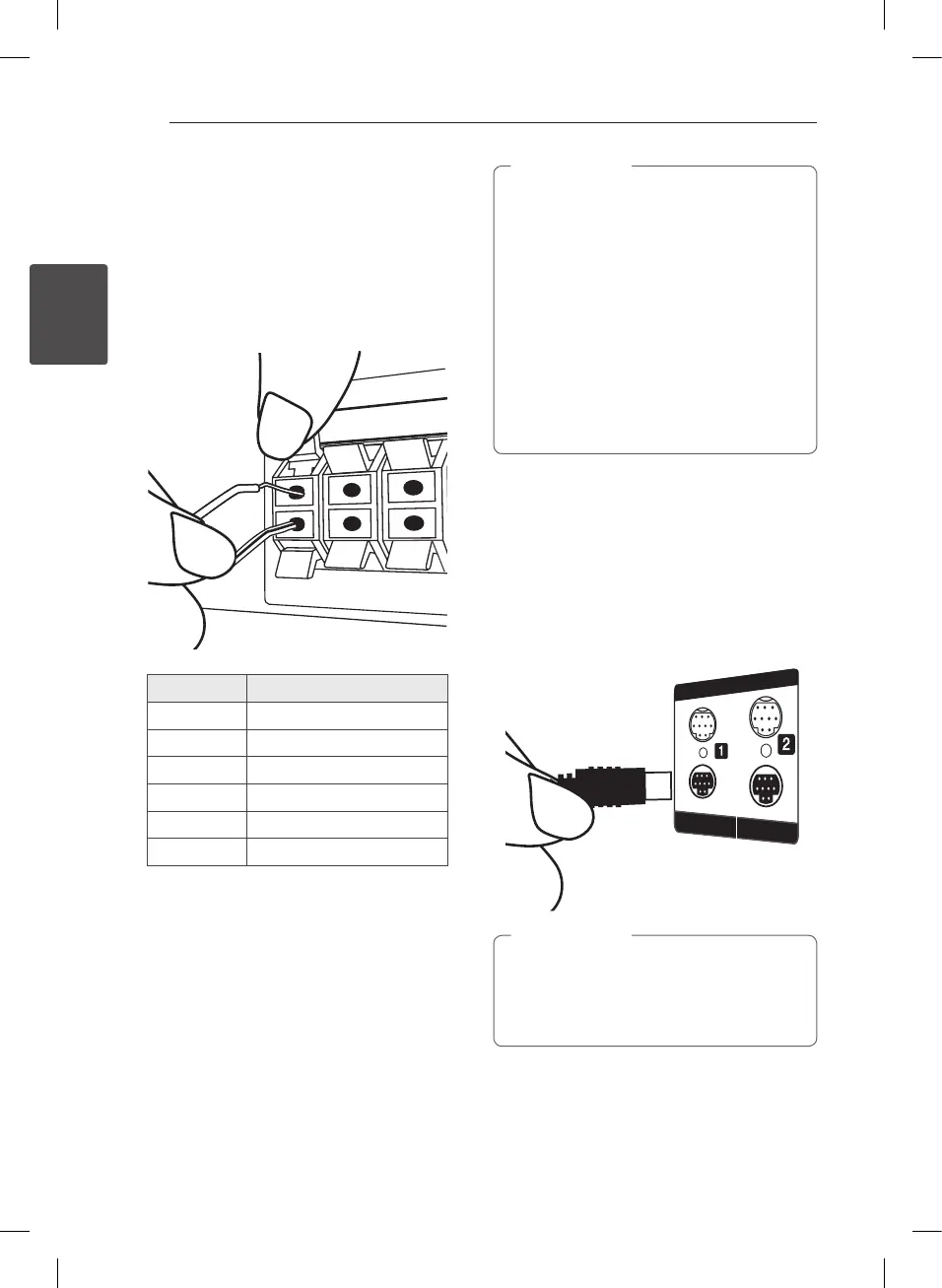

LG CM9520 User Manual

Connecting12
Connecting
2
Attaching the speakers to the
unit
To connect the cable to the unit, press each plastic
nger pad to open the connection terminals on the
unit. Insert the wire and release the nger pad.
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
Color Speaker
Grey Rear R
Blue Rear L
Orange Sub woofer 1
Orange Sub woofer 2
Red Front R
White Front L
y
Be careful to make sure children not to put
their hands or any objects into the *speaker
duct.
*Speaker duct: A hole for plentiful bass
sound on speaker cabinet (enclosure).
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
y
Make sure to install the speaker with other
people in order to prevent it from falling
and causing injuries to the installer.
>
Caution
Attaching the woofer cables to
the unit
To connect the woofer cable (Woofer Light Cable)
to the unit, insert the cable to WOOFER SYSTEM
connectors on the unit.
y
Make sure arrows on the ends of cables
should be toward the to upper side.
y
Make sure to connect the cables to
connectors tightly on the unit.
>
Caution
