LG DLE1101W Service Manual

21

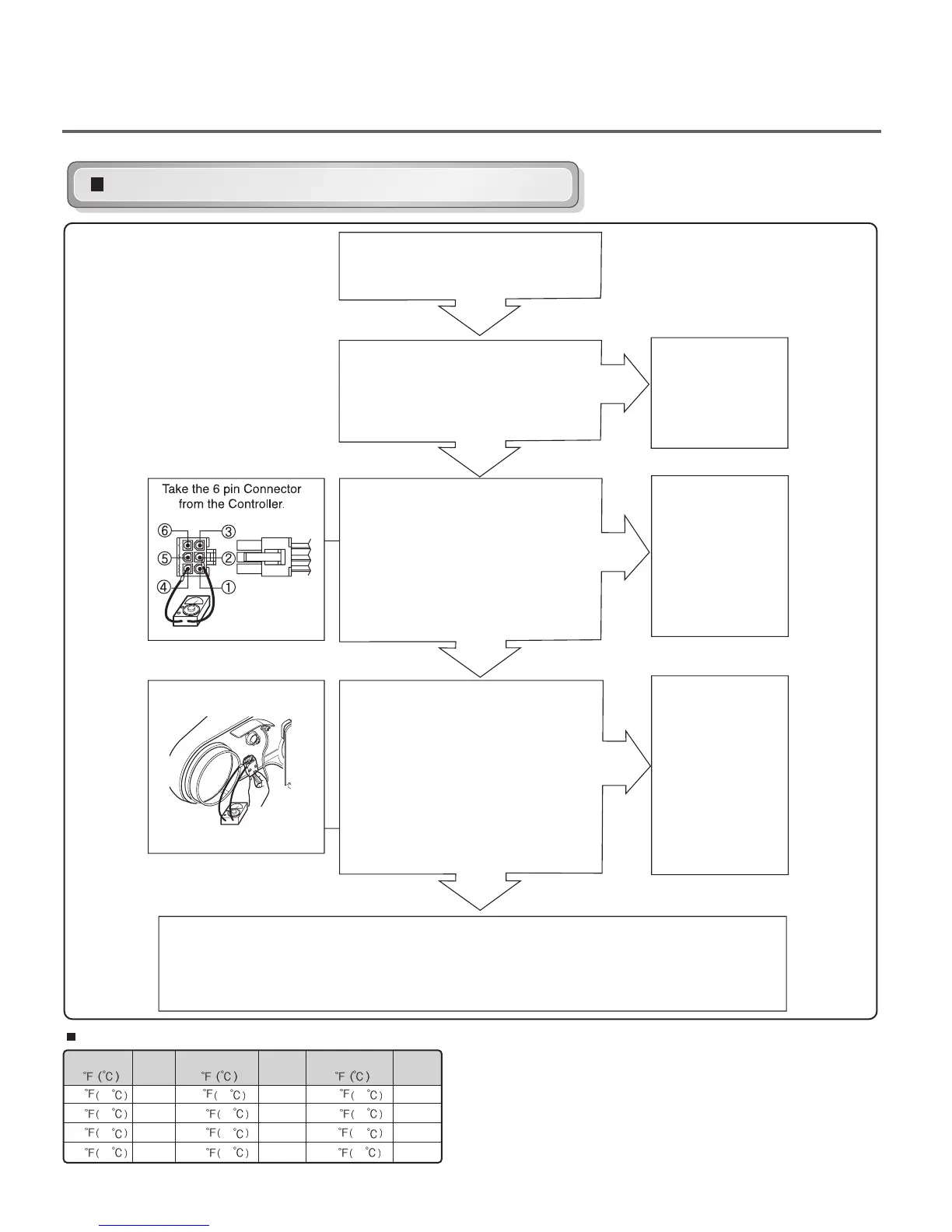

Test 2
Thermistor Test --- Measure with Power Off
Disconnect the thermistor
from the harness connector
and measure the resistance
of the thermistor. Does the
resistance measured match
the temperature of the
thermistor in the chart? (Use
room temperature unless the
thermistor is warm from
running the dryer.)
•Measure resistance of all wires. Resistance should be < 0 Ω.
•Check all thermistor harness connectors for corrosion, loose/bent pins,
broken wires, etc.
•Check all harness wires for cuts, or broken wires.
Measure the resistance between
the NA6-1 (RD) and NA6-4 (BL).
Does the resistance measured
match the temperature of the
thermistor in the chart? (Use
room temperature unless the
thermistor is warm from running
the dryer.)
Disconnect the NA6
connector from the main
PCB.
Measure the resistance
between the NA6-6 (GN) pin
and a chassis ground screw.
Is the resistance <1 Ω ?
•Replace the
main PCB
•Check all wiring
harness
connections,
wires and
ground screws.
•Replace the
thermistor
YES
NO
YES
NO
NO
YES
Thermistor temperature/resistance chart (±5%)
Air TEMP.
50 10
18.0
14.2
11.7
9.3
60
16
70 21
80 27
90 32
100 38
110 43
120 49
130 54
140 60
150 66
160 71
7.7
6.2
5.2
4.3
2.9
3.0
2.5
2.2
Air TEMP. Air TEMP.RES.
kΩ
RES.
kΩ
RES.
kΩ

LG DLE1101W Specifications

General

Color	white
Dryer Capactity	7.3 cubic feet
Number of Cycles	9
Stackable	no
Venting	yes
Temperature Control	yes
Control Type	electronic
Delay Start	no
Child Lock	yes
Cycle Signal	yes
Interior Light	yes
Drying Rack	no
Moisture Sensor Option	yes
Steam	no
Voltage	240 volts
Current	30 amperes

Weight and Dimensions

Depth	28.38 inches
Height	40.16 inches
Width	27 inches
Net Weight	121.7 pounds
