LG DLE1101W Service Manual

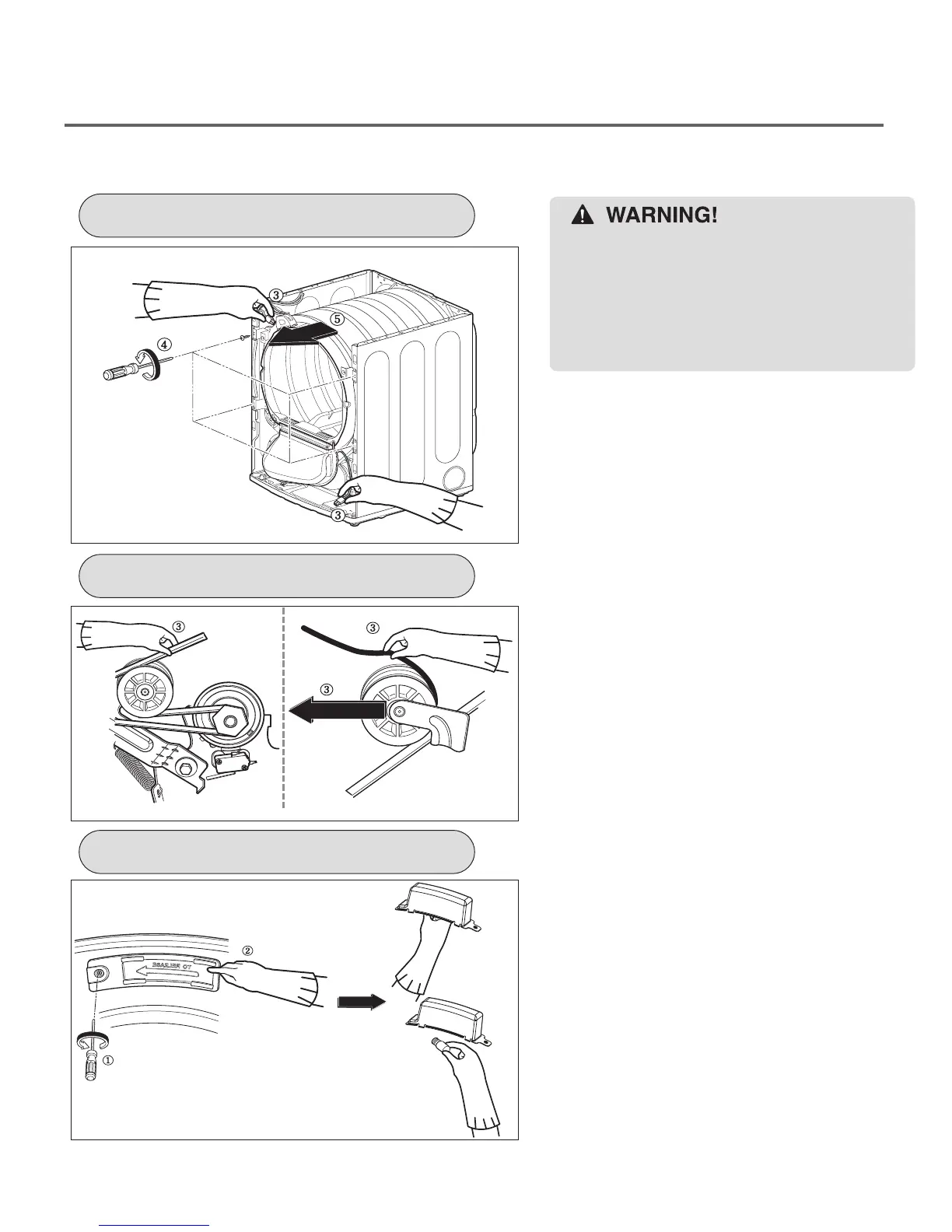

TUB DRUM [FRONT]
DRUM ASSEMBLY
CHANGING THE DRUM LAMP
-1
-2
-1
1.
Disassemble the top plate.
2.
Remove the cabinet cover and tub drum [front ].
3.
Loosen belt from motor and idler pulleys.
4.
Carefully remove the drum.
1.
Disassemble the door.
2.
Hold the lamp shield in place while removing the
screw.
3.
Slide the shield up and remove.
4.
Remove the bulb and replace with a 15
watt, 120 volt, candelabra-base bulb.
5.
Replace the lamp shield and screw.
1.
Disassemble the top plate.
2.
Remove cabinet cover.
3.
Disconnect the door lamp and electrode
sensor connector.
4.
Remove 4 screws.
5.
Disassemble the tub drum [Front ].
33
When you disassemble the Dryer, be sure to
disconnect the dryer from its electrical supply.
Protect your hands and arms from sharp edges
when working. To reduce the risk of personal
injury, adhere to all industry recommended
safety procedures including the use of long
sleeved gloves and safety glasses.

LG DLE1101W Specifications

General

Color	white
Dryer Capactity	7.3 cubic feet
Number of Cycles	9
Stackable	no
Venting	yes
Temperature Control	yes
Control Type	electronic
Delay Start	no
Child Lock	yes
Cycle Signal	yes
Interior Light	yes
Drying Rack	no
Moisture Sensor Option	yes
Steam	no
Voltage	240 volts
Current	30 amperes

Weight and Dimensions

Depth	28.38 inches
Height	40.16 inches
Width	27 inches
Net Weight	121.7 pounds
