LG DLE1101W Service Manual

30
11

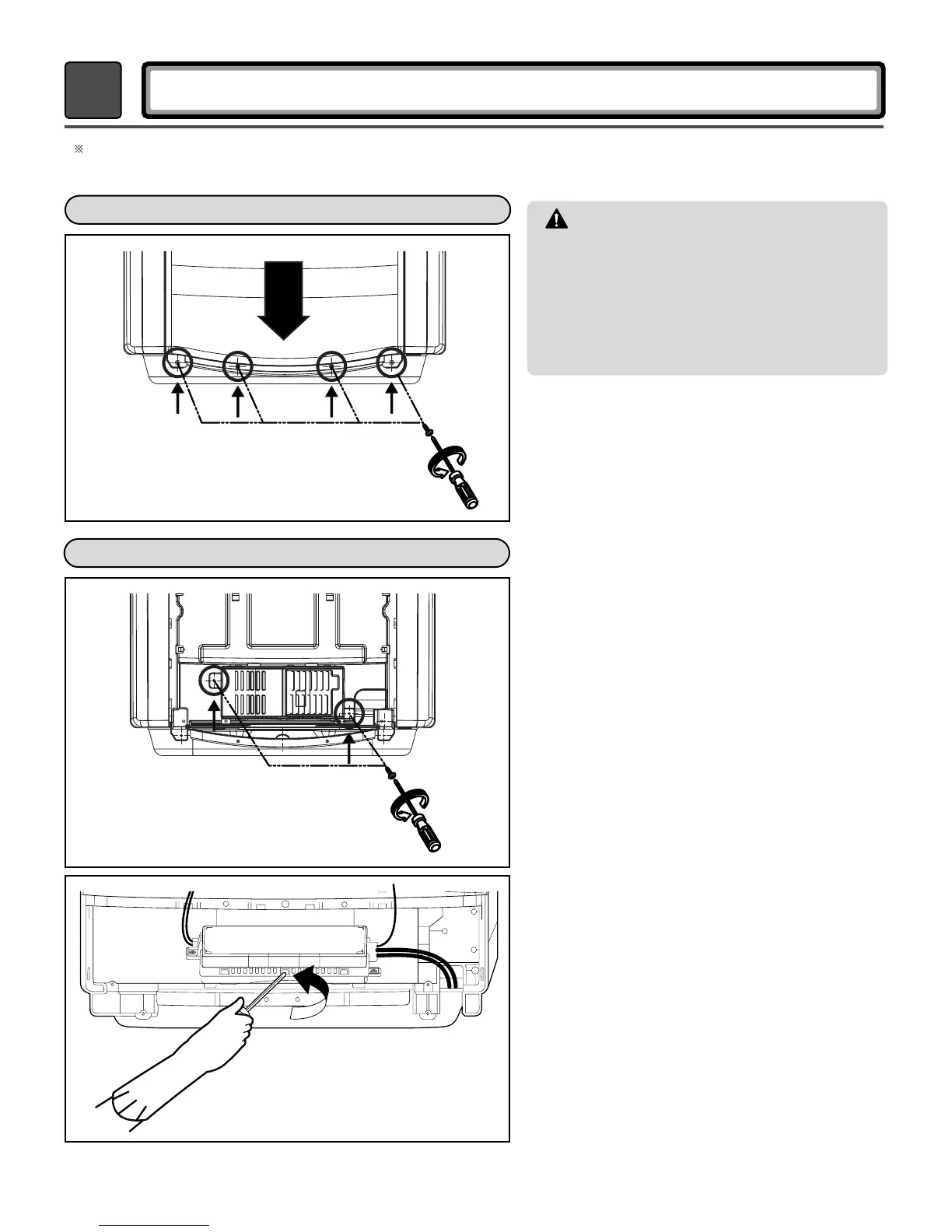

TOP PLATE
MAIN PCB
Disassemble and repair the unit only after pulling out power plug from the outlet.
WARNING!
When you disassemble the Dryer, be sure to
disconnect the dryer from its electrical supply.
Protect your hands and arms from sharp edges
when working. To reduce the risk of personal
injury, adhere to all industry recommended
safety procedures including the use of long
sleeved gloves and safety glasses.
1.
Remove the 2 screws that hold the PCB
box in place.
2.
Slide the PCB box toward the rear of the
dryer and lift out.
3.
With a flat blade screwdriver, press the tabs
on the side of the PCB box and gently pry it
open.
4.
Disconnect the wiring from the PCB board
then remove the PCB board.
DISASSEMBLY INSTRUCTIONS
1.
Remove the 4 screws on the top plate.
2.
Pull top plate backward from the front panel
assembly.
3.
Lift and disassemble the top plate from the top
cover assembly.

LG DLE1101W Specifications

General

Color	white
Dryer Capactity	7.3 cubic feet
Number of Cycles	9
Stackable	no
Venting	yes
Temperature Control	yes
Control Type	electronic
Delay Start	no
Child Lock	yes
Cycle Signal	yes
Interior Light	yes
Drying Rack	no
Moisture Sensor Option	yes
Steam	no
Voltage	240 volts
Current	30 amperes

Weight and Dimensions

Depth	28.38 inches
Height	40.16 inches
Width	27 inches
Net Weight	121.7 pounds
