LG DLE1101W Service Manual

36

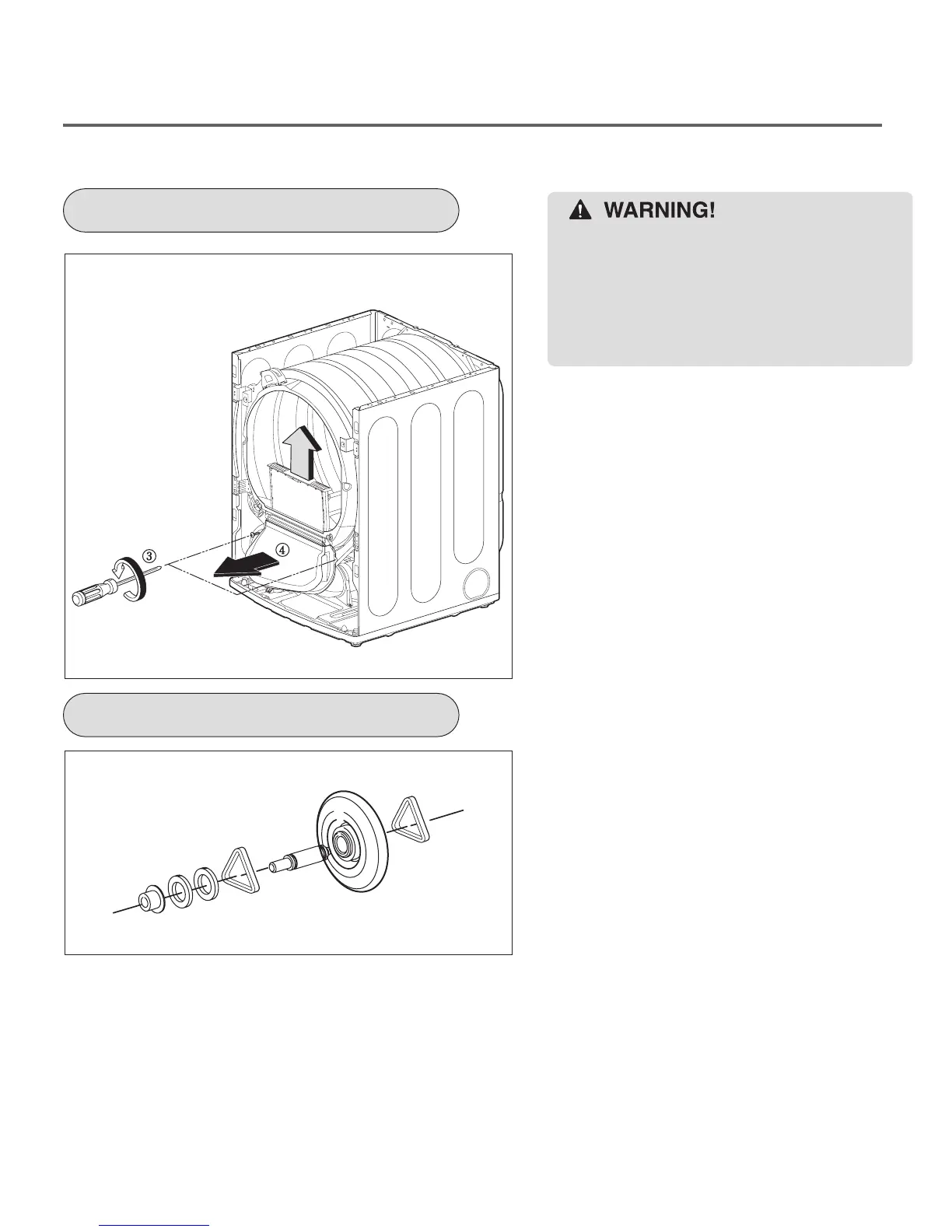

AIR DUCT
ROLLERS
1.
Disassemble the top plate.
2.
Remove the cabinet cover and tub drum
[Front ].
3.
Remove the drum assembly and tub drum [Rear].
4.
Disconnect the air duct from the tub drum [Front ].
5.
Remove the roller from the tub drum [Front ] and
tub drum [Rear ].
When you disassemble the Dryer, be sure to
disconnect the dryer from its electrical supply.
Protect your hands and arms from sharp edges
when working. To reduce the risk of personal
injury, adhere to all industry recommended
safety procedures including the use of long
sleeved gloves and safety glasses.
1.
Disassemble the top plate.
2.
Remove the cabinet cover .
3.
Remove the filter and 2 screws.
4.
Remove the air duct.

LG DLE1101W Specifications

General

Color	white
Dryer Capactity	7.3 cubic feet
Number of Cycles	9
Stackable	no
Venting	yes
Temperature Control	yes
Control Type	electronic
Delay Start	no
Child Lock	yes
Cycle Signal	yes
Interior Light	yes
Drying Rack	no
Moisture Sensor Option	yes
Steam	no
Voltage	240 volts
Current	30 amperes

Weight and Dimensions

Depth	28.38 inches
Height	40.16 inches
Width	27 inches
Net Weight	121.7 pounds
