LG GX / SPN5-W User Manual

2-10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
2
1
AMP+SMPS PCB Assembly
1
2

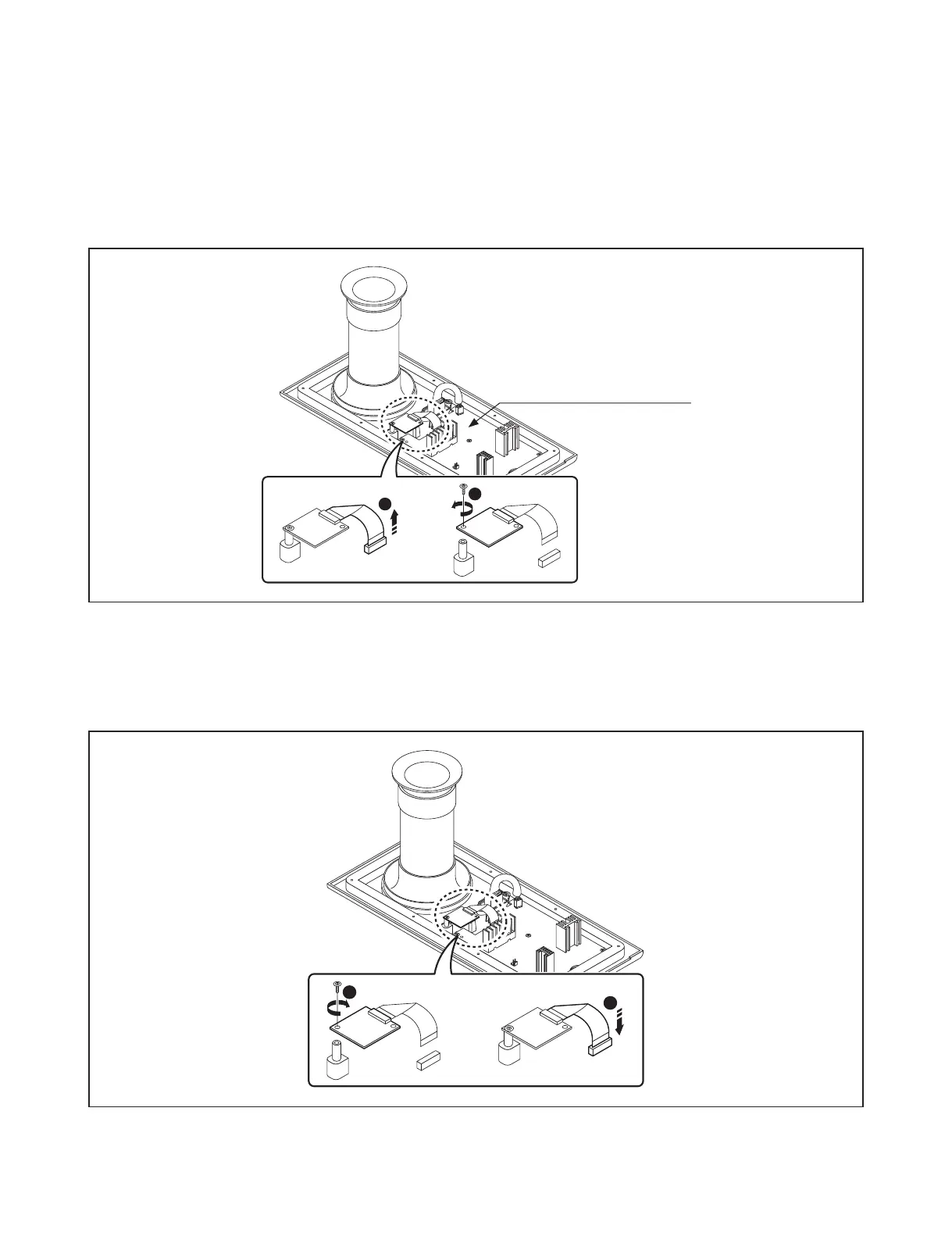

Figure 2-2 (1)
Figure 2-2 (2)
HOW TO DISASSEMBLE THE SUBWOOFER
2-2. WIRELESS Module
1) Disconnect the FFC cable.
2) Remove the EVA sheet (0.15T) covered the WIRELESS module.
w Caution when assembling the WIRELESS Module
1) Attach the EVA gaskets (1.0T) to both sides of the WIRELESS module.
2) Assemble the WIRELESS module into the wireless holder.
