LG GX / SPN5-W User Manual

3-16
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

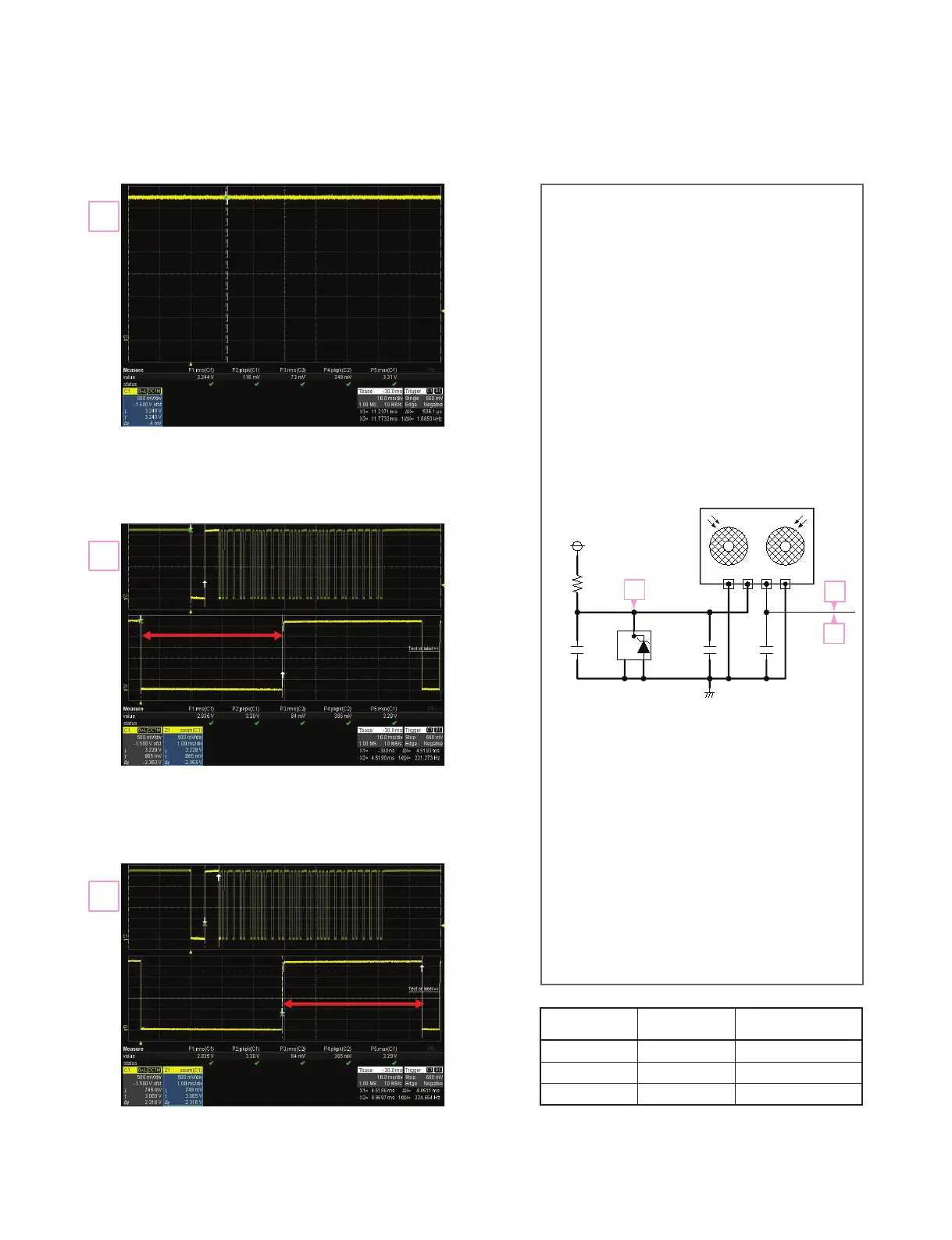

4. REMOTE CONTROL
FIG 4-1. Input Voltage
10
FIG 4-2. Low Timing
11
Item Measured Spec.
Input Level 3.24 V 2.7 ~ 5.5 V
“ Low” Timing 4.52 ms 3.6 ~ 5.04 ms
“ High” Timing 4.45 ms 4.08 ~ 5.04 ms
FIG 4-3. High Timing IR Receiver Spec
12
12
10
11
H=3.2mm ,SMD,Vertical
IR RECEIVER
RF04
100
CF9
100pF
ZDF01
Z02W3.9V
1
2
3
RCF01
AO-R123C7G-LG(T)
GND
VCC
VOUT
GND
CF7
10uF
DGND
3.3VA
CF8
100nF
