10
INSTALLATION INSTRUCTIONS
STEP 11: WATER SUPPLY CONNECTION
1. Before connecting, turn off the water supply.
2. After fitting the elbow into the inlet valve, slide
the flexible stainless-steel water line or copper
tube into the elbow.
3. Tighten the compression nut and make sure
that the line is not kinked or pinched.
STEP 12: ELECTRICAL POWER CONNECTION
1. Before beginning, turn off electrical power to the
unit at the circuit breaker.
2. Remove the junction box cover and then install
the strain relief.
3. Twist wire connectors tightly onto the wires;
then wrap each connection with electrical tape.
4. Check again and make sure that all wires are
connected correctly: black to black, white to
white, green ground wire to green ground wire.
5. Replace the junction box cover.
STEP 13: FINAL CHECK
1. Turn on electrical power.
2. Turn on house water supply.
3. Run the dishwasher on a normal cycle to verify
proper operation and check for leaks.
4. Replace the toekick panel.

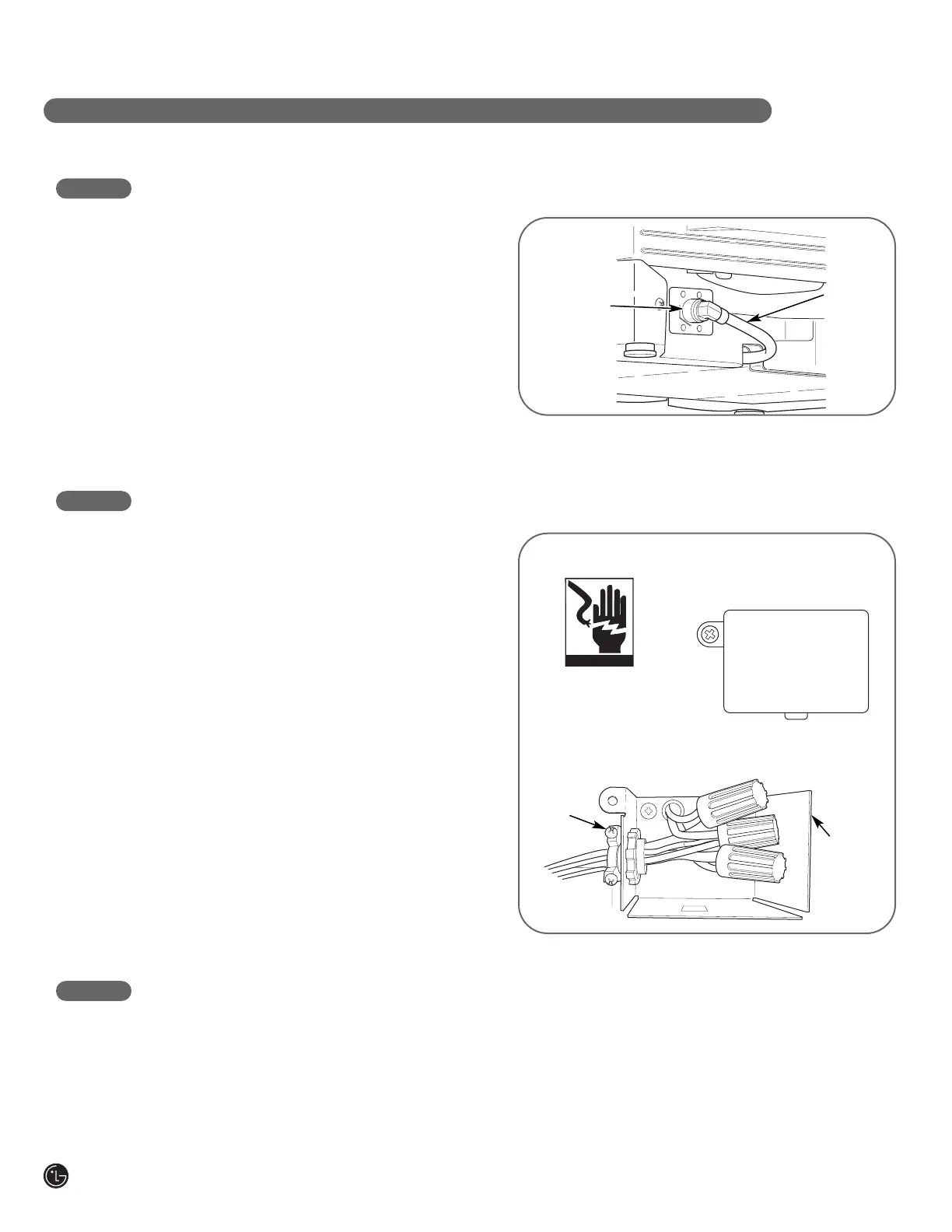

FIG. 16
FIG. 17
Junction box cover
Junction
box
Strain
relief
Elbow
Water
supply
line
CAUTION
Verify that the black wire is hot (120V). If not, or
if you are unsure of the power supply, have it
checked by a licensed electrician.
