INSTALLATION INSTRUCTIONS

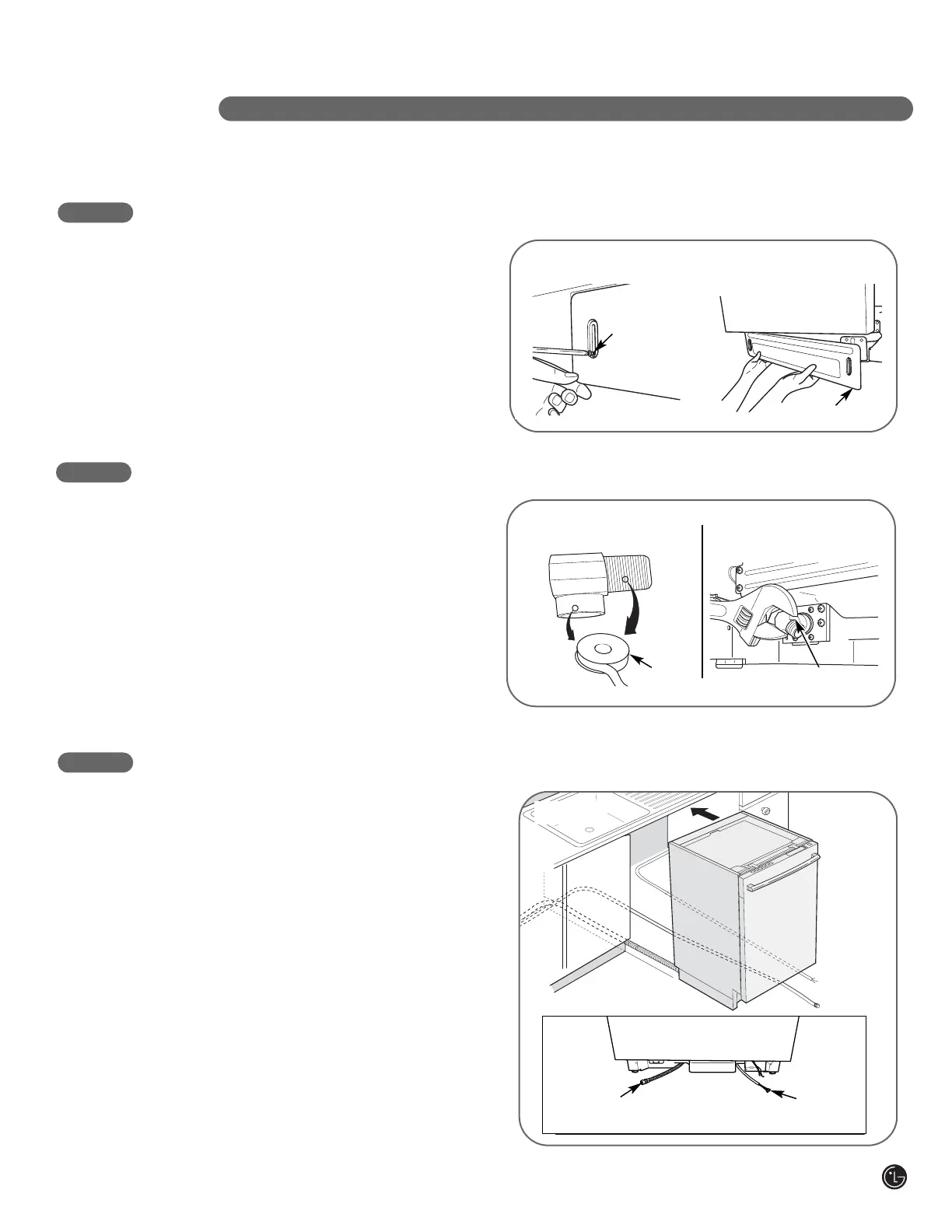

STEP 5: REMOVE TOE KICK
• Remove the two screws attaching the lower
cover to the dishwasher.
• Remove the lower cover from the base.
• Remove the insulation pad from behind the
access panel.
STEP 6: INSTALL 90° ELBOW
• When installing the elbow into the inlet valve,
Teflon
®
tape or pipe joint compound should be
used to avoid water leaks.
• Install a 90° elbow onto the water valve.
STEP 7: SLIDE DISHWASHER INTO CABINET
• Slide the dishwasher carefully into the cabinet
opening.
• Make sure the drain hose inside the cabinet is
not kinked or pinched.
• Make sure the water supply line and electrical
supply are routed through the channels under
the dishwasher as shown in Fig. 10.
FIG. 9
FIG. 11
These installation instructions are intended for use by Qualified lnstallers.
FIG. 10
Teflon
tape
Elbow
Mounting
screw
Toe kick
Electrical
supply
Water supply
line
Front of
dishwasher
