INSTALLATION INSTRUCTIONS
1. If the end of the drain hose does not fit the drain
line, use a heat and detergent resistant adapter
(not supplied). One may be obtained from a
local plumbing shop.
2. The 2 typical connections are shown in Figs. 14
and 15. To prevent siphoning, one of the
following connections should be used.
DRAIN REQUIREMENTS
• Follow local codes and ordinances.
• Do not exceed 10 ft. (3 m) distance to drain.
• Do not connect drain lines from other devices
to the dishwasher drain hose.

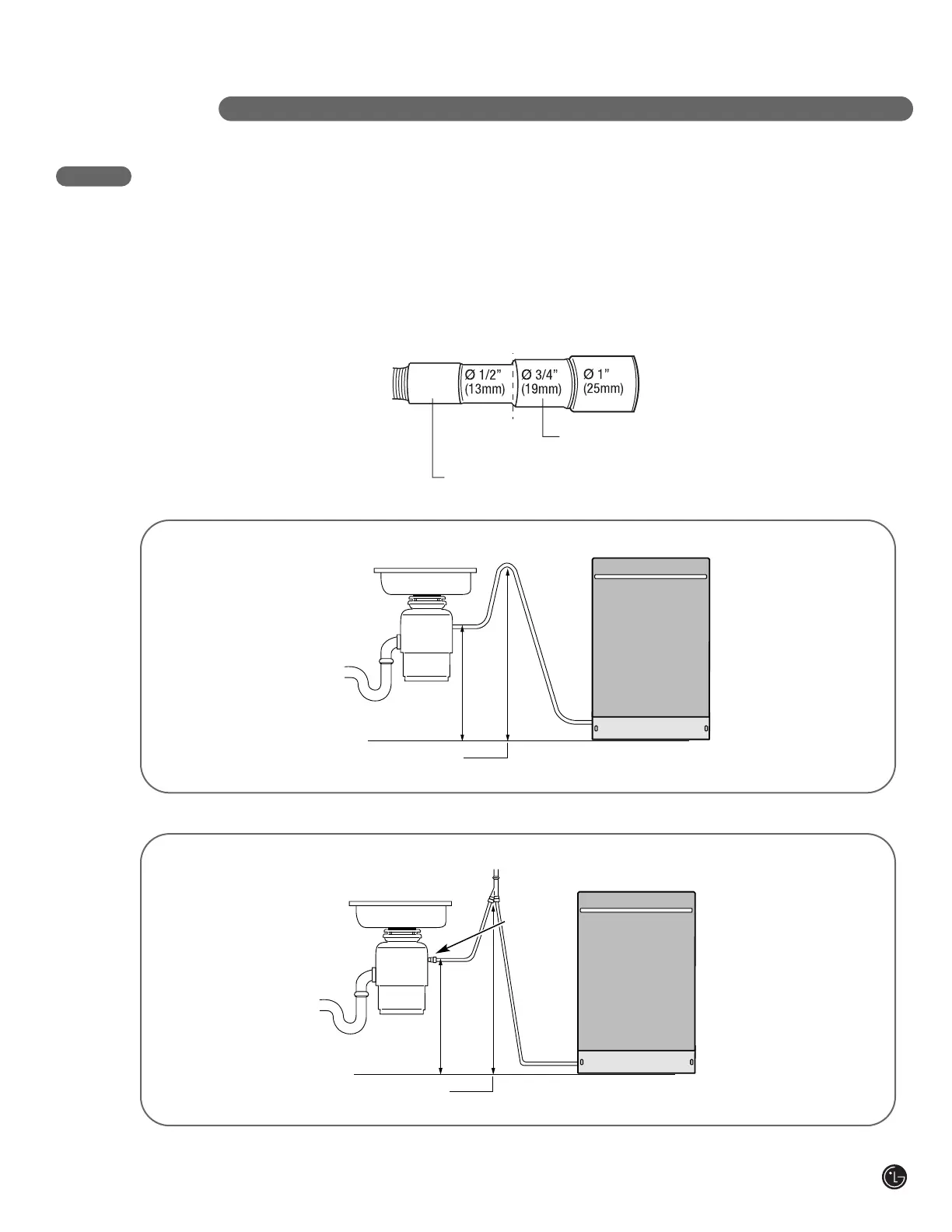

STEP 10: DRAIN LINE CONNECTION
CONNECTION TO DISPOSER OR WASTE TEE
FIG. 15
FIG. 14
CONNECTION TO AIR GAP
For air gap connections, cut off drain hose at dotted line
For disposal or waste tee connections
Sink
Dishwasher
Drain
Hose
Drain
Hose
Sink
Dishwasher
Air Gap
Rubber
Connector
NOTE: If the drain connection is less than 20 inches above the floor, an air gap MUST be
installed to prevent siphoning.
Min. 20" (508 mm)
Min. 20" (508 mm)
Min. 30" (770 mm)
Min. 40" (1000 mm)
Min. 30" (770 mm)
Min. 40" (1000 mm)
