8
INSTALLATION INSTRUCTIONS

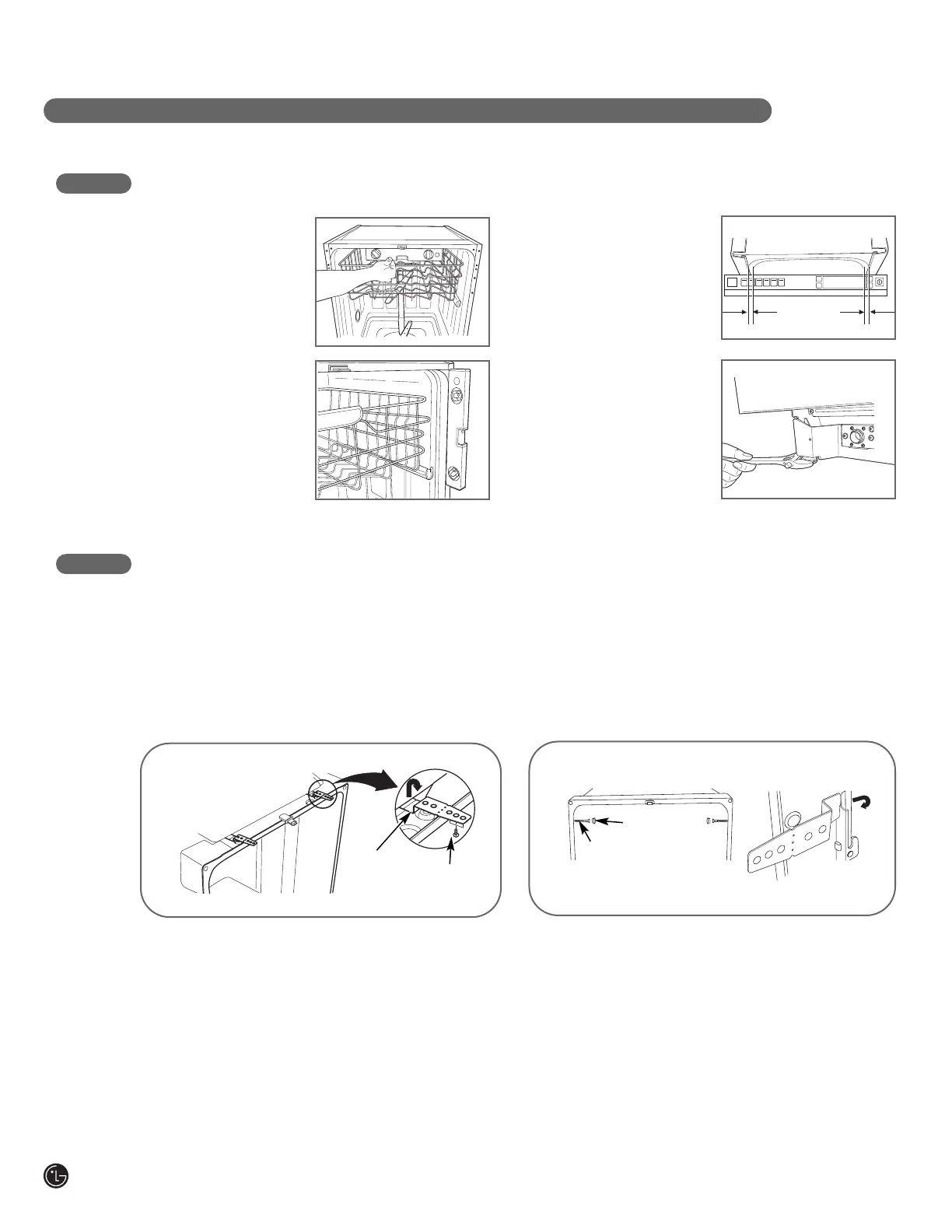

STEP 8: LEVEL DISHWASHER
1. Make sure that the
dishwasher is level.
Place level on the top
front opening of the
tub from side to side.
2. Make sure that the
dishwasher is plumb.
Place level on the
front side of the
cabinet.
3. Make sure that the
gap between the door
and the tub is equal
on both the left and
right sides.
4. If the dishwasher is
not level or the gap on
each side is not equal,
use a wrench to adjust
the 4 leveling feet up
or down until the
dishwasher is level
and the gap on each
side is equal.
STEP 9: SECURE DISHWASHER TO THE COUNTERTOP
For countertops made of wood or that will not be damaged by drilling, use Method 1.
For countertops made of granite, marble, or other materials that could be damaged by drilling, use
Method 2.
FIG. 12
FIG. 13
METHOD 1 (Fig. 12)
1. Insert the installation brackets into the slot.
2. Bend the brackets to secure them to the
dishwasher tub.
3. Using the provided screws, secure the
dishwasher to the countertop through the holes
in the bracket.
METHOD 2 (Fig. 13)
1. Insert the installation brackets into the slot.
2. Bend the brackets to secure them to the
dishwasher tub.
3. Cut the brackets along the dotted line.
4. Remove the plastic caps on the mounting
bracket access holes.
5. Drive a wood screw through the mounting
bracket and into the cabinet frame. (The
mounting bracket is preinstalled on the side
of the tub.)
6. Reinstall the plastic caps.
IMPORTANT TIPS
• Cover the filter hole with towels to prevent screws from falling down into the pump.
• Use of a magnetic driver is recommended.
Installation
bracket
Screw
Screw
Cap
